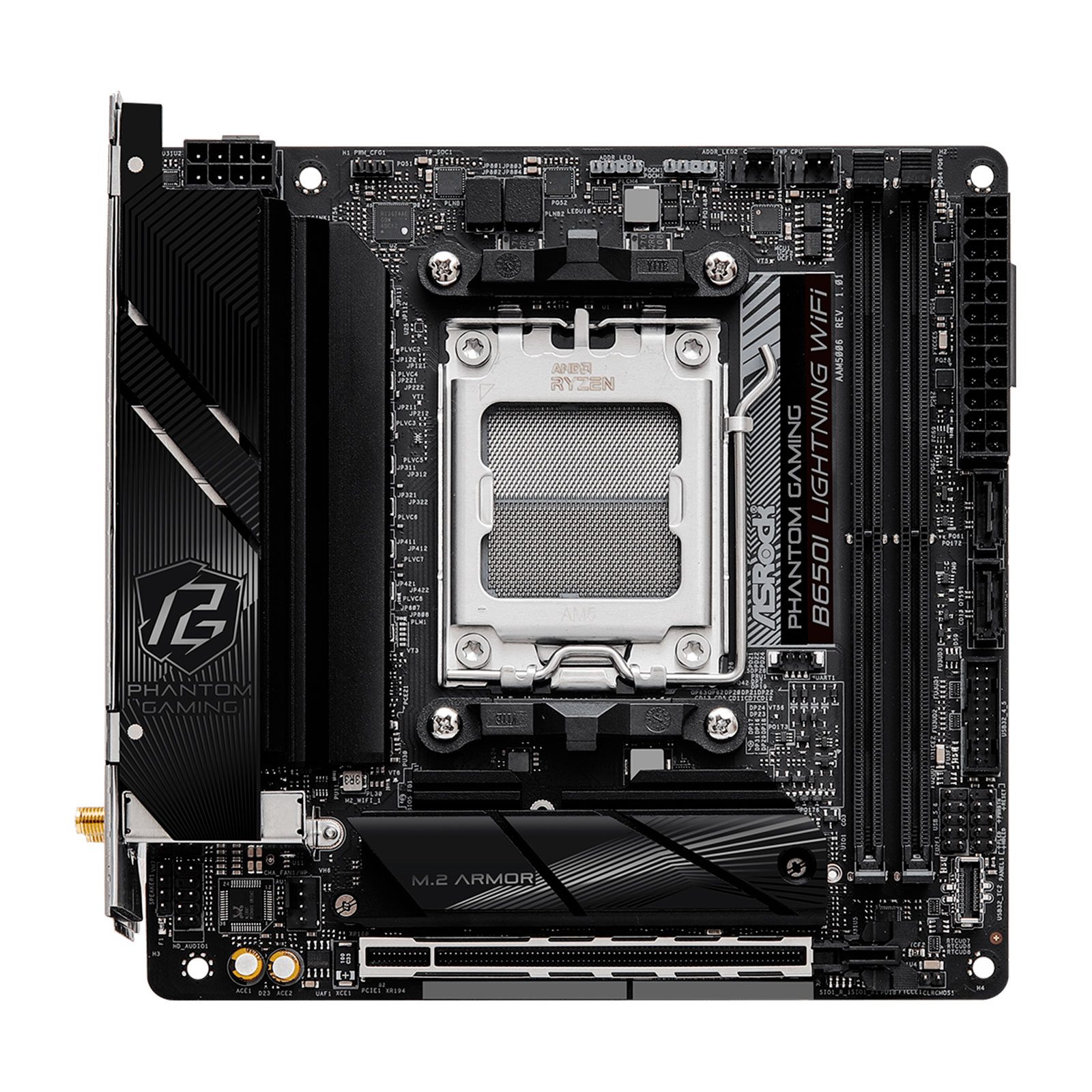

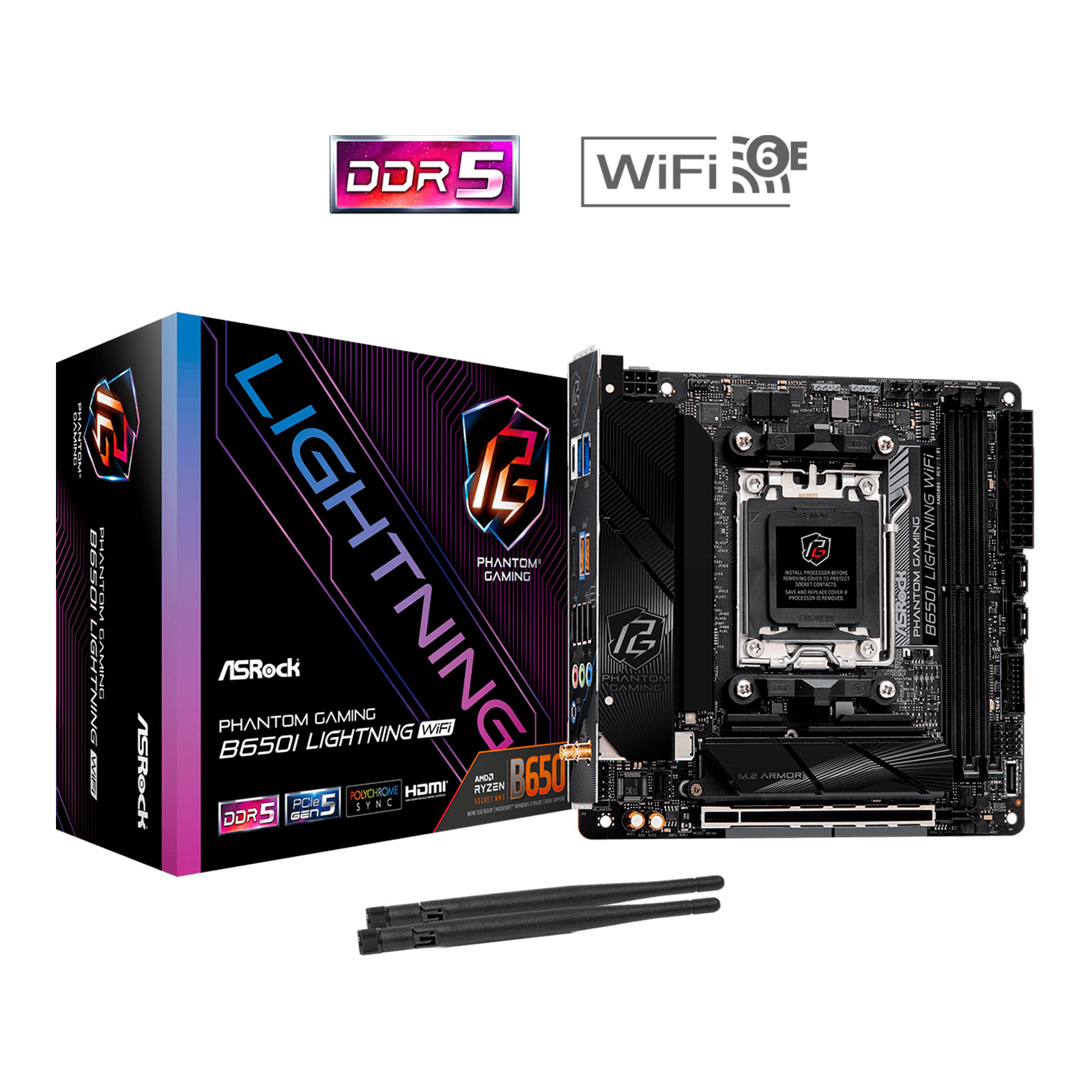

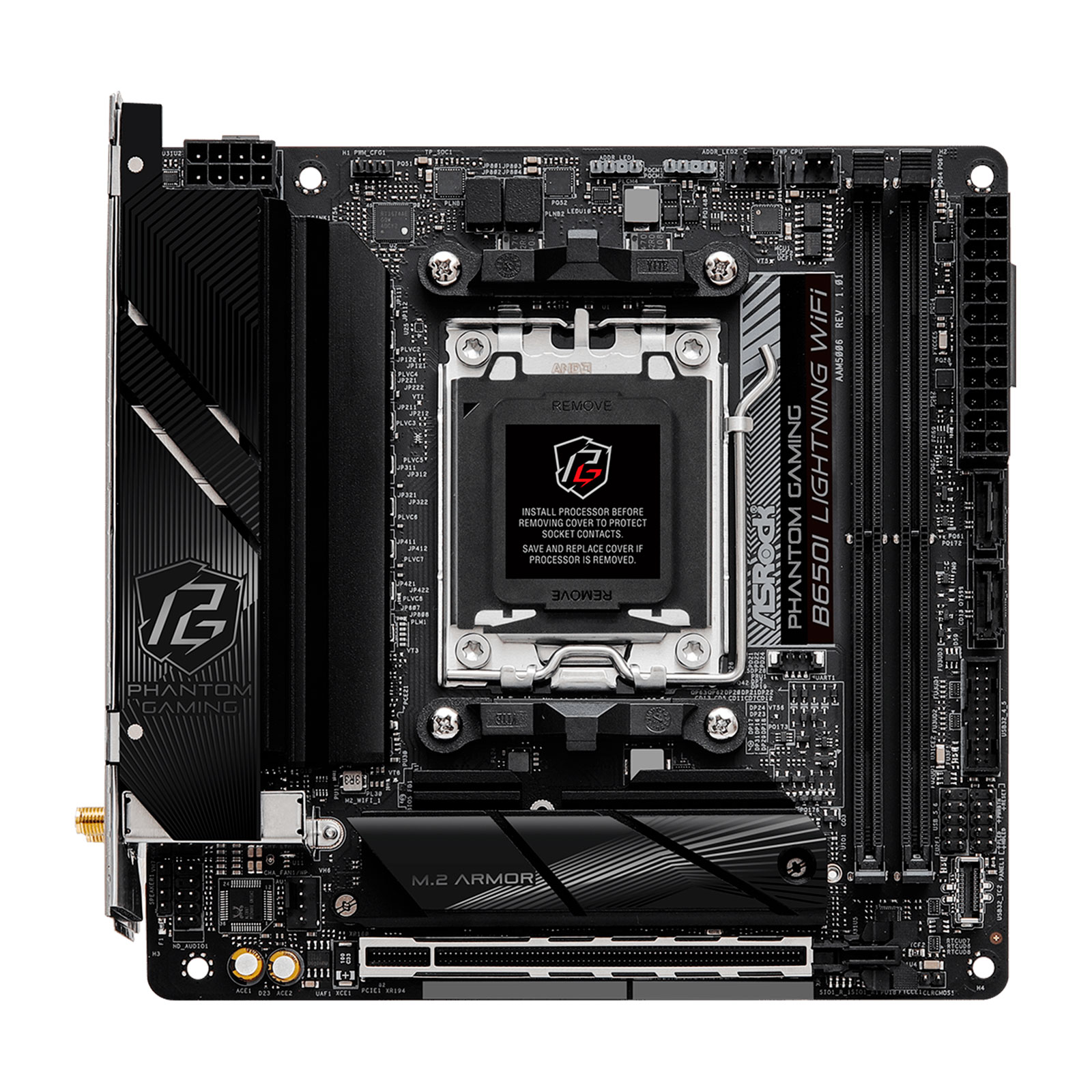

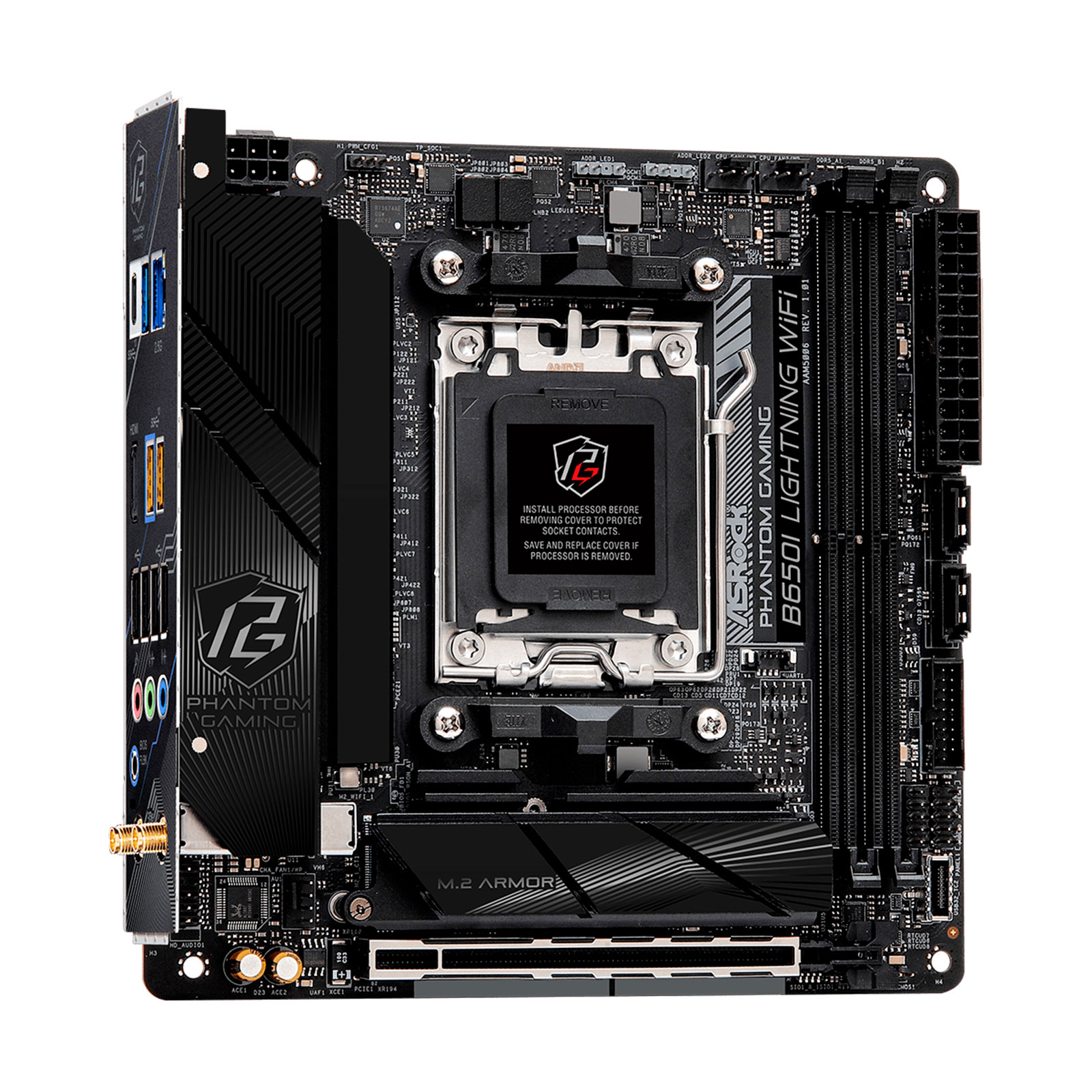

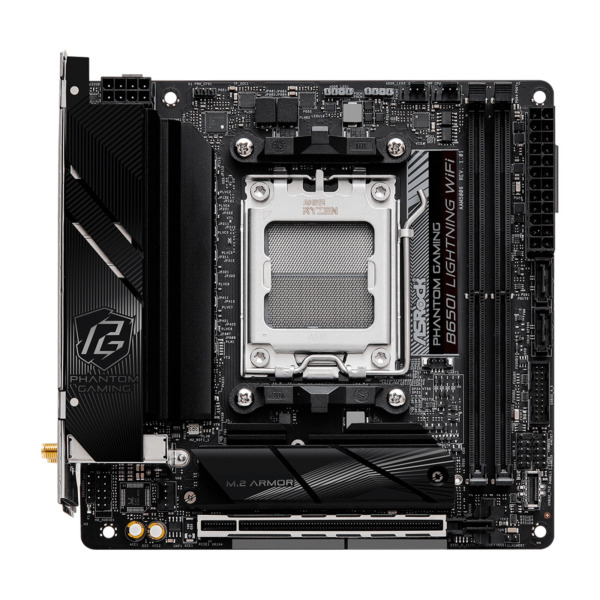

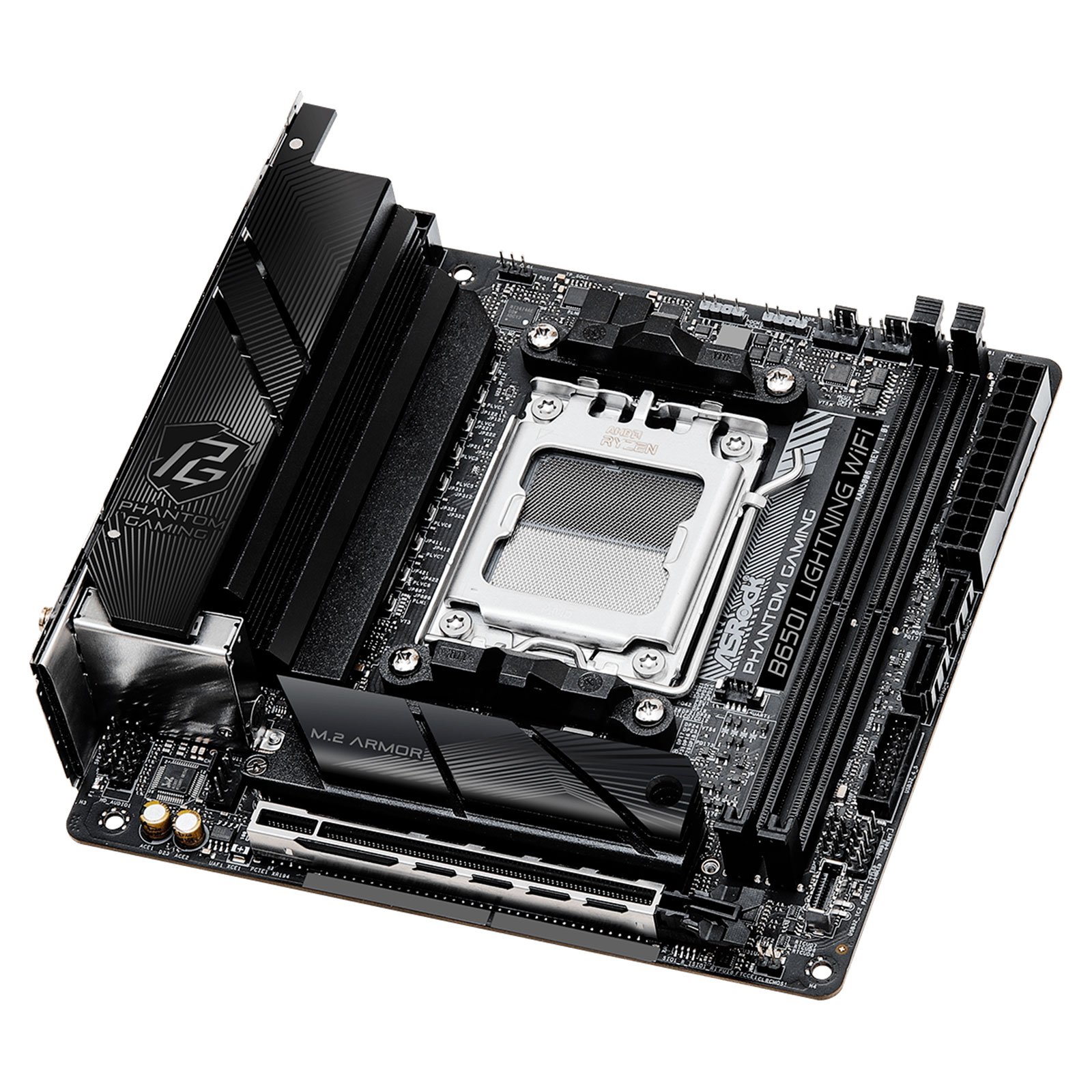

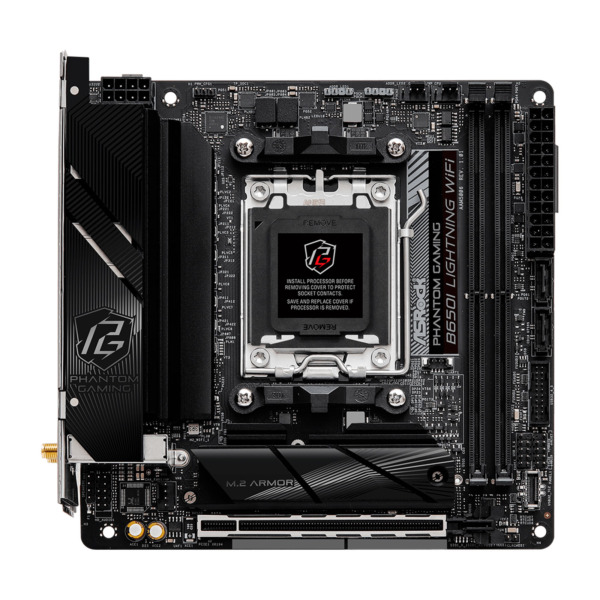

ASROCK B650I LIGHTNING WIFI

Reinforced Steel Slot
[PCIe 4.0 Version]

DDR5 EXPO & XMP Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details.
All B650 motherboards are built with 8-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7200MHz
and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel^® XMP capable and overclocking
can be made so affordable, satisfying and absolutely no sweat at all.

Ultimate Gaming Experience

●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming.
Each sound is properly positioned in 360° on a radar for a full immersion during the game.

●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF.
Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them.
Nahimic measure and improve to optimize our technology and offer you the best experience.

PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation,
with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Phantom Gaming 2.5 Gb/s LAN

Wi-Fi 6E 802.11ax

BIOS Flashback

Get the most convenient BIOS flashing with just a simple click.
Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

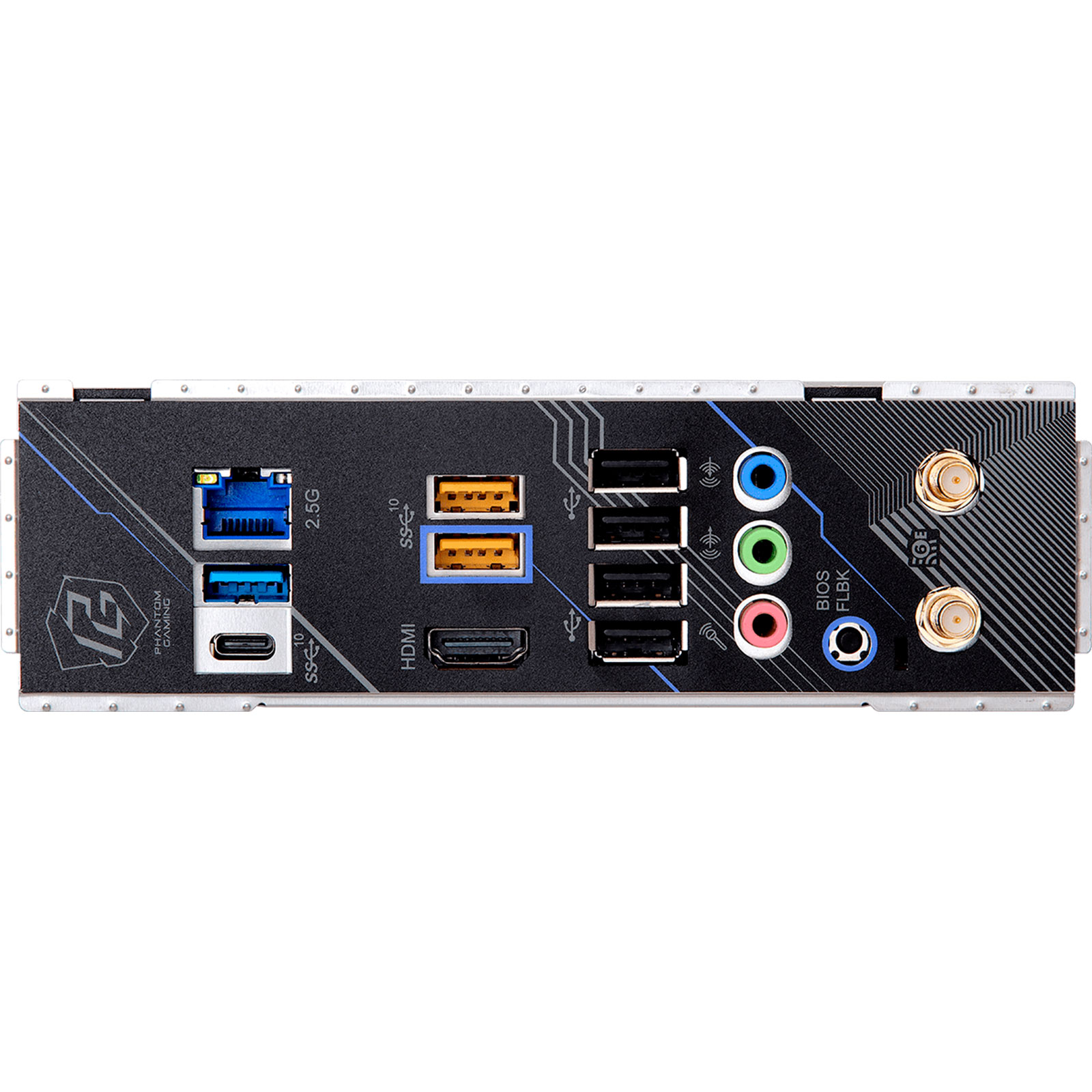

Flexible Integrated IO Shield

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes.
We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

• Unique Feature
  Superb Productivity
  – PCIe Gen5 (M.2)
  – Dual Channel DDR5
  Rock-Solid Durability
  – 8+2+1 Power Phase, 60A Dr.MOS with Enlarged Heatsink Armor
  – Pre-Installed I/O Shield
  – Flexible Integrated I/O Shield Ultrafast Gaming
  – 2.5G LAN, 802.11ax Wi-Fi 6E Module
  – ASRock Lightning Gaming Ports
  EZ Update
  – BIOS Flashback Button
  – ASRock Auto Driver Installer
• CPU
  – Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*

• Chipset
  – AMD B650
• Memory
  – Dual Channel DDR5 Memory Technology
  – 2 x DDR5 DIMM Slots
  – Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
  – Max. capacity of system memory: 128GB
  – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

  *Please refer to Memory Support List for more information.
• BIOS
  – 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• Audio
  – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  – Nahimic Audio
• LAN
  – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  – Dragon RTL8125BG
  – Supports Phantom Gaming LAN Software
  – Smart Auto Adjust Bandwidth Control
  – Visual User Friendly UI
  – Visual Network Usage Statistics
  – Optimized Default Setting for Game, Browser, and Streaming Modes
  – User Customized Priority Control
• Wireless LAN
  – 802.11ax Wi-Fi 6E Module
  – Supports IEEE 802.11a/b/g/n/ac/ax
  – Supports Dual-Band 2×2 with extended 6GHz band* support
  – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  – Supports Bluetooth 5.2 + High speed class II
  – Supports MU-MIMO
