DDR5 XMP and EXPO support
This motherboard is made of low-loss materials, and enthusiasts can enjoy the increased overclocking
performance of DDR5 memory by activating the previously tested profiles. Make sure that the memory modules are compatible with Intel XMP/AMD EXPO™/
and that overclocking can be done affordably, satisfactorily and absolutely easily.®
High-speed M.2 solution
PCIe Gen5 Blazing M.2
it is capable of running at twice the speed compared to the previous third generation, offering an ultra-fast data transfer experience.
Easy-to-install and easy-to-use design
In addition to the tool-free design of the M.2 SSD on the motherboard, ASRock takes it a step further by introducing this industry-first M.2
heatsink quick release mechanism to the motherboard. The user-friendly and tool-free design helps make the installation of M.2 SSDs very easy and simple.
Enlarged M.2 heatsink
M.2 XXL heatsink
The extra-large aluminum alloy M.2 heatsink effectively improves heat
dissipation to keep ultra-fast M.2 SSDs as cool as possible, allowing for greater stability without compromising performance.
Enhanced USB4 Type-C
and easy level of connection for work or home. It allows an ultra-fast data transfer speed of 40 Gbps.
Dragon 2.5 Gb/s LAN
content creators, online gamers, and high-quality streaming media.
Increase network performance by up to 2.5x bandwidth compared to standard gigabit Ethernet,
you’ll enjoy a faster, uncompromised connectivity experience for gaming, file transfers, and backups.

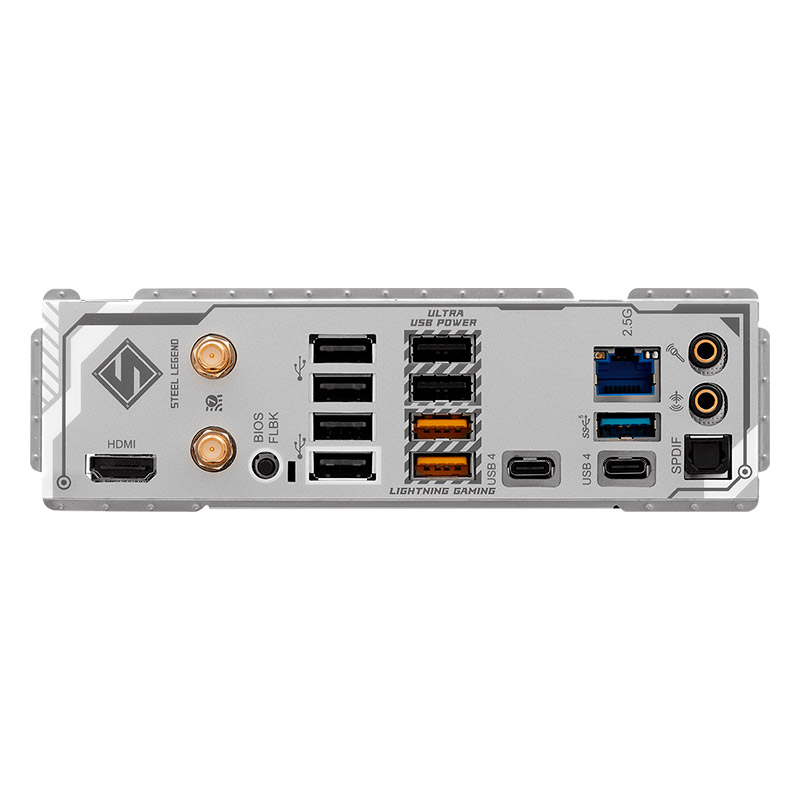

Lightning Gaming Ports
Aimed at die-hard gamers and enthusiasts! Lightning Gaming ports are obtained from two different
controller interfaces that allow gamers to connect their high-speed mice and keyboards with the lowest latency and get the best performance.
-
-
Special FeaturesUnmatched
Productivity – PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5
– USB4 Type-C Ports (40 Gb/s)
Hard and rock
solid – 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC with Larger
Heatsink Cover – Integrated
flexible I/O panel – 20K long-lasting black caps (High-quality, conductive polymer capacitors.)
Ultra-Fast
Connectivity – 2.5G LAN, 802.11be Wi-Fi 7 Module
– ASRock Lightning
Gaming Ports EZ
Updater – BIOS
Flashback Switch – ASRock Driver Installer Automatic
Driver Installer EZ
Troubleshooter – ASRock Checker Status Message -
CPU
– Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
*Availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. -
Chipset– AMD X870
-
Memory– Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM
slots – Supports DDR5 ECC/non-ECC memory, un-buffered up to 8000+(OC)*
– Maximum system memory capacity: 256GB
– Supports Extreme Memory Profile (XMP) and Extended Profiles for Overclocking (EXPO) memory modules** Please refer to the supported memory list on the ASRock website for more information. -
BIOS– 256Mb AMI UEFI Legal BIOS with GUI support
-
GraphicsIntegrated AMD RDNA™ graphics (Current support may vary depending on CPU)
– 1 x HDMI 2.1 TMDS/FRL Compatible with 8G, Supports HDR, HDCP 2.3 and max. Resolution up to 4K 120Hz
– 2 x USB4, Supports HDCP 2.3 and max. Resolution up to 8K 30Hz** Only the CPU’s embedded graphics can be displayed through USB4 ports. If you want to view on a Type-C monitor, use AM5 Ryzen™ 9000, 8000, and 7000 processors with integrated graphics. -
Audio– 7.1 CH HD audio with content protection (Realtek ALC4082 Audio Codec)
– Individual PCB layers for the L/R
audio channel – Direct streaming technology on the front headphone port (supports headphones up to 600 Ohms)
– Nahimic Audio -
LAN– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Auto-tuning intelligent bandwidth control
– User-friendly
visual UI – Visual
network usage statistics – Optimized default settings for Game, Browser and Streaming
modes – User-customized priority control
-
-
Wireless LAN– 802.11be 2×2 Wi-Fi 7 Module
– Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
– Supports 2.4GHz/5GHz/6GHz* frequency band
– Supports 160MHz channel bandwidth with 6GHz* frequency band
– 1 antenna to support diversity technology 2 (transmission) x 2 (reception)
– Supports Bluetooth 5.4
– Supports MU-MIMO
