SLEEK FINISHING
Anodized gun-metal black with brushed aluminum surface finish to the top cover for a more refined look
PRECISE AIR FLOW WITH NICKLE BLACK
The nickel plated jet black also enhances radiation cooling performance
DIRECT CONTACT TECHNOLOGY
4 heat pipes with exclusive Direct Contact Technology providing effective and excellent heat dissipation

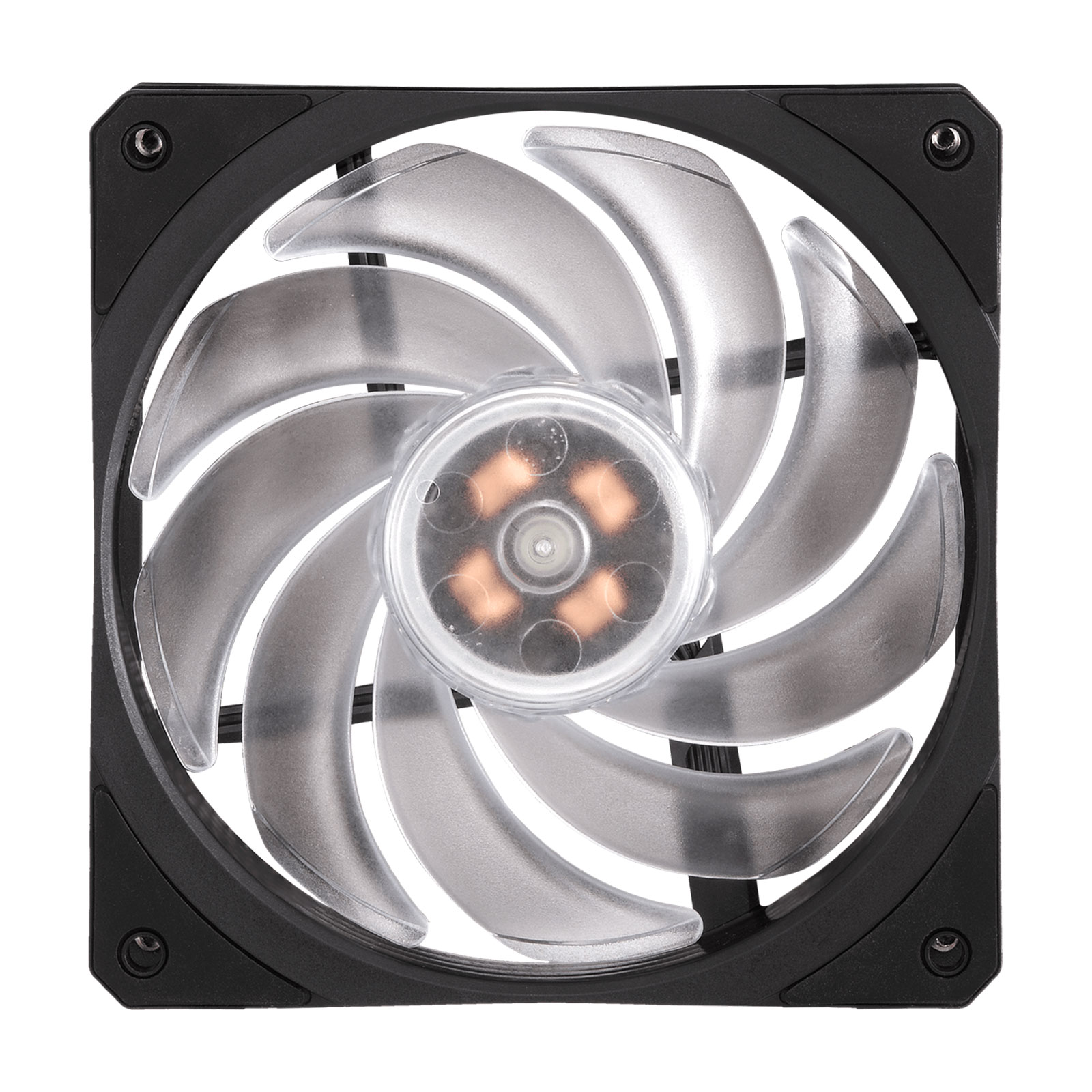

THE NEW SF120R RGB FAN
Is certified to sync with Motherboard RGB software or controlled by our controller.
The wide speed range can be fine-tuned for maximum cooling performance or silent operation.
OPTIONAL PUSH-PULL FAN CONFIGURATION
To avoid dynamic losses and help accelerate heat exhaust, an additional fan helps pulling heat away faster from heatsink.
RGB IN THE PALM OF YOUR HAND WITH INCLUDED WIRED RGB CONTROLLER
A compact size RGB LED controller that allows you to easily customize your RGB devices without the need for either an RGB capable motherboard or software.
You can have the colorful rig you’ve always wanted with just the touch of a button.
UNIVERSAL MOUNTING KITS DESIGN
The improved universal bracket design ensures easy
and worry free installation on all platforms.
CPU Socket LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1156, LGA1155, LGA1366, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
Dimensions (L x W x H) 120 x 79.6 x 158.8 mm / 4.7 x 3.1 x 6.3 inch
Heat Sink Material 4 Heat Pipes, Aluminum Fins, Direct Contact
Fan Dimensions (L x W x H) 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
Fan Quantity 1 PC
Fan Speed 650-2000 RPM (PWM) ± 10%
Fan Airflow 59 CFM (Max)
Fan Air Pressure 2.1 mmH2O
Fan MTTF 160,000 Hours
Fan Noise Level 8 – 30 dBA
Fan Power Connector 4-Pin (PWM)
Fan Rated Voltage 12 VDC
Fan Rated Current 0.16A
Fan Safety Current 0.37A
Fan Power Consumption 1.92W
Cooler Type Air Cooler
Series Hyper
Heatpipes 4
