HYTE Revolt 3 Premium ITX Small Case White
- The HYTE Revolt 3 ITX Case is a small form factor case with user friendly design, high degree of compatibility and carrying handle for portability at a mainstream price.
- Compatible with any standard layout ITX form factor motherboard
- Easily removable external panels on all sides of the case give users 360-degree accessibility to components and wiring
- Features 2x USB 3.2 Gen 1 Type-A ports, a headset combo jack, and USB 3.2 Gen 2 Type-C port.
$139 exc. VAT
Revolt 3
Premium ITX Small Form Factor Case
We designed the REVOLT 3 to be the ITX case you’ll take anywhere, and upgrade for years.
With an integrated handle and tool-free side panels, you’ll love how easy it is to build in, modify, and travel with.
- Supports most full-size graphics cards, no riser cable needed.

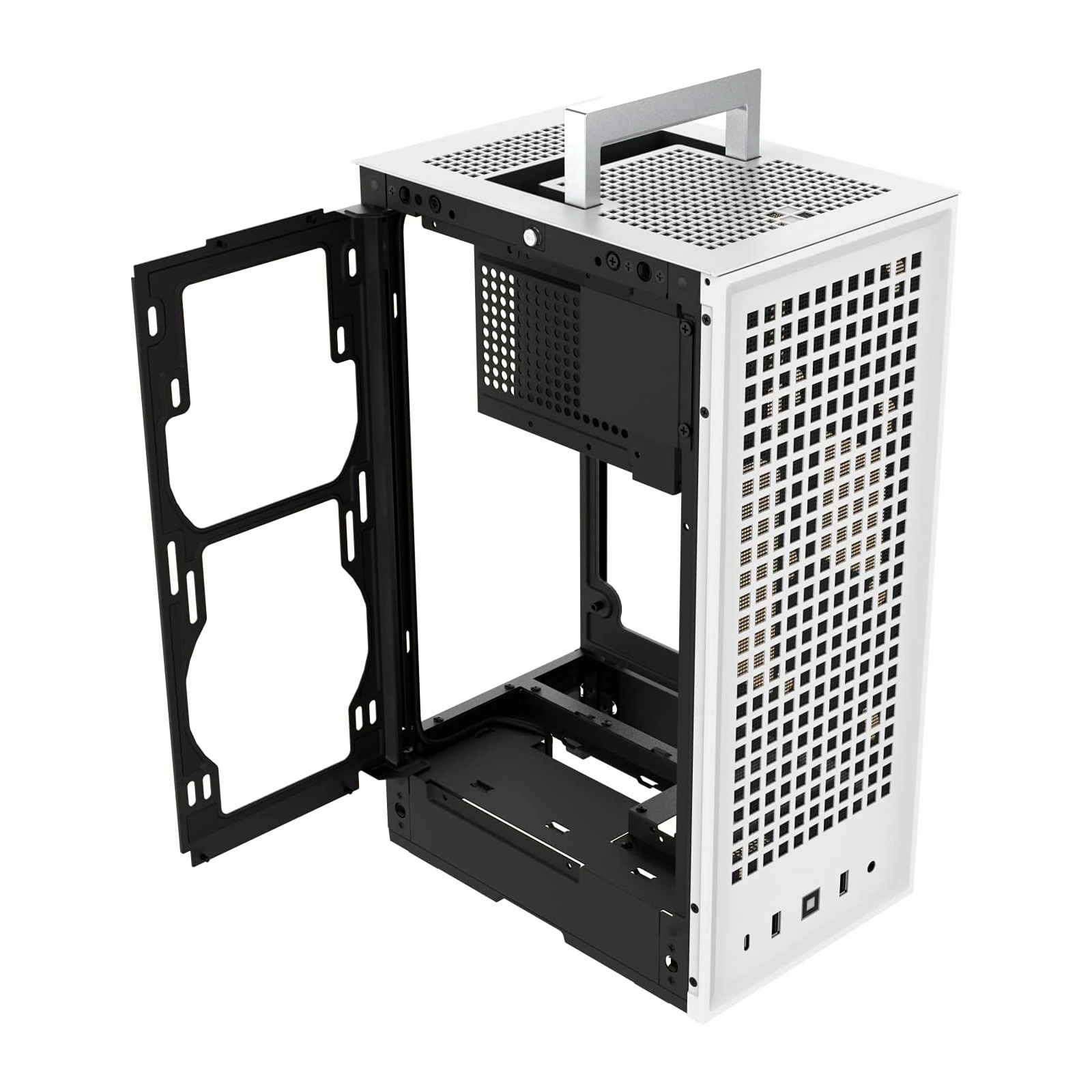

- Tool-less side panels: pop them off for effortless access to build and upgrade

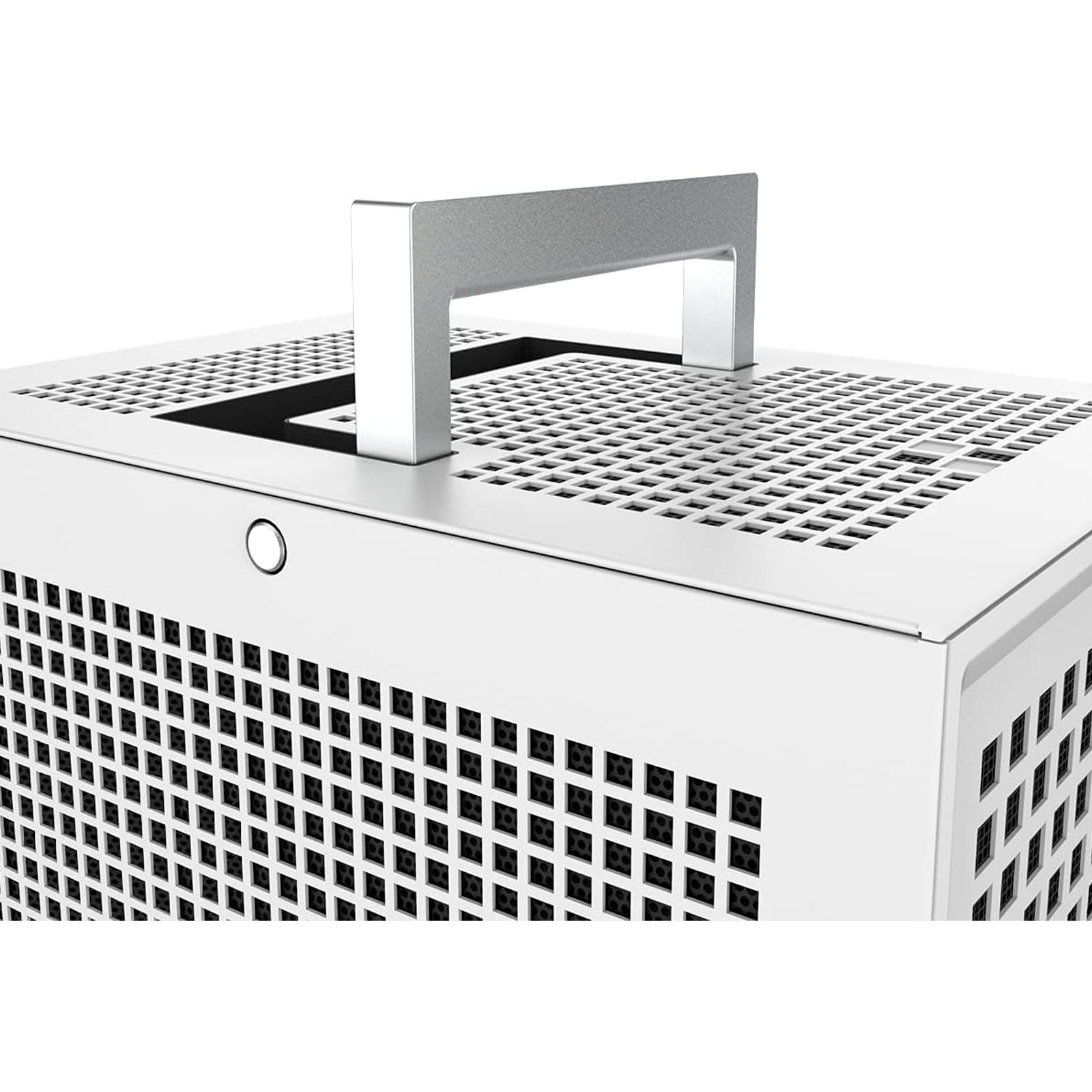

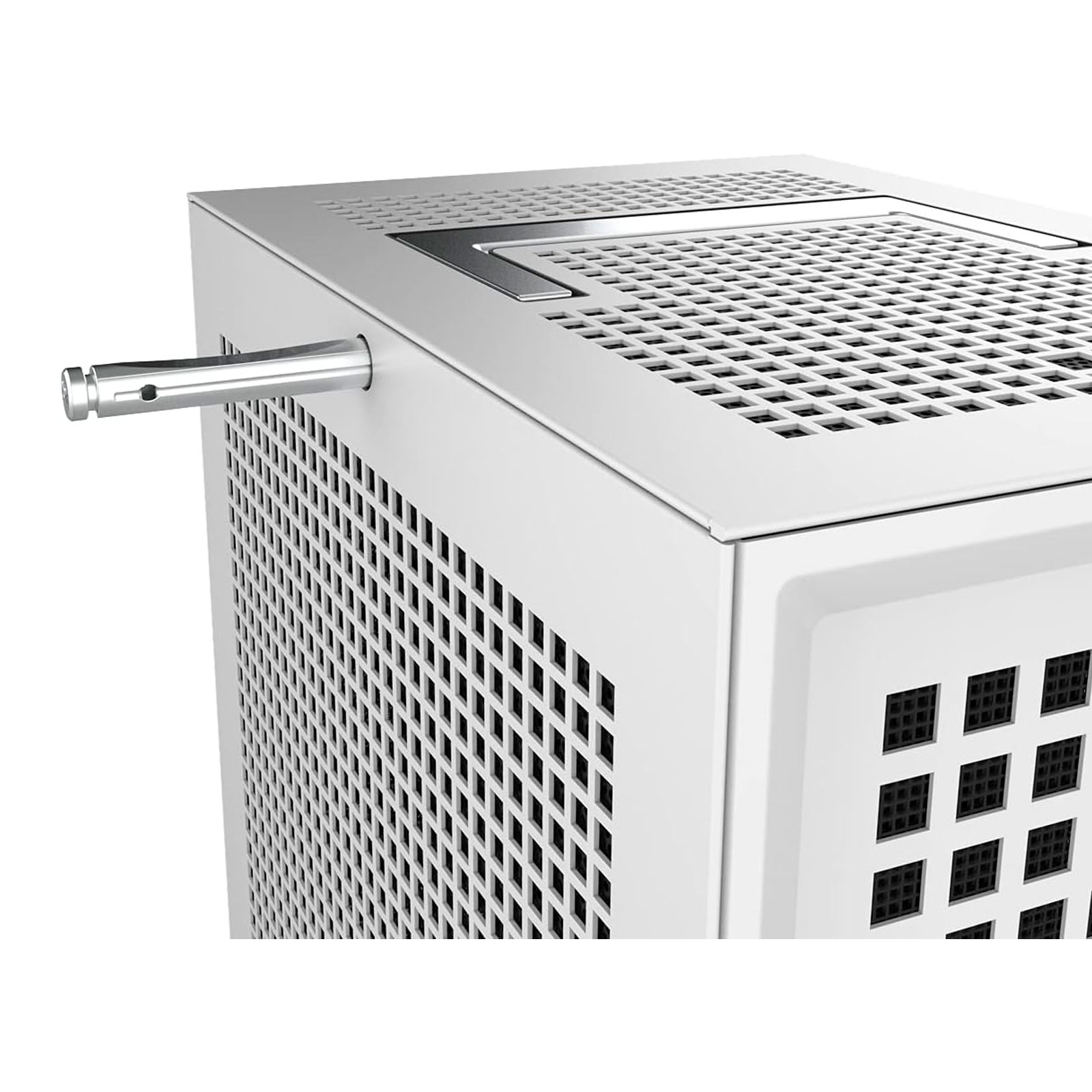

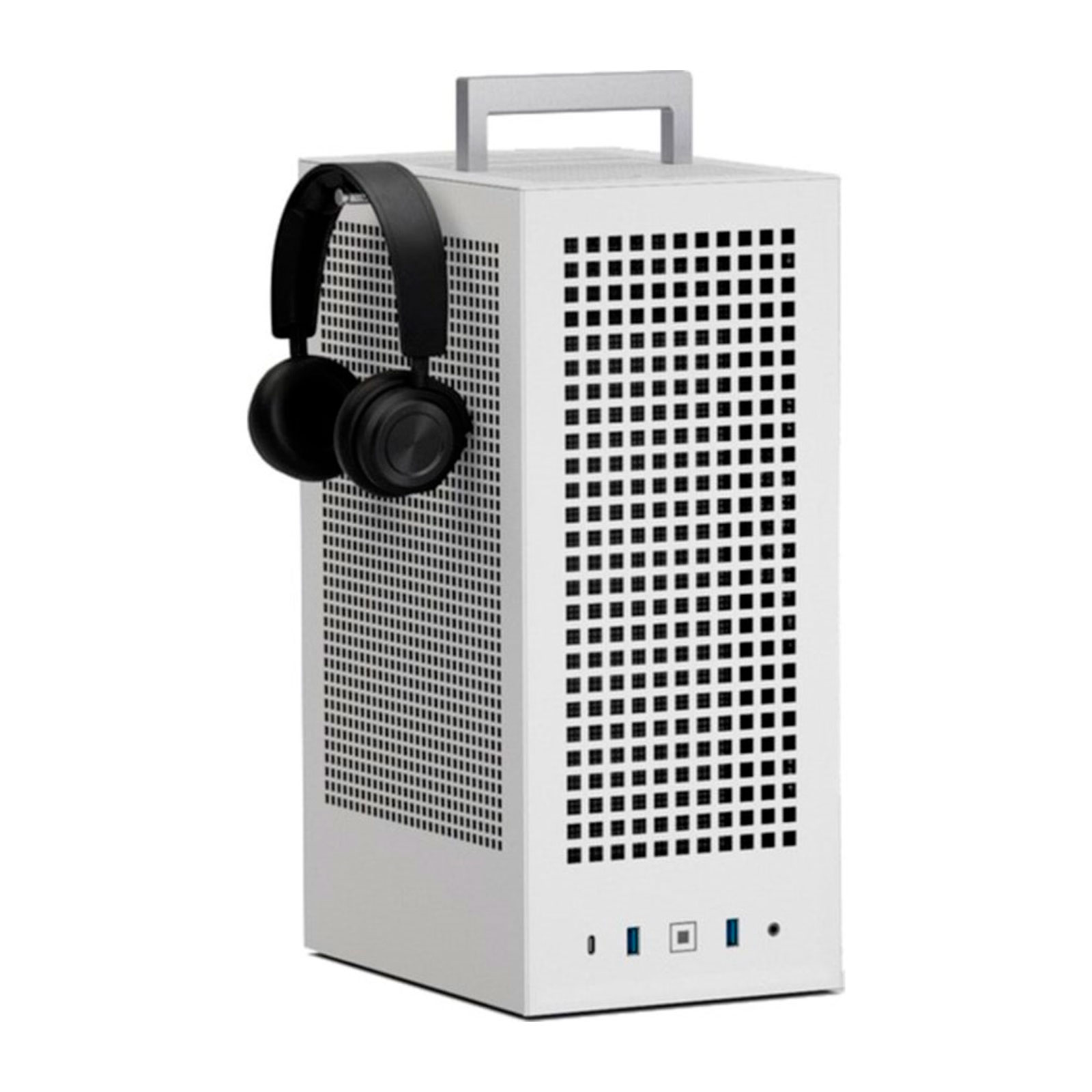

- Integrated handle and accessory holders, for easy travel.
- Downward-facing motherboard I/O routes cables out the back of the case

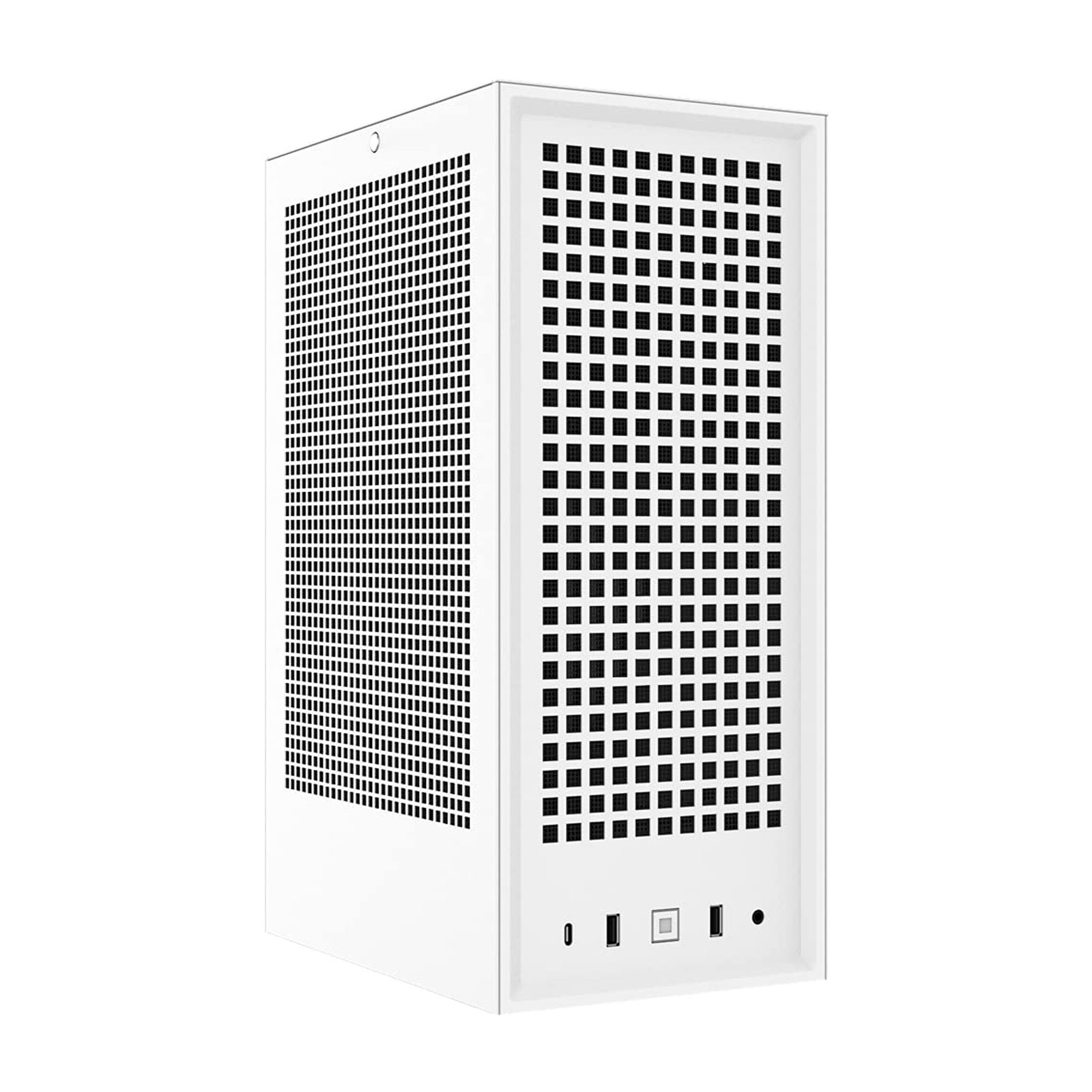

- Bottom-front case I/O offers a cleaner desk setup and superior cable management.
- Supports 1 HDD and up to 2 x 2.5″ SSDs
- Optional PSU with pre-measured and routed cables.
- Separated airflow channels for CPU and GPU cooling
Get yours today, and experience play before you hit the power button.
Tech Specs
Material – Aluminum, Steel, ABS
Color – White
Dimensions – 253 x 178 x 409mm (9.9″ D x 7″ W x 16.1″ H)
Motherboard Size – ITX
Graphics Card – Most cards up to 335 x 140 x 58mm*
Radiator Support – 120, 240, 140, 280mm up to 35mm thick
CPU Cooler Height – Up to 140mm
Top Fan Support – 80×15 mm (x1)
Handle Weight Limit – 30lbs. (14kg)
Expansion Slots – 3
Internal 3.5 Bays – 1
Internal 2.5 Bays – 2
Front Interfaces – USB 3.2 Gen 2 Type-C x1, USB 3.2 Gen 1 Type-A x2, Audio/Mic Combo x1
Dust Filters – Front (Metal Mesh), Top, Slides, Rear (Magnetic)
Case Weight – 14lbs (6.3kg) – Including PSU
Power Supply – SFX, SFX-L (700W 80 Plus Gold optional)
GPU Compatibility / Radiator Door
We designed REVOLT 3 to be a compact ITX case unlike any other. Access your PC from nearly any angle to upgrade and modify.
GPU Compatibility
Compatible GPU (Tested)/Stated Dimensions
ASUS TUF RTX 3080 Gaming – 299.9 x 126.9 x 51.6mm
ASUS TUF RTX 3070 Gaming – 299.9 x 126.9 x 51.7mm
Gigabyte RTX 3090 Gaming OC – 320 x 129 x 55mm
Gigabyte RTX 3070 Vision OC – 286 x 115 x 51mm
MSI RTX 3090 Ventus 3X – 305 x 120 x 57mm
MSI RTX 3070 Ventus 3X – 305 x 121 x 52mm
MSI RTX 3080 Gaming X Trio – 323 x 140 x 56mm
MSI RTX 3060ti Gaming X Trio – 323 x 140 x 56mm
ASROCK Radeon RX 6900 XT Phantom Gaming D – 330 x 140 x 56mm
ASROCK Radeon RX 6900 XT (Reference) – 267 x 120 x 50mm
ASROCK Radeon RX 6800 XT Taichi X – 330 x 140 x 56mm
EVGA Geforce RTX 3080 XC3 – 286 x 127 x 46mm
Incompatible GPU/Stated Dimensions
ASROCK Radeon RX 6900 XT OC Formula – 332 x 137 x 61mm
Gigabyte AORUS GeForce RTX 3080 MASTER 3 – 319 x 140 x 70mm
Gigabyte AORUS GeForce RTX 3070 TI MASTER – 324 x 142 x 70mm
Gigabyte AORUS GeForce RTX 3090 MASTER – 319 x 140 x 70mm
Gigabyte AORUS GeForce RTX 3080 TI MASTER – 319 x 140 x 70mm
MSI GeForce RTX 3080 SUPRIM X – 336 x 140 x 61mm
MSI GeForce RTX 3090 SUPRIM X – 336 x 140 x 61mm
