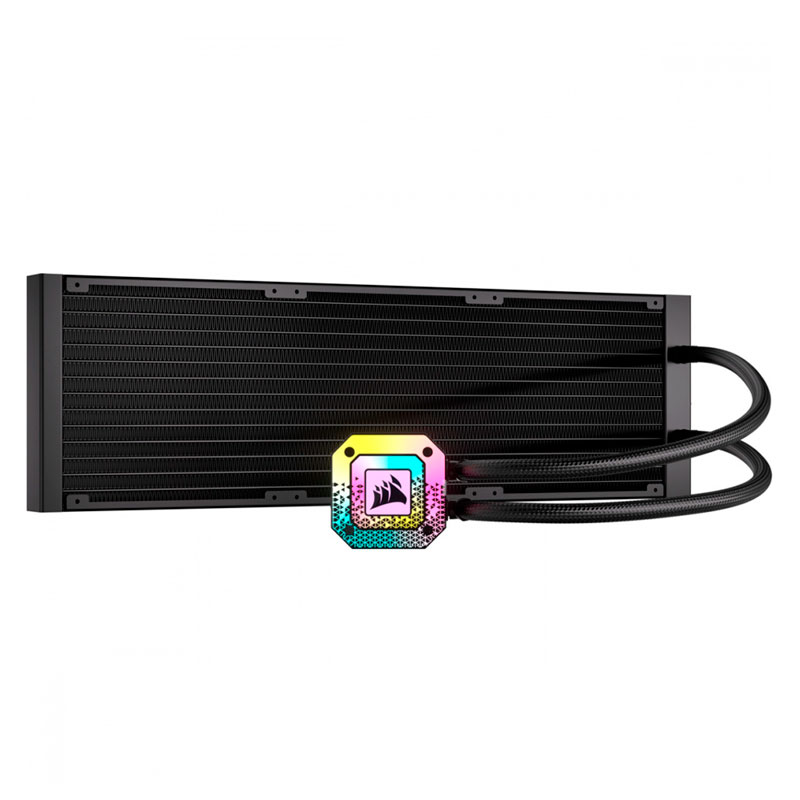

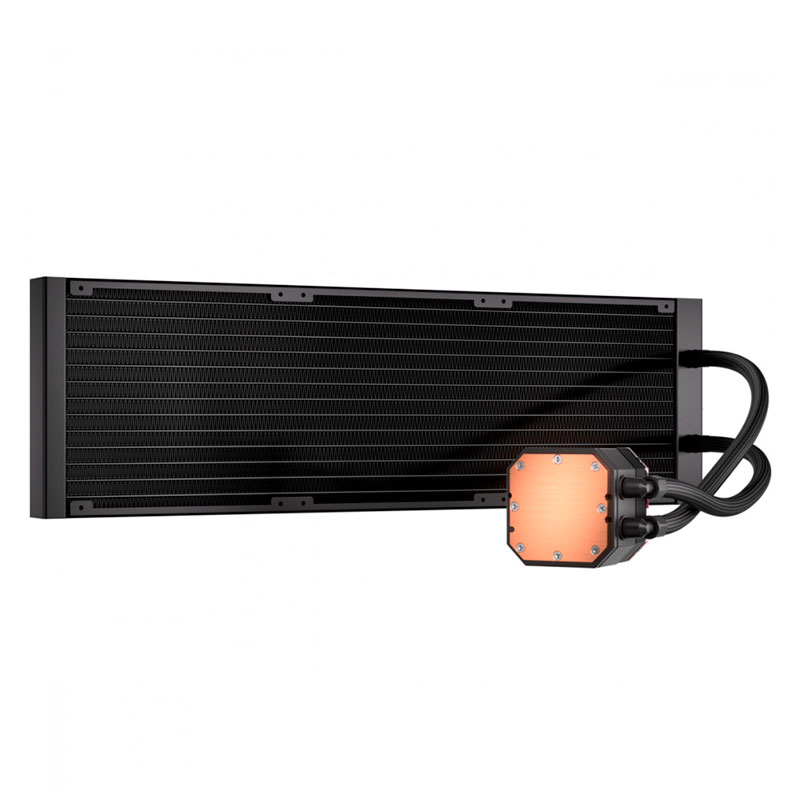

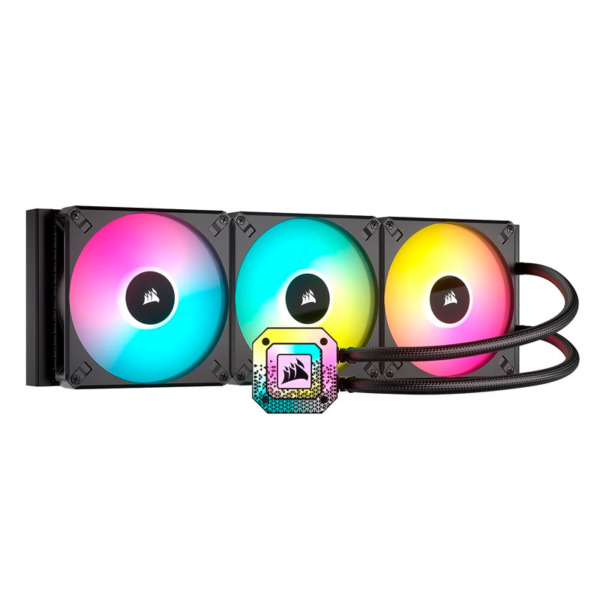

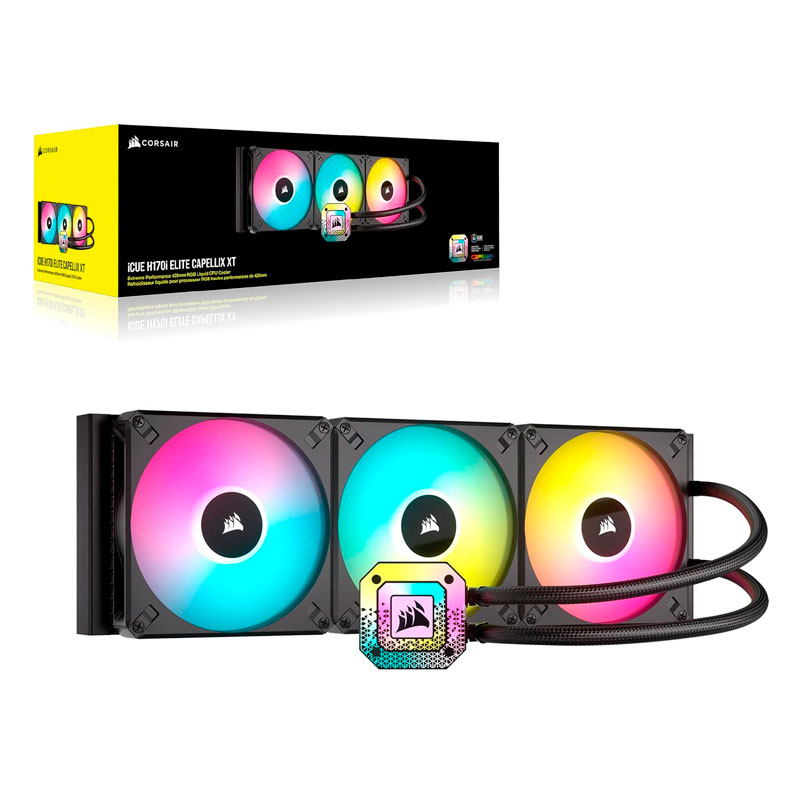

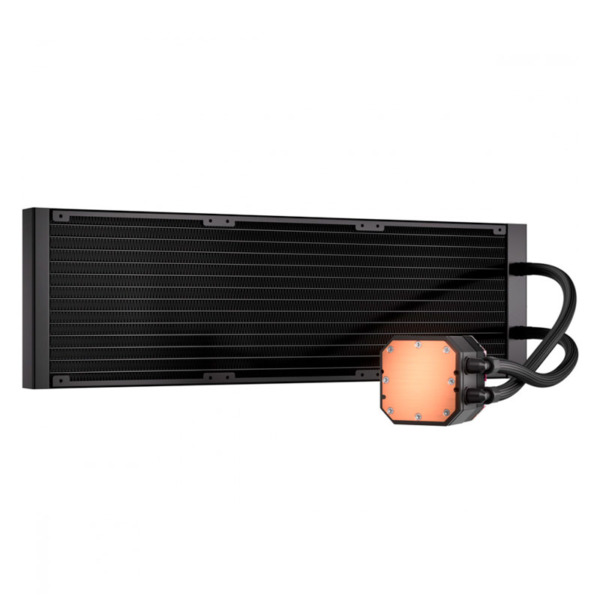

iCUE H170i ELITE CAPELLIX XT Liquid CPU Cooler
- Cool the latest CPUs from Intel or AMD, complete with a 420mm radiator, 3x 140mm fans, copper cold plate, and an efficient pump head lined with stunning CAPELLIX LEDs.
- CORSAIR AF140 RGB ELITE PWM fans deliver massive low-noise airflow with AirGuide technology for extreme CPU cooling performance.
- Dictate your exact fan speeds up to 1,700 RPM with PWM control as quietly as 36 dBa, plus support for 0 RPM PWM signals that allow fans to stop entirely at low temperatures, eliminating fan noise completely.
- An included iCUE COMMANDER CORE RGB lighting and fan speed controller gives you precise speed and lighting control over up to six CORSAIR RGB fans.
- Light up your system with 33 ultra-bright CAPELLIX LEDs in the pump head and 24 fan RGB LEDs, for mesmerizing, customizable lighting effects.
$244 exc. VAT
Out of stock
EFFICIENT AND SILENT CPU COOLING
All-in-one liquid coolers don’t dissipate processor heat inside the case like traditional air coolers,
but instead guide it to the edge of the case and blow it out with dedicated fans.
This results in cooler components and less noise. The ELITE CAPELLIX XT is an upgrade to our most powerful CPU cooler:
- Includes our best performing AF RGB ELITE fans.
- Uses extreme performance XTM70 thermal paste.
- Provides superior lighting effects with CAPELLIX LEDs.
OUR BEST PERFORMING RGB FANS
CORSAIR AF RGB ELITE PWM fans deliver massive low-noise airflow
with AirGuide technology for extreme CPU cooling performance.
Anti-vortex vanes ensure more uniform airflow over radiator fins and more optimal heat dissipation.
PERFORMANCE NEVER LOOKED BETTER

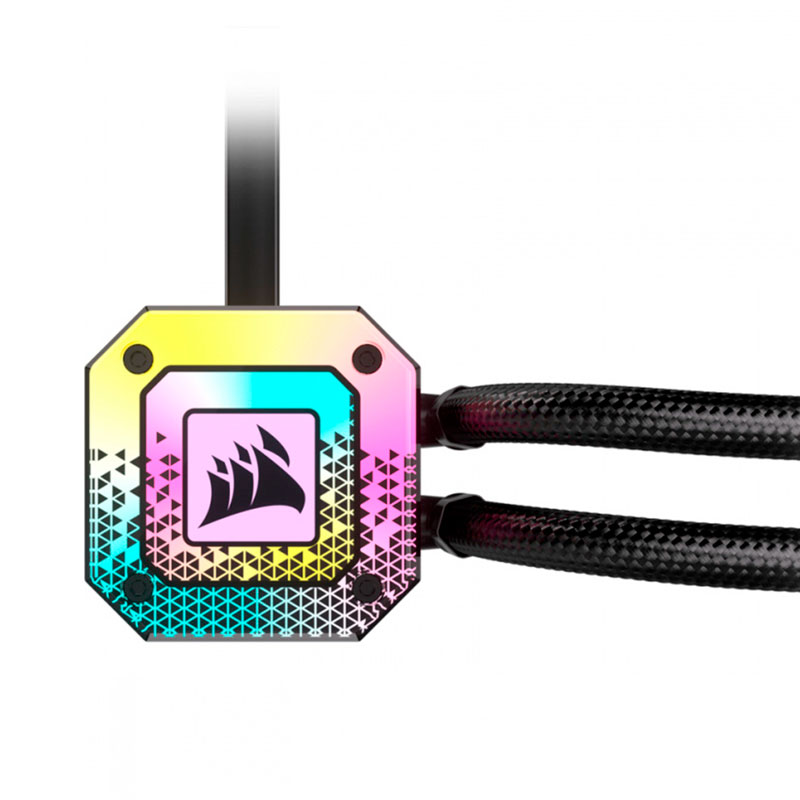

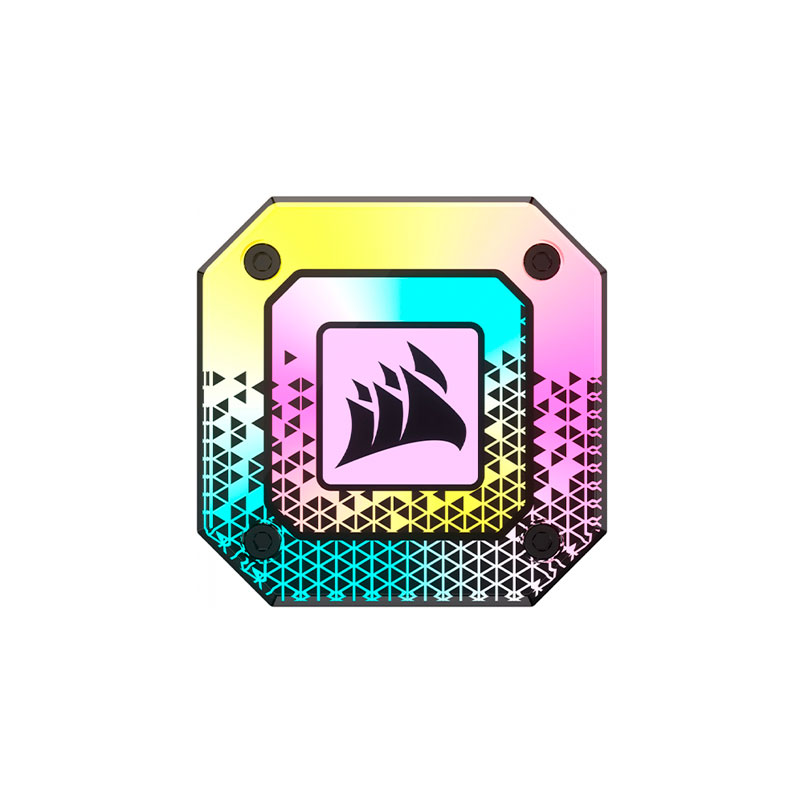

The ELITE CAPELLIX XT cooler pump head houses 33 ultra-bright CAPELLIX LEDs
to go along with its RGB fans. When you add powerful, low-noise cooling to the mix,
your system will look great and will run even better.

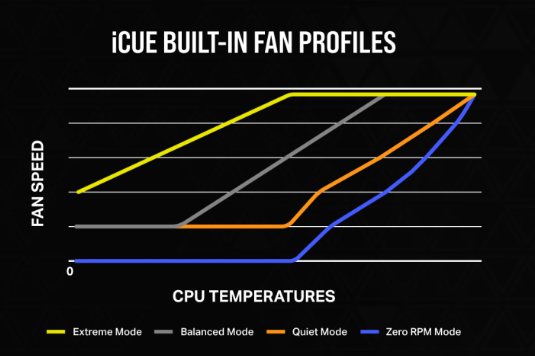

ZERO RPM MODE
Reduce fan noise to a minimum. When your computer doesn’t need active cooling,
Zero RPM cooling profiles in CORSAIR iCUE software allow fans to stop entirely.

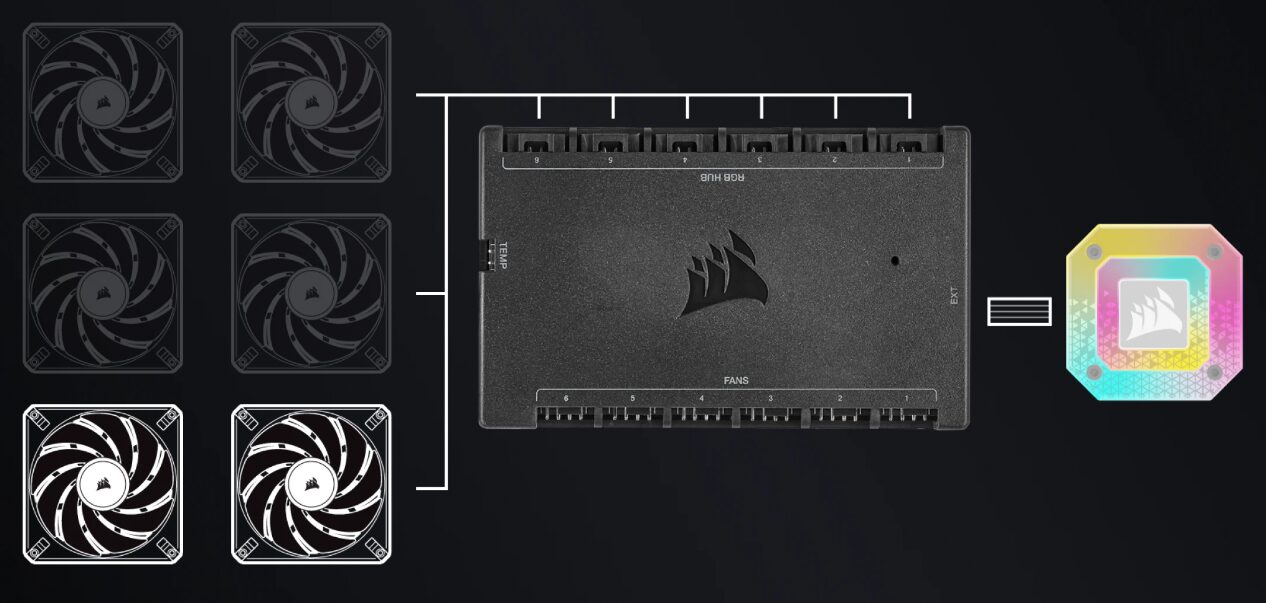

SMARTER COOLING WITH iCUE CONTROL
An included iCUE COMMANDER CORE RGB lighting and fan speed controller gives
you precise speed and lighting control over up to six CORSAIR RGB fans.
EXTENDED TUBING AND EASY INSTALLATION
Extended tubing length of 400mm (H100i, H115i) / 450mm (H150i, H170i),
modular tool-free mounting brackets, and pre-applied XTM70 thermal paste make
for easy installation on the latest Intel® and AMD® motherboard sockets,
including LGA 115X, 1200, 1700, 2011, and 2066, plus AMD Socket AM4, AM5, and sTRX4/sTR4.
Product Length – 457
Product Width – 140
Product Height – 120
Lighting – RGB
Number of Fans – 3
Cold Plate Material – Copper
Radiator Material – Aluminum
Fan Dimensions – 140mm x 25mm
Cooling Socket Support
Intel 1700, Intel 1200, Intel 1150, Intel 1151, Intel 1156, Intel 2011, Intel 2066, AMD sTR5, AMD AM5, AMD sTR4, AMD AM4
Fan Speed – 500 – 1700 RPM ±10%
Fan Airflow – 19.5 – 89.0 CFM
Fan Static Pressure – 0.16 – 2.0 mm-H2O
Noise Level – 5 – 33.8 dBA
Radiator Size – 420mm
iCUE Software – Yes
Tubing Length – 450mm
Coldplate Dimensions – 56 x 56mm
Tubing Material – Black Sleeved Low-Permeation Rubber
Fan Control Method – PWM
AMD Processors Supported – Ryzen Threadripper, Ryzen, A-Series
Intel Processors Supported – Core i9, i7, i5, i3, Pentium, Celeron
PWM – Yes
Weight – 2.27
