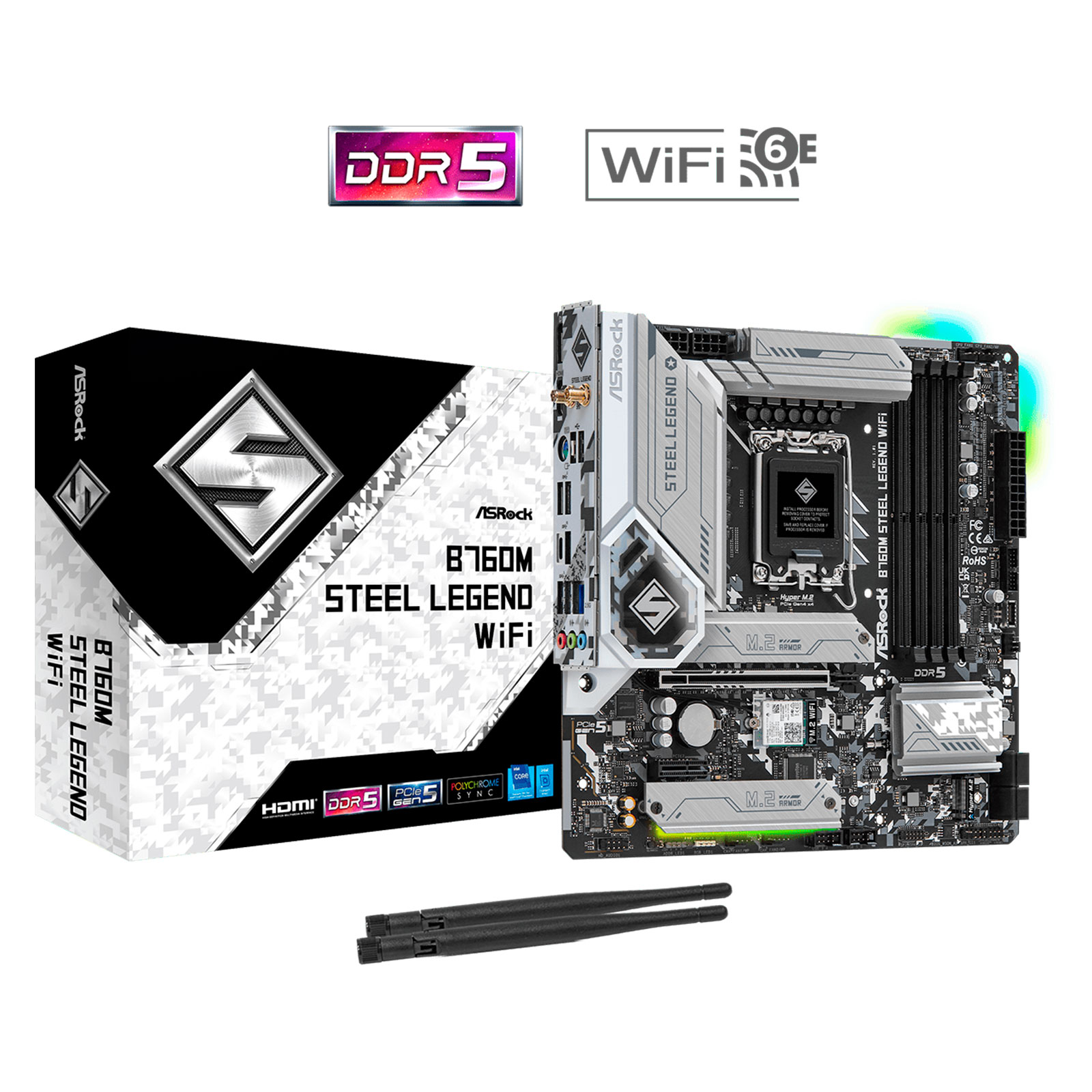

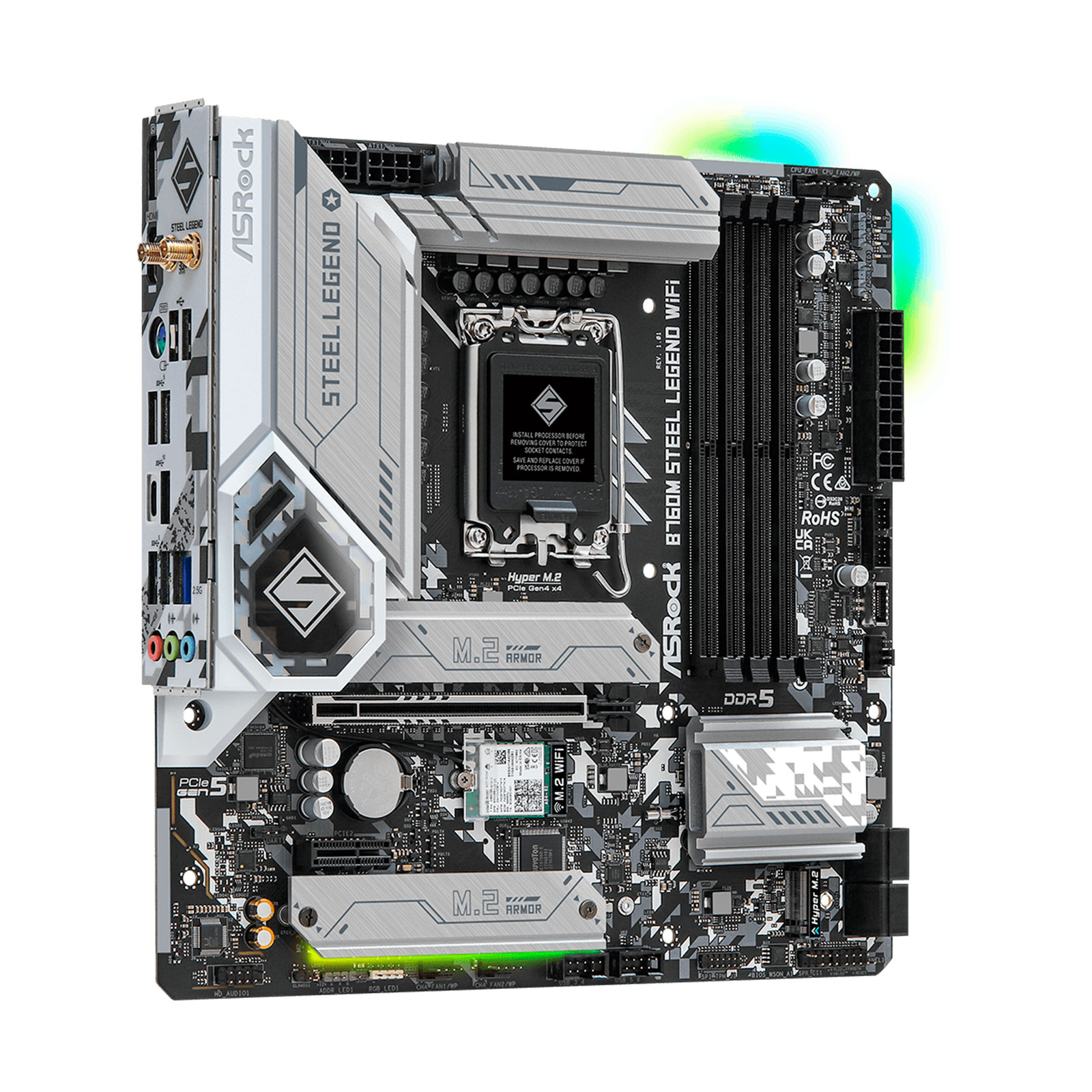

Mother Board B760M Steel Legend WiFi

  • Supports 13th Gen & 12th Gen and next gen Intel® Core™ Processors (LGA1700)
  • 12+1+1 Power Phase, Dr.MOS for VCore+GT
  • Supports DDR5 7200MHz (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
  • Graphics Output Options: HDMI, DisplayPort, eDP
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
    2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
    1 USB 3.2 Gen2 Type-A (Rear),
    6 USB 3.2 Gen1 (4 Rear, 2 Front),
    6 USB 2.0 (2 Rear, 4 Front)
  • Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth 5.3
  • Supports ASRock Auto Driver Installer

$189 exc. VAT

Out of stock

    • Unique Feature
      Superb Productivity
      – PCIe Gen5 (Graphics)
      – Dual Channel DDR5
      Rock-Solid Durability
      – 12+1+1 Power Phase, 50A Dr.MOS for VCore+GT
      – Flexible Integrated I/O Shield
      – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) for VCore
      Ultrafast Connectivity
      – 2.5G LAN, 802.11ax Wi-Fi 6E Module
      EZ Update
      – ASRock Auto Driver Installer
      EZ Troubleshooter
      – ASRock Post Status Checker
    • CPU
      – Supports 13th Gen & 12th Gen and next gen Intel® Core™ Processors (LGA1700)
      – Supports Intel® Hybrid Technology
      – Supports Intel® Turbo Boost Max 3.0 Technology
      – Supports Intel® Thermal Velocity Boost (TVB)
      – Supports Intel® Adaptive Boost Technology (ABT)
    • Chipset
      – Intel® B760
    • Memory
      – Dual Channel DDR5 Memory Technology
      – 4 x DDR5 DIMM Slots
      – Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
      – Max. capacity of system memory: 192GB
      – Supports Intel® Extreme Memory Profile (XMP) 3.0

      *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
      1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
      2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
      2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
    • BIOS
      – 128Mb AMI UEFI Legal BIOS with GUI support
    • Graphics
      – Intel® Xe Graphics Architecture (Gen 12)
      – 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
      – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
      – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

      *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    • Audio
      – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
      – Nahimic Audio
    • LAN
      – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
      – Dragon RTL8125BG
      – Supports Dragon 2.5G LAN Software
      – Smart Auto Adjust Bandwidth Control
      – Visual User Friendly UI
      – Visual Network Usage Statistics
      – Optimized Default Setting for Game, Browser, and Streaming Modes
      – User Customized Priority Control
  • Wireless LAN
    – 802.11ax Wi-Fi 6E Module
    – Supports IEEE 802.11a/b/g/n/ac/ax
    – Supports Dual-Band 2×2 with extended 6GHz band support*
    – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
    – Supports Bluetooth 5.3 + High speed class II
    – Supports MU-MIMO

    *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
    A 6GHz compatible router is required for 6E functionality.
  • Slots
    CPU:
    – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    – 1 x PCIe 4.0 x1 Slot (PCIE2)*
    – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
    – 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    – 4 x SATA3 6.0 Gb/s Connectors

    *Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
  • RAID
    – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB
    – 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)
    – 1 x USB 3.2 Gen2 Type-A (Rear)
    – 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
    – 6 x USB 2.0 (2 Rear, 4 Front)
    * All USB ports support ESD Protection
  • Connector
    – 1 x eDP Signal Connector
    – 1 x SPI TPM Header
    – 1 x Chassis Intrusion and Speaker Header
    – 1 x RGB LED Header*
    – 3 x Addressable LED Headers**
    – 1 x CPU Fan Connector (4-pin)***
    – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    – 1 x Front Panel Audio Connector
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    – 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)

    *Supports in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1 supports the fan power up to 1A (12W).

    ****CPU_FAN2/WP supports the fan power up to 2A (24W).

    *****CHA_FAN1~3/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

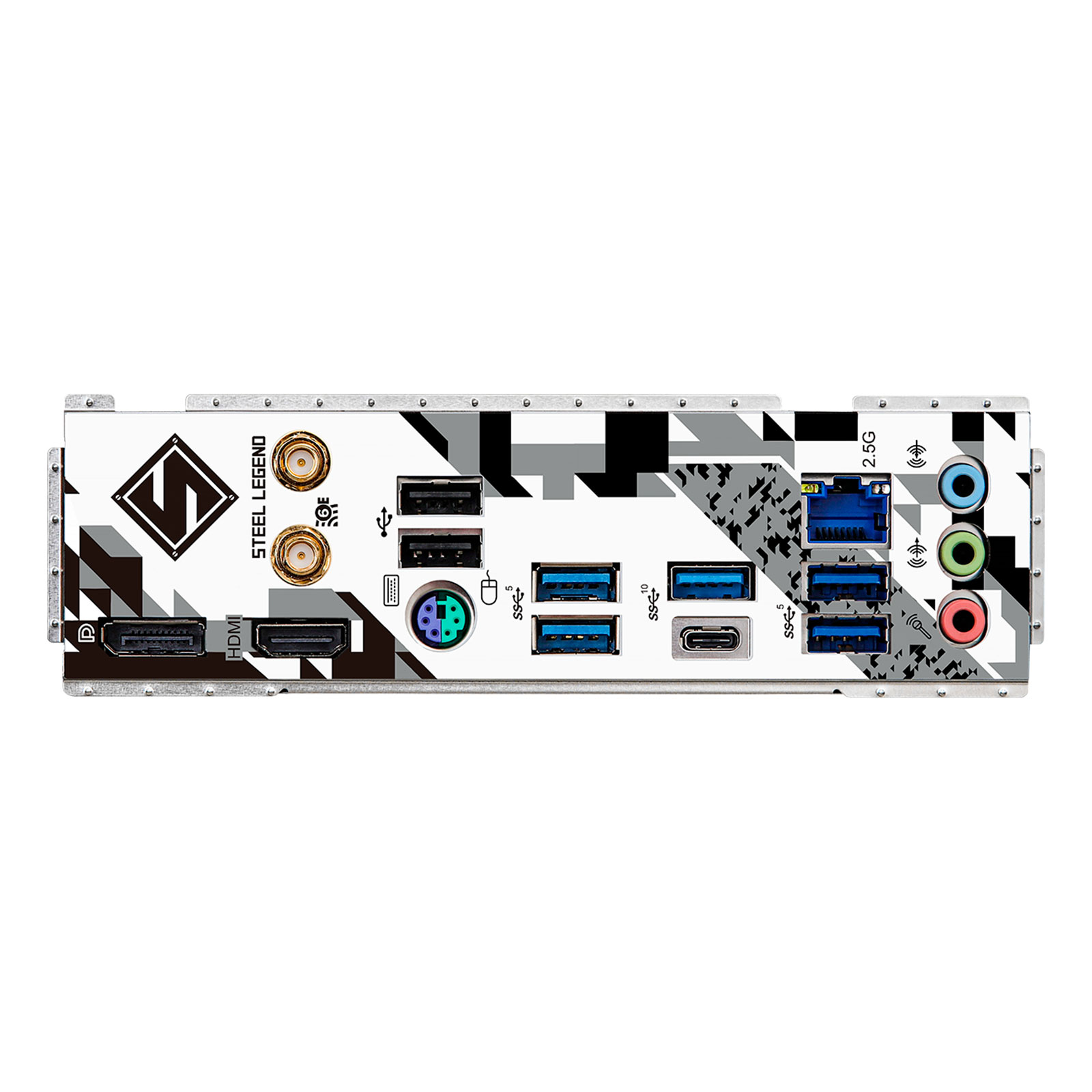

  • Rear Panel I/O
    – 2 x Antenna Ports
    – 1 x PS/2 Mouse/Keyboard Port
    – 1 x HDMI Port
    – 1 x DisplayPort 1.4
    – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
    – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
    – 4 x USB 3.2 Gen1 Ports
    – 2 x USB 2.0 Ports
    – 1 x RJ-45 LAN Port
    – HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    – ASRock Motherboard Utility (A-Tuning)
    – ASRock Dragon 2.5G LAN Software
    – ASRock Polychrome SYNC*
    UEFI
    – ASRock EZ Mode
    – ASRock Full HD UEFI
    – ASRock My Favorites in UEFI
    – ASRock Auto Driver Installer
    – ASRock Instant Flash
    – ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    – 1 x User Manual
    – 2 x SATA Data Cables
    – 2 x ASRock WiFi 2.4/5/6 GHz Antennas
    – 3 x Screws for M.2 Sockets
    – 3 x Standoffs for M.2 Sockets
  • Form Factor
    – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
    – 2oz Copper PCB
  • OS
    – Microsoft® Windows® 10 64-bit / 11 64-bit
  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)
