Power Supply EVGA 700W 80+ Bronze
- Model Name 700BR
- Power Supply EVGA
- Brand Compatible Devices Personal Computer
- Connector type 24 pin
- output power 700
- ATX form factor
- Power 700 watts
- Cooling method Air
- Item Dimensions LxWxH 5.91 x 5.51 x 3.35 inches
- Item Weight 4 Pounds
$89 exc. VAT
Out of stock
EVGA 700 BR 80+ BRONZE 700W 100-BR-0700-K8
Introducing the new EVGA BR series of power supplies. Building on our already great line of Bronze Certified fonts, we decided to make the improvements our customers asked for.
Our BR line is 80 Plus Bronze certified, with efficiency of 85% or more under typical loads.
It has a non-modular design with fully shielded black cables for excellent aesthetics, quiet 120mm fan, greater stability on the 5V/3.3V rails.
Standard ATX form factor Compatible with mATX, EATX, HPTX and XLATX cases
All black shielded cables Get high-end aesthetics while staying on your budget
Characteristics
Design with fixed line The fixed-line design allows cables to be attached to the power source for easier installation and removal. Ready to use from the moment the box is opened.
Fan with long life bearings 120mm fan with long life bearings results in quiet operation and long life
Rated with Bronze efficiency 80 Plus certification ensures that your source does not waste power and convert it into excess heat. Under typical loads this source has efficiencies of 85% or greater.
DC DC converter Voltage drop for rock-solid stability and minimal noise (For 3.3V and 5V)
Hardware Protection While staying quiet, the entire lineup has a large single 12V rail, providing enough power to power all your hardware. Finally, since power is meaningless without security, the full range of protections keep your hardware safe.
specs
Hardware Protection:
OVP (Over Voltage Protection)
UVP (Under Voltage Protection)
OCP (Over Current Protection)
OPP (Over Consumption Protection)
SCP (Short Circuit Protection)
OTP (Overheat Protection)
SPECIFICATIONS

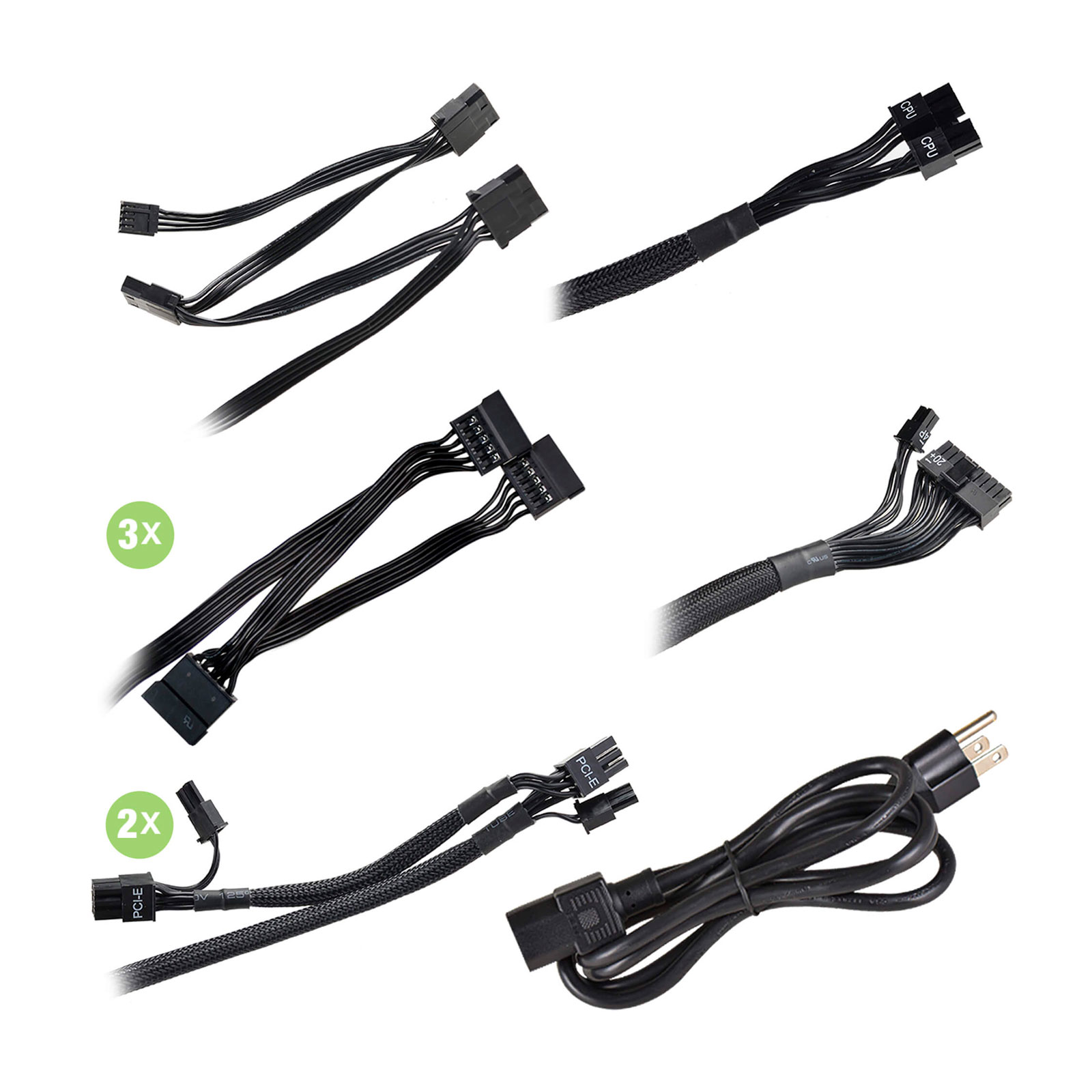

CABLE LENGTH
ATX Cable: 1x 550mm
EPS Cable: 1x 600mm
PCIE Cable: 2x 550mm, 670mm
SATA Cable: 3x 450mm, 570mm, 690mm
Four-Pin Peripheral Cable: 1x 450mm, 570mm, 690mm + 810mm (Floppy)
Flex Adapter: 1x
AC Power: 1x 1200mm (m)
Modular Cable Type: No
NUMBER OF CONNECTORS
24 Pin ATX: 1x
EPS (CPU): 1x 8pin (4+4)
PCIE: 4x 8pin (6+2)
SATA: 9x
Four-Pin Peripheral: 3x
Floppy: 1x
ADDITIONAL DETAILS
Operating Temperature: 0° to 30° C
Japanese Capacitors: No
ECO mode: No
MTBF: 100,000 Hours
Net Weight: 4 lbs.
Size: 85mm(H) x 150mm(W) x 140mm(L)
Approvals:
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
Fan/Bearing Size: 120mm Long Sleeve Bearing
