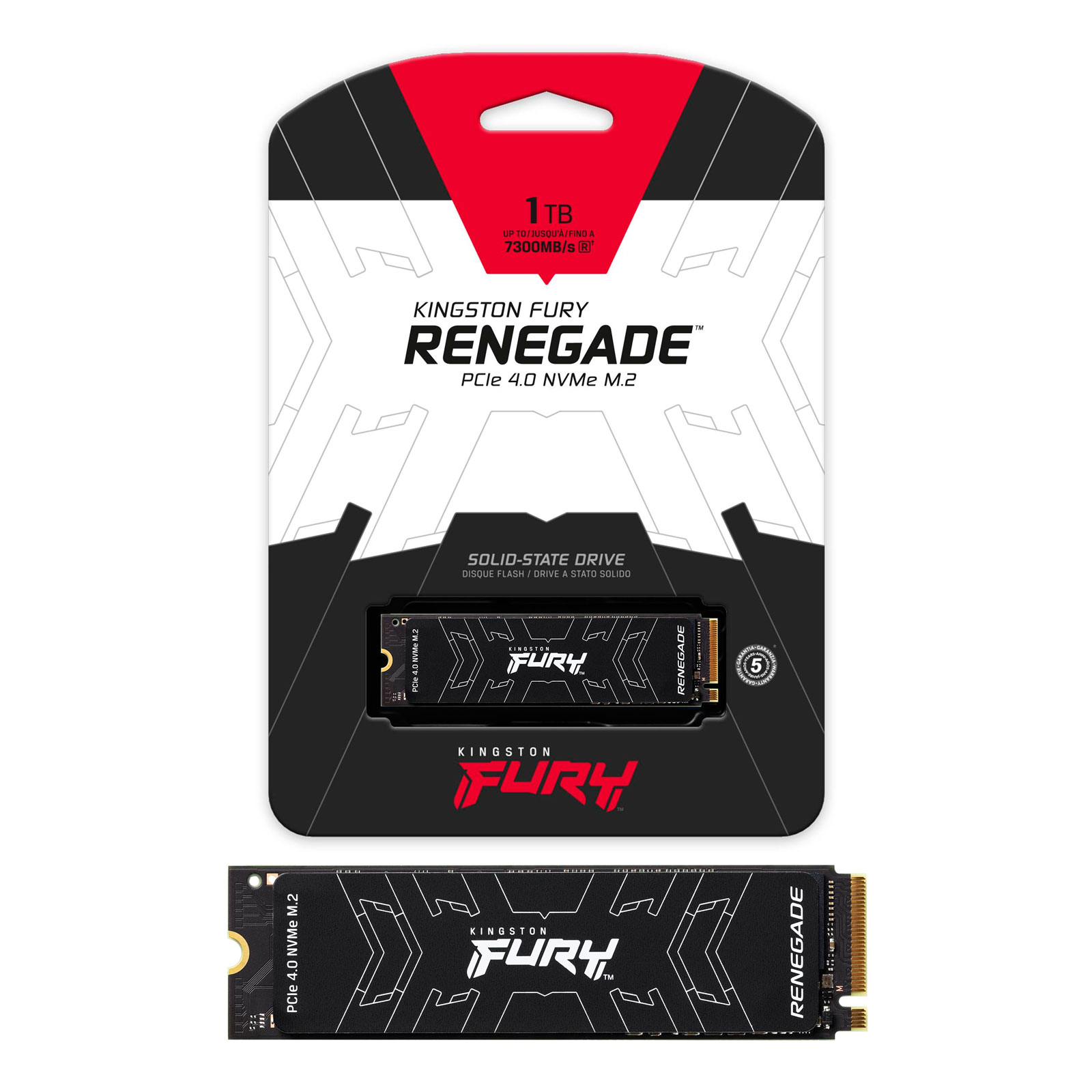

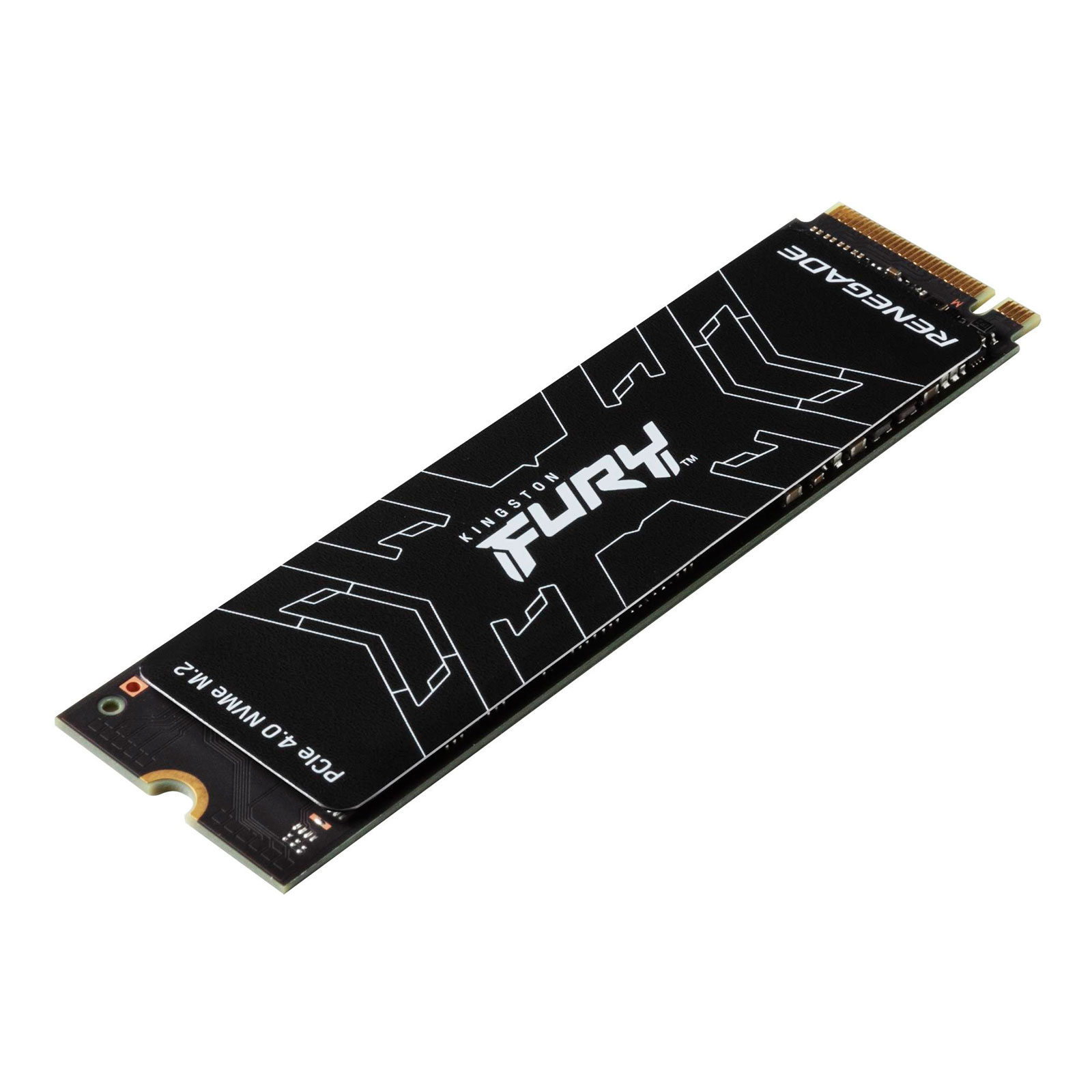

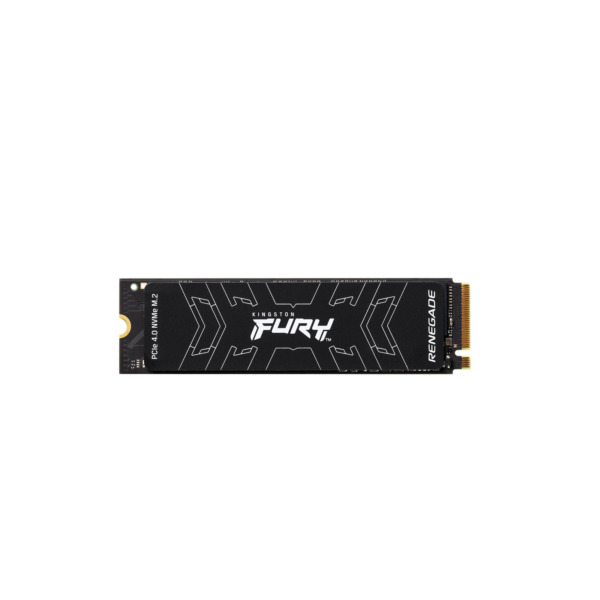

SSD M.2 KINGSTON RENEGADE PCIe 4.0 1TB 7300 MB/S
- Incredible PCIe Gen 4×4 NVMe performance
- Available with heatsink or low-profile heat spreader
- Slim M.2 2280 form factor
- High capacities of up to 4TB2
- PS5™ ready
$133 exc. VAT
Out of stock
Level up with PCIe 4.0 NVMe
Dominate with cutting-edge Gen 4×4 intense speeds of up to 7,300/7,000MB/s1 read/write and up to 1,000,000 IOPS1 performance.
Maximise your motherboard
Powerful slim M.2 form factor to enhance your gaming rig and laptop.
More space to play
Get all the latest titles and DLC available. Performance with high capacities of up to 4TB2 to store your favourite games and media.
Low-profile graphene aluminium heat spreader
Advanced thermal dissipation keeps your drive cool during intense usage. Brings higher performance to the tightest of spaces in gaming laptops and motherboards.
PS5™ ready
Game-changing storage designed to maximise your play. Optional integrated aluminium heatsink model
provides an additional layer of thermal dispersion to cool the drive and maintain peak performance.
| Form factor | M.2 2280 |
| Interface | PCIe 4.0 x4 NVMe |
| Capacities2 | 1TB |
| Controller | Phison E18 |
| NAND | 3D TLC |
| Sequential read/write1 | 1TB – 7,300/6,000MB/s |
| Random 4K read/write1 | 1TB – up to 900,000/1,000,000 IOPS |
| Total Bytes Written (TBW)3 | 1TB – 1.0PBW |
| Power consumption | 1TB – 50mW idle / 0.33W avg / 2.8W (MAX) read / 6.3W (MAX) write |
| Storage temperature | -40°C~85°C |
| Operating Tempetemperaturerature | 0°C~70°C |
| Dimensions | Heat spreader: 80mm x 22mm x 2.21mm (500GB-1TB) Heatsink: 80mm x 23.67mm x 10.5mm |
| Weight | Heat spreader: 500GB-1TB – 7g Heatsink: 500GB-1TB – 32.1g |
| Vibration operating | 2.17G peak (7-800Hz) |
| Vibration non-operating | 20G peak (20-1000Hz) |
| MTBF | 2,000,000 hours |
