THERMALTAKE RADIATOR 360 BLACK CLM360
- Double Copper Micro-fins – The fin density (FPI: 25) is optimally designed to increase surface area allowing heat to be easily carried away.
- Fitment – Engineered at 40mm thickness with dual-row 12-set flat tubes and a brass tank.
- Reflow Soldering – High-quality and high-temperature soldering at 482℉/250℃ ensures optimal thermal transfer with full strength on all connected area avoiding cracking and fail over time.
- Durable Construction – Stainless steel side panels increases the strength of the radiator while reducing the weight
- G¼” Thread Ports – Five total ports with one dedicated for coolant drain solutions.
$121 exc. VAT

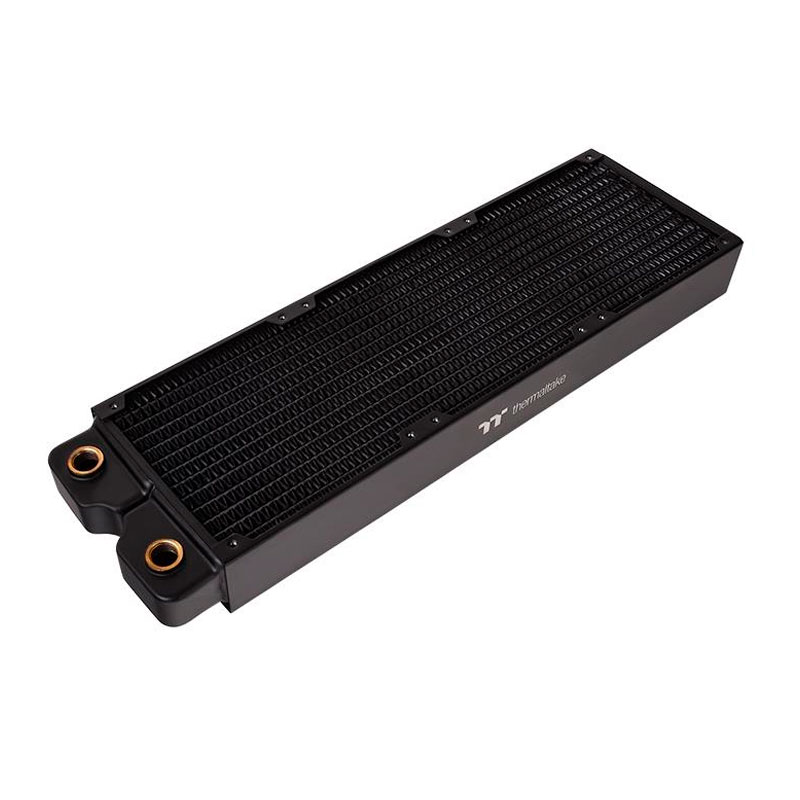

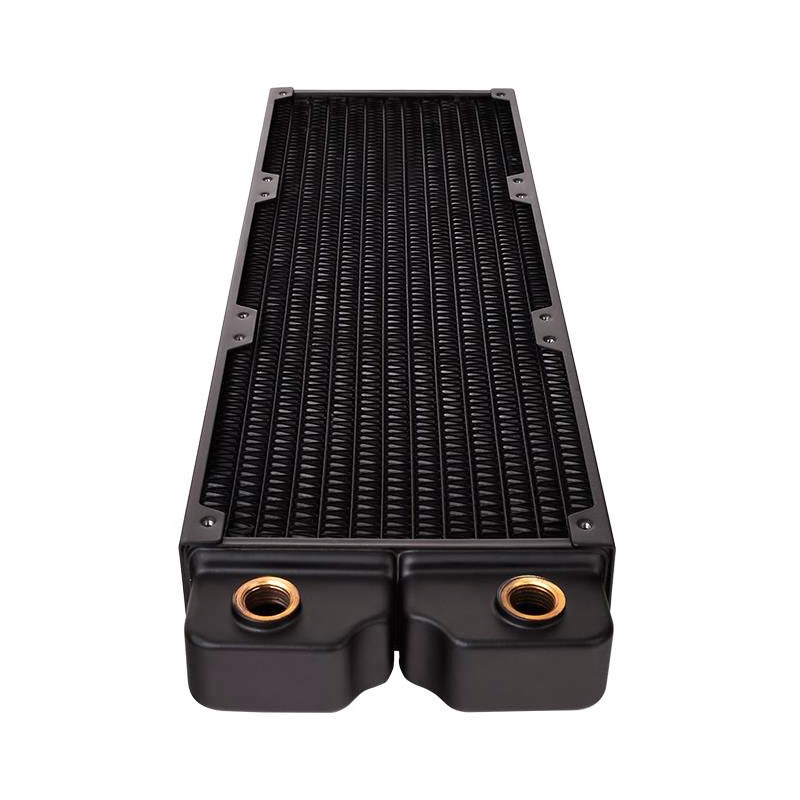

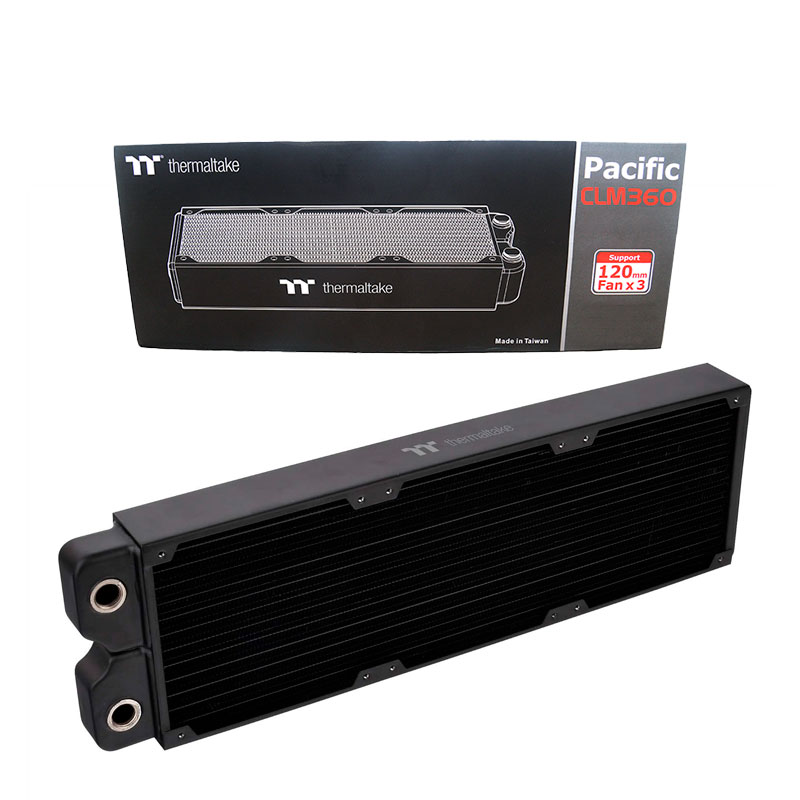

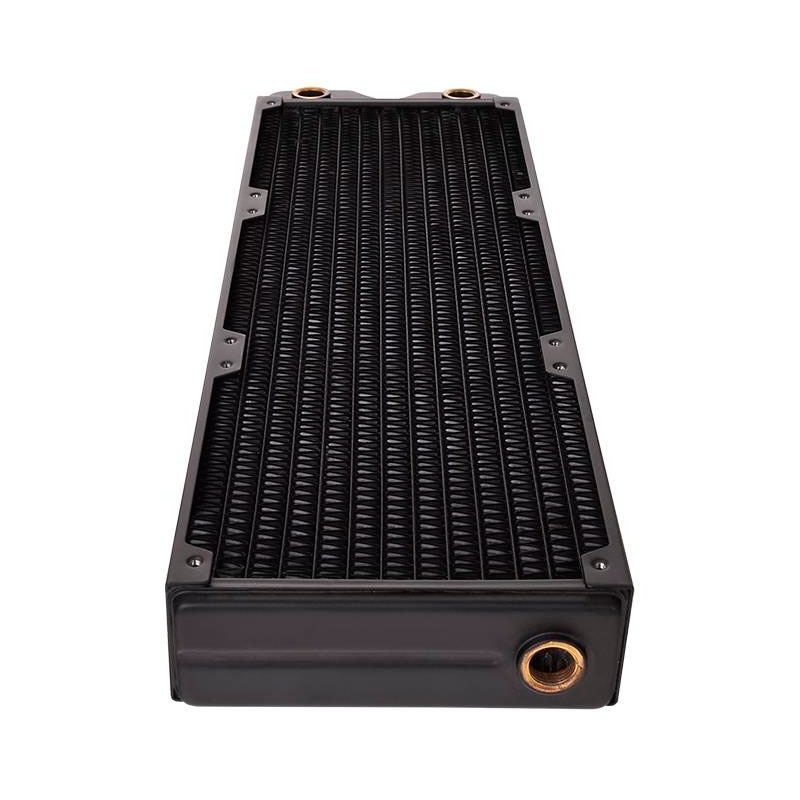

Thermaltake Pacific CLM360 Radiator
The Pacific CLM360 Radiator is a high-performance 360mm copper radiator with high-density copper fin design and brass tank.
Built for 120mm high-static pressure fans with 40mm thickness for optimal heat dissipation,
the radiator is manufactured from premium-quality materials that provide exceptional performance, unrivalled reliability.
The unique stainless steel side panels guarantee the durability as well as reduce the weight of the radiator.
Integrated G1/4″ threads make it easy to install, while rigid connections ensure leak-resistant measures are in place.
With an ideal mounting, fitting and flow set-up, the Pacific CLM Radiator Series meets your cooling needs in every way.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards
that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake
can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling
configurations to ensure you get the best performance from the best features and fitment.
Optimized Heat Dispatching
The radiator is optimized for efficiently pulling heat away from the power-dissipating components
thus achieving maximum heat dissipation at both low and high airflow operation. After soldering,
the fin and tube connect to form a joint, thereby creating uniform heat transfer.
Dual-Row Copper Tubes with Brass Tank
To assure the best thermal capacity and increase heat transfer, the Pacific CLM Series is engineered
with a thick 40mm radiator along with a dual-row 12-set flat tube design and brass tank.
This technique allows that water flows down on the one side, and then passes across
the bottom chamber before circulating back to the other side of the radiator.
High-Density Copper Fin Design
Fin density is optimally designed to accommodate high air volume (FPI: 14).
The performance improves significantly with increased fan speed, offering superior cooling efficiency during operation.
Stainless Steel Side Panels
Unlike most of copper radiators on the market, the radiator utilizes stainless steel made side panels that increase the durability
and strength of the radiator while reducing the weight.
P/N – CL-W237-CU00BL-A
DIMENSIONS – 406(L) x 119 (W) x 40(H)
WEIGHT – 1002 g
MATERIAL – Copper
FPI (FIN PER INCH) – 14
FLAT TUBE – 12 set
THICKNESS – 40 mm
PARTS – Stopper *3 (G 1/4 )
SCREW THREAD – G¼” * 5
