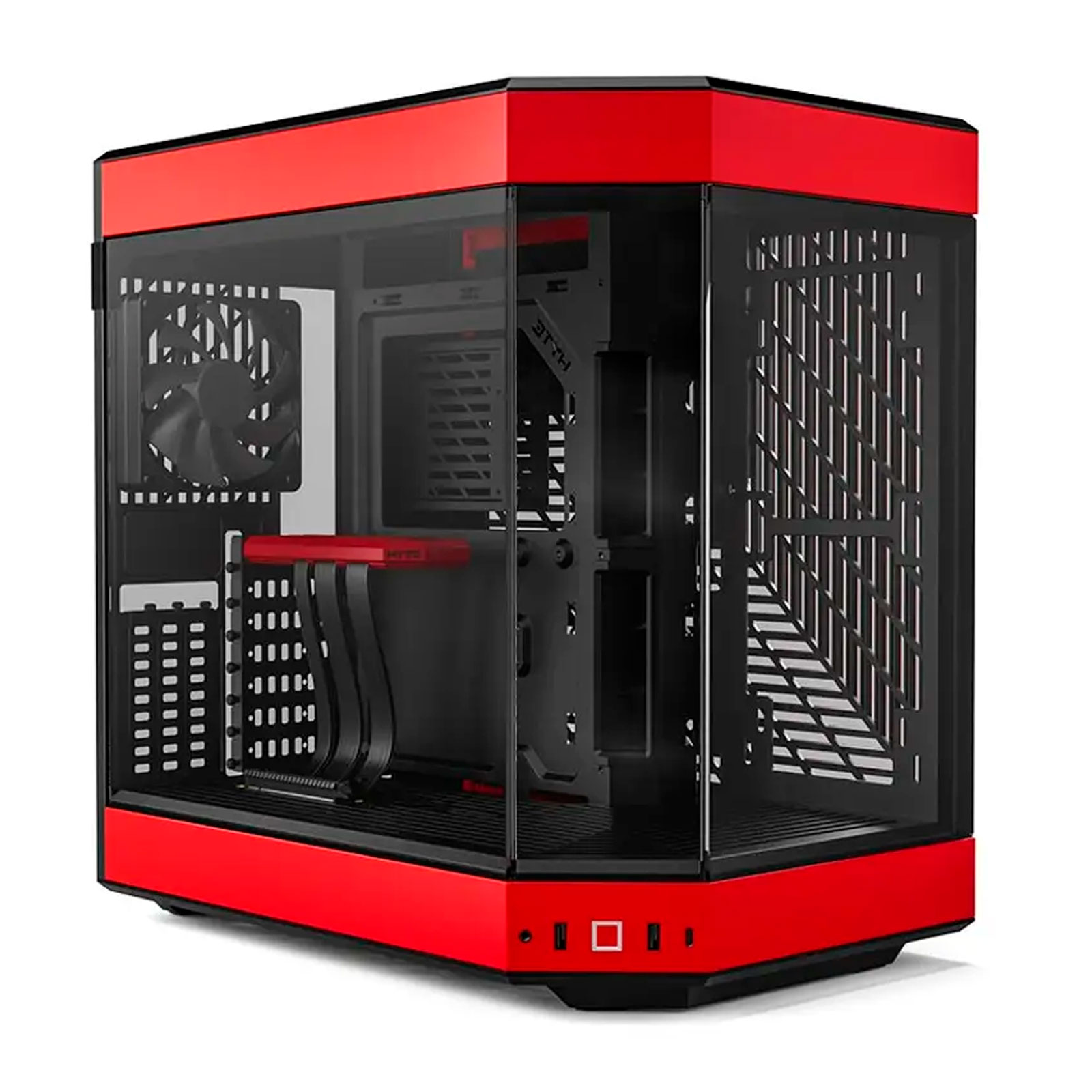

HYTE Y60 – Modern Aesthetic Case Red
- Panoramic Views: No corner pillar. The Y60 features a 3-piece panoramic tempered glass design for the ultimate photo and display potential. See your build the way it was meant to be seen from the left or right side of your desk with a simple turn.
- Exclusively Vertical GPU Mounted: Why would you want to see your graphics card any other way.
- Included PCIE 4.0 Riser Cable: A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card. The protective shroud is the first of its kind, made specifically for the Y60.
- Antechamber Construction: Segment cables from thermal components and turn your PC into a work of art.
- Cold Floor Cooling: Eliminate hot spots with sweeping lateral vents from fans tastefully tucked into the basement of the Y60.
$209 exc. VAT
Out of stock
Display What You Love
ATX with Modern Aesthetic – The Y60 is an innovative genesis in design for the open ATX chassis.
We crafted this case to celebrate your favorite hardware, and show your PC the way it was meant to be seen.
Let Your GPU Take Center Stage
You worked hard to purchase your hardware, so show it off! The Y60 is designed to exclusively display your GPU vertically.
VERTICAL GPU, FRONT AND CENTER
- The included PCIE 4.0 riser cable will support the newest and highest-performing cards, and its color-matched enclosure will unify your system’s look and feel.
- Our riser cable mounts slightly beneath the floor of the case, to cleanly frame your graphics card.
- Worried about cooling? The Y60 includes 120mm fans beneath the floor to draw air up and over your card, maximizing thermal performance and eliminating hotspots.

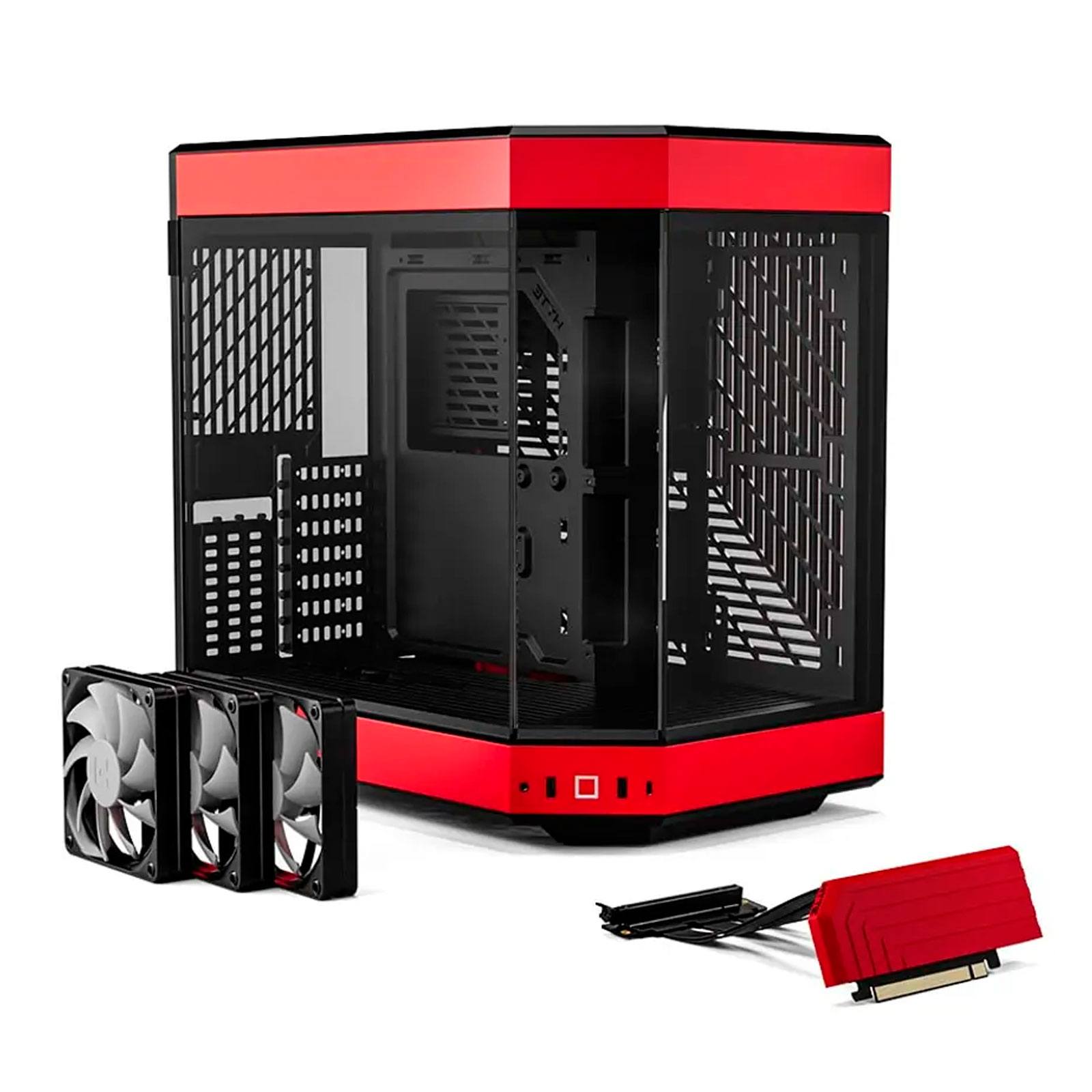

Included: PCIE 4.0 Cable
- The Y60 has an included riser cable designed to waterfall cleanly over half-height cards attached behind your vertical GPU.
- Our cable has been rigorously tested to meet or exceed the PCIE 4.0 standard for signal integrity, offering maximum stability and compatibility.
Smarter Expansion
- The Y60 uses “Low-profile PCIE Cards” to improve GPU performance and aesthetics, without compromising on expandability.
- Our case supports half-height expansion cards behind the primary graphics card.
- This includes capture cards, SSDs, sound cards, or any other expansion that is offered in a half-height form factor.
Looks Cool, Runs Cooler
The Y60 has a unique airflow path allowing for a wide range of compatibility and plenty of cooling options.
3 Pre-installed Fans
120mm
The Y60 comes prepped with 3 pre-installed 120mm fans – 2 beneath the floor, and one at the back of the case.
SIDE MOUNT – RADIATOR SUPPORT
240/280mm
When a standard ATX motherboard is used, the side mount supports 240/280mm radiators up to 150mm thick.
CEILING MOUNT – RADIATOR SUPPORT
360mm
The top of the Y60 supports up to a 360mm radiator.

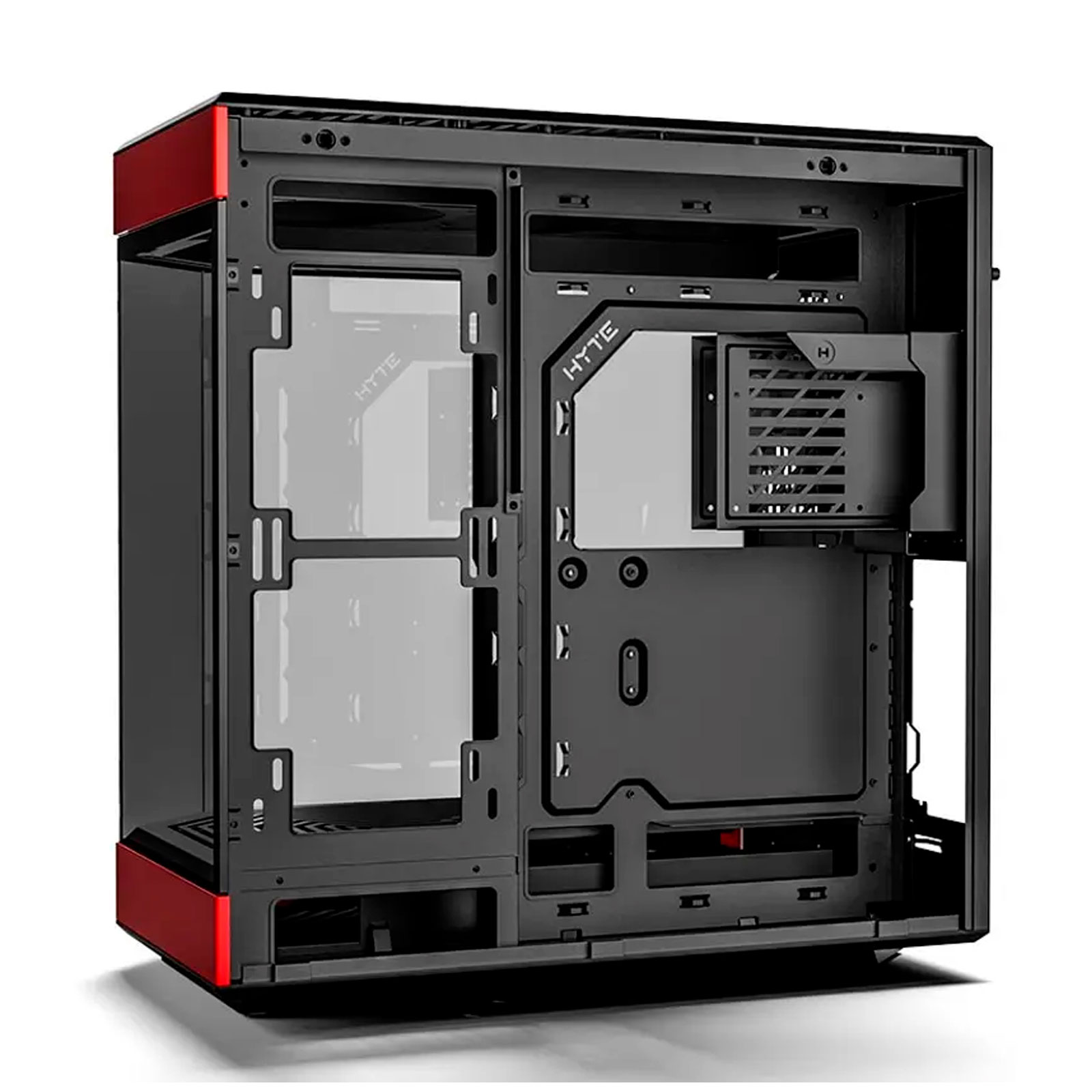

Cables, Managed.
Bespoke grommets channel your cables naturally toward their motherboard
connections while keeping the rear chamber obscured from view.
GPU power connectors can also be ran through an alternate route in the floor of the case, if desired.
Tie-down points adorn our rear chamber, for strategic management that remains flexible to your needs.
Focused Design
The Y60 features 45 degree chamfers designed to smoothly draw in the eyes of the viewer
-
ROOM TO BREATHE

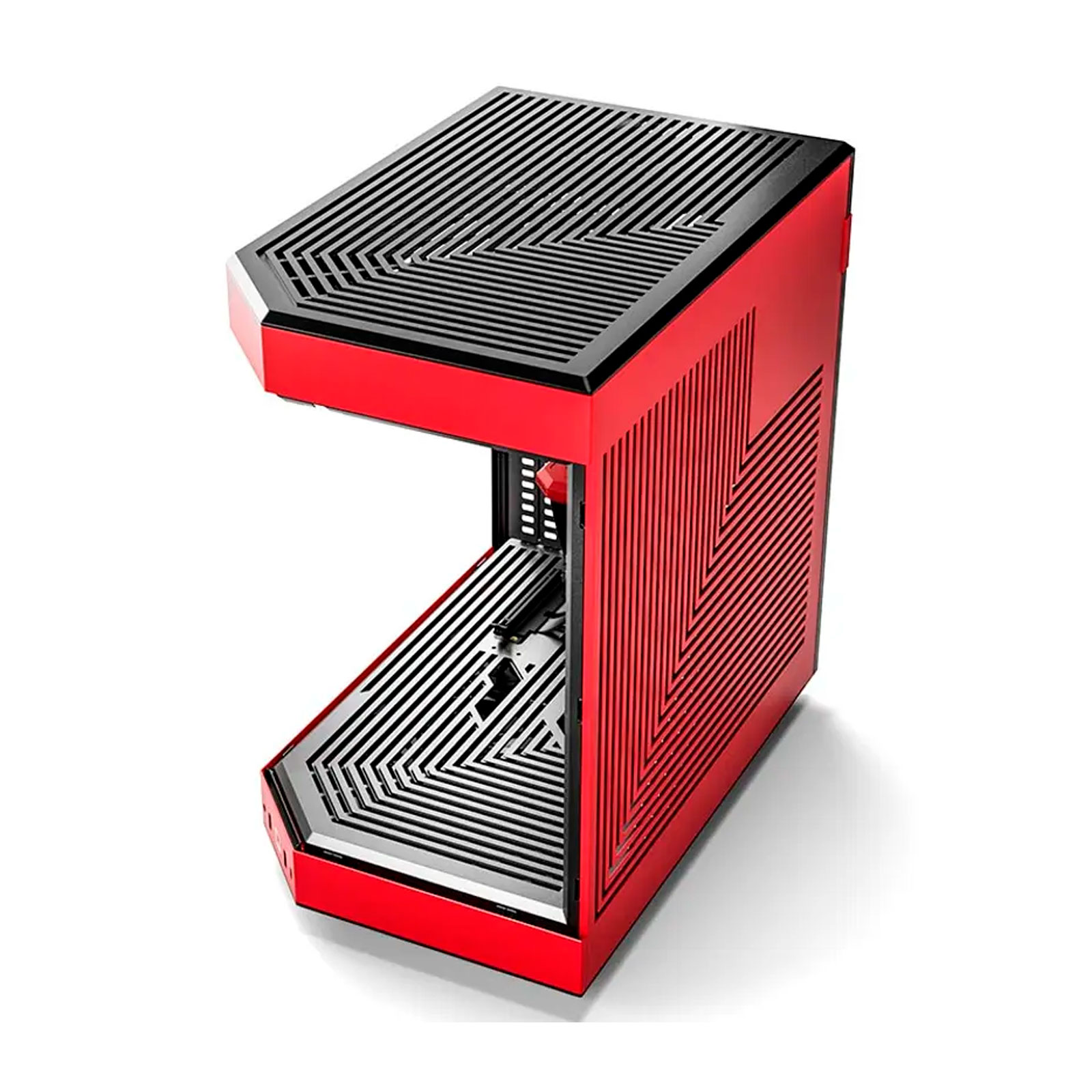

Remove the glass panels for an open-air chassis that loses none of its aesthetic appeal.
-
TOP AND BOTTOM CHAMFERED “MOLDING”
Our 45-degree view angle captures attention and draws the eye of the viewer into the case.
Chamfered “molding” on the top and bottom of the chassis ground the case visually and allow for glass-free displays.
-
HIDE THE REST
Our antechamber design hides unattractive cables, keeping your PC clutter-free, visually appealing, and running cool.
Express Yourself
The Y60 comes in 3 color options; white, black, and red. Match your existing space,
or a contrasting color for a standout system that is sure to turn heads.
Tech Specs
Type – Dual Chamber Mid-Tower ATX Case
Volume – 60L
Case Dimensions – 456mm (L) x 285mm (W) x 462mm (H)
Case Weight – 9.6 kg
Case in Box Dimensions – 535mm (L) x 372mm (W )x 540mm (H)
Case in Box Weight – 11.3 kg
Case Materials – Tempered Glass, Steel, ABS
Color – White/Black, Black/Black, Red/Black
Motherboard Support – EATX, ATX, mATX, ITX
Power Supply – ATX up to 235mm in length
Video Card Max Dimensions – 375mm length, 75mm thick (60mm or less recommended for best cooling)
Fan Support (Side) – 2x 120/140mm
Fan Support (Top) – 3x 120mm
Fan Support (Rear) – 1x 120mm (1x 120mm, 1300 RPM included)
Fan Support (Bottom) – 2x 120mm/140mm (2x 120mm, 1300 RPM included)
Radiator Support (Side) – 120, 140, 240, 280mm up to 150mm thick
Radiator Support (Top) – 120, 240, 360mm up to 30mm thick
Radiator Support (Rear) – 120mm
CPU Cooler Height – 160mm*
Storage – 2x 3.5″ HDD or 4x 2.5″ SSD
Expansion Slots – 3 + 7 half-height
PCI Express Riser – 4.0 x 16 (included)
