Product Features

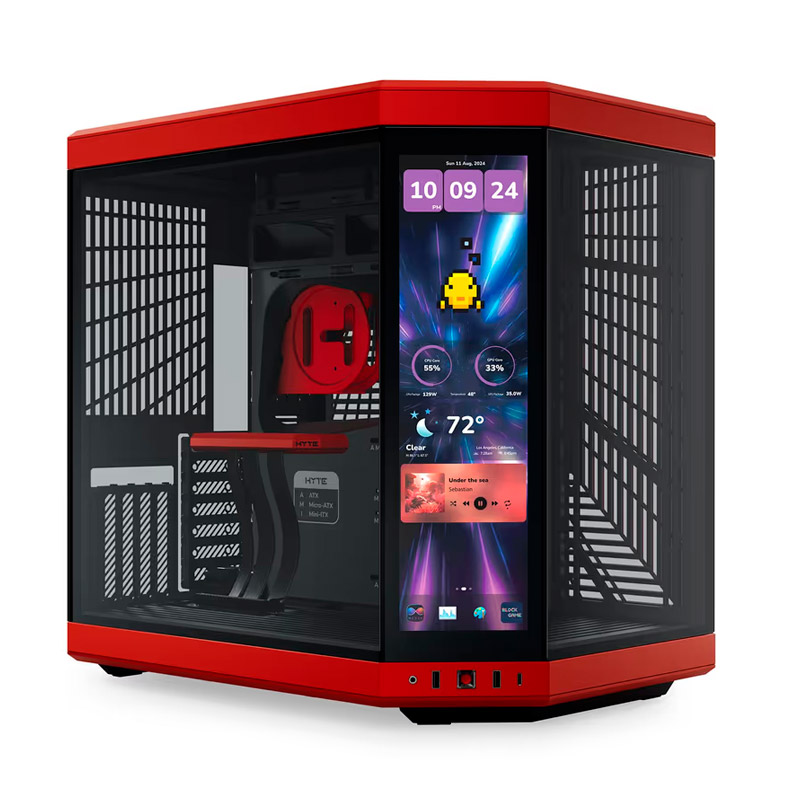

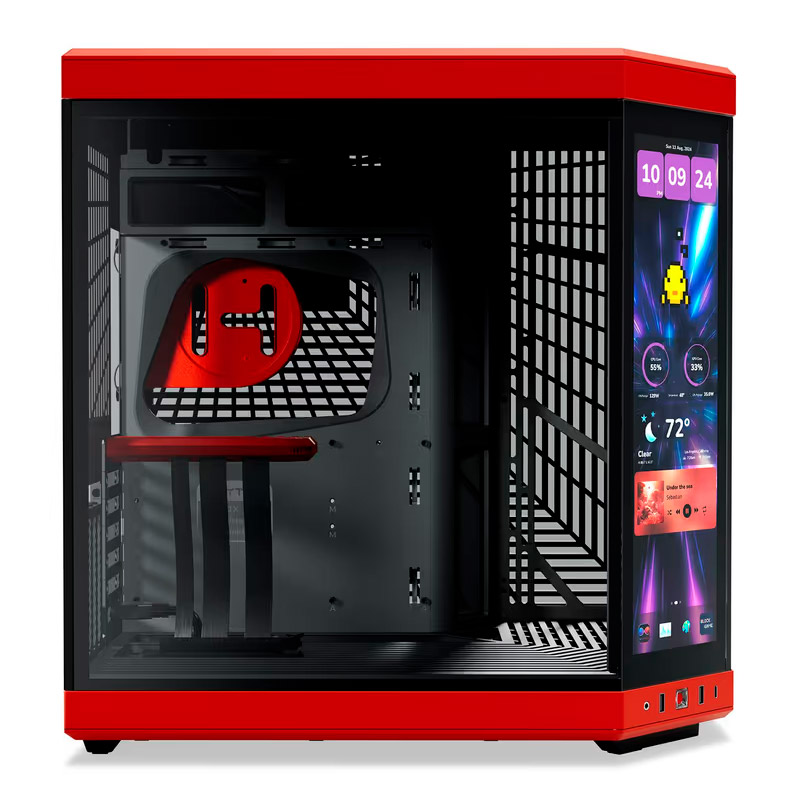

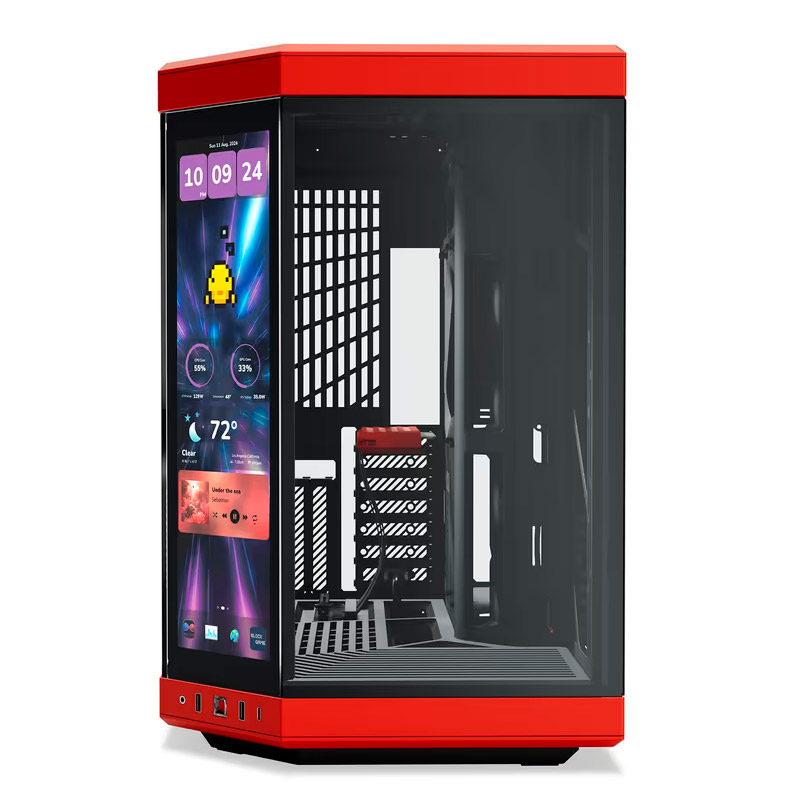

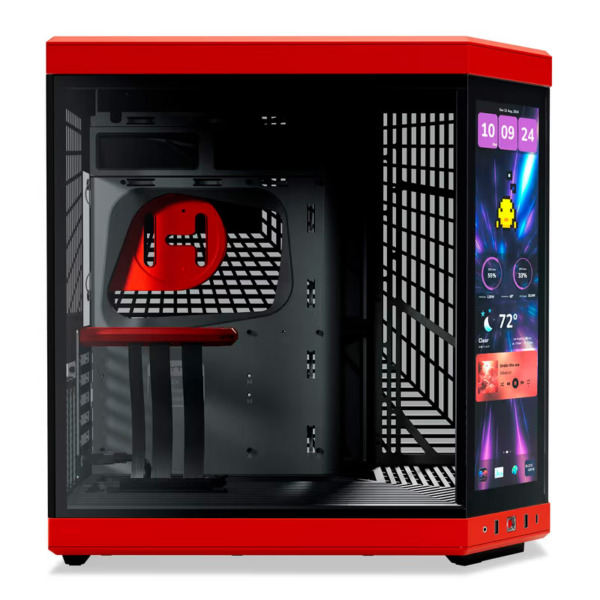

– Fascinating 14.9″ integrated IPS touchscreen (Y70 Touch Infinite only)
With a resolution of 682 x 2560 (2.5K) and a refresh rate of 60Hz, this capacitive IPS touchscreen delivers an incredibly sharp and buttery smooth visual experience with 10-point multi-touch capability, unlocking a wealth of possibilities and extensive screen customization powered by HYTE Nexus software. Our larger, brighter 3rd Gen panel features a larger 14.9″ display with 43% more brightness for a more immersive user experience. All in a single package integrated into the chassis structure of the box, pioneering meaningful digital interaction with the best display ever seen in a box.
– Spilled milk has never looked so good (only Milky Y70’s)
Soft, creamy colors drench the Y70 in a fresh, sweet, and delicious style. The flavors of strawberry milk, blueberry milk, and taro milk have arrived! Milky awnings are included for uninterrupted visual flow.
– Massive 4-slot vertical graphics
The Y70 increases GPU compatibility to 4 slots with additional airflow space between the edge of the card and the glass. This means you can fit even the largest and most powerful graphics cards into your build with ease. In addition, the cooled floor can accommodate up to a trio of 120mm fans or a duo of 140mm fans up to 32mm thick to direct fresh airflow directly to the GPU.
– Deluxe PCIE 4.0 riser cable included
Included with the case is a luxurious 4.0 x 16 PCIE riser with a color-matched canopy for uninterrupted visual flow that will make the GPU installation and construction process painless. It also allows a large number of half-height PCIE cards to sit behind the throne of vertical graphics.
– Huge cooling capacity
A spacious interior makes room for a radiator up to 360 mm long and 125 mm thick on the side and an adjustable top bracket that can accommodate another 360 mm radiator up to 68 mm thick on top. Working in conjunction with cold floor cooling at the bottom and the point for an additional fan at the rear of the case, the Y70 has a total capacity of 10 fans in a fully filled chassis. With over 180mm of side glass clearance, air and water cooling enthusiasts alike will appreciate the flexibility offered by the chassis to create the most robust cooling configurations possible.
– Unified modern aesthetics
With 4 unique color combinations, Y70 puts your build front and center with a beautifully designed 3-piece panoramic glass that serves as a window to the heart of your PC. The dual-chamber interior design keeps the front looking great while giving you plenty of room to handle cables in the back, especially with the help of our seamless L-shaped molded rubber grommet, cable routing channels, and meticulously placed tie-down points, and reusable Velcro straps. All easy to access with tool-free top and side panels along with floating storage sleds that eject from the back of the bed for intuitive unit maintenance.
Technical Specifications
Type – Dual chamber mid-tower ATX case
Motherboard Sizes – ITX, mATX, ATX, EATX
I/O – 1 x USB-C 3.2 Gen 2, 2 x USB-A 3.2 Gen 1.2, 1 x 3.5mm audio/microphone combo jack
Upper radiator – 120-360, 140-280 @ 68mm thick
Side fans – 3x 120 mm / 2x 140 mm
Maximum video card length – 422 millimeters
Maximum power supply length – 235 mm
2nd generation display
14.5″ 688 x 2560 (2.5K) 60Hz 5-point multi-touch capacitive touchscreen display at 60 Hz – 183 PPI – 0.006 mm dot pitch – 350 nits – 1500:1 contrast ratio – 89 degree viewing angle – 20 ms pixel response time
External dimensions – 470 x 320 x 470 mm
Expansion slots – 7 half + 4 full height
Dust Filters – Top, Side, Bottom
Rear fans – 1x 120/140 mm
Side radiator – 120-360, 140-280 @ 125 mm thick
Maximum video card thickness – 105 millimeters
Storage – 2 x 3.5″ hard drives or 4 x 2.5″ SSDs
1st generation display
14.1″ 1100 x 3840 (4K) 60Hz 10-point multi-touch capacitive touchscreen display – 283 PPI – 0.008mm dot pitch – 300 nits – 1200:1 contrast ratio – 85-degree viewing angle – 30ms pixel response time
Volume (L) – 70.7
Lift cable included – Yes, PCIE 4.0 x 16
Main Fans – 3x 120 mm / 2x 140 mm
Rear radiator – 1x 120/140 mm
Backing fans – 3x 120mm / 2x 140mm @ 32mm thick
Maximum CPU cooler height – 180 mm
3rd generation display
682 x 2560 (2.5K) 60Hz 10-point multi-touch capacitive IPS touchscreen – 178 PPI – 0.007 mm dot pitch – 500 nits – 1000:1 contrast ratio – 80-degree viewing angle – 30 ms pixel response time
Powered by Nexus (Y70 Touch Infinite and Y70 Touch only) – Yes, Nexus Touch
