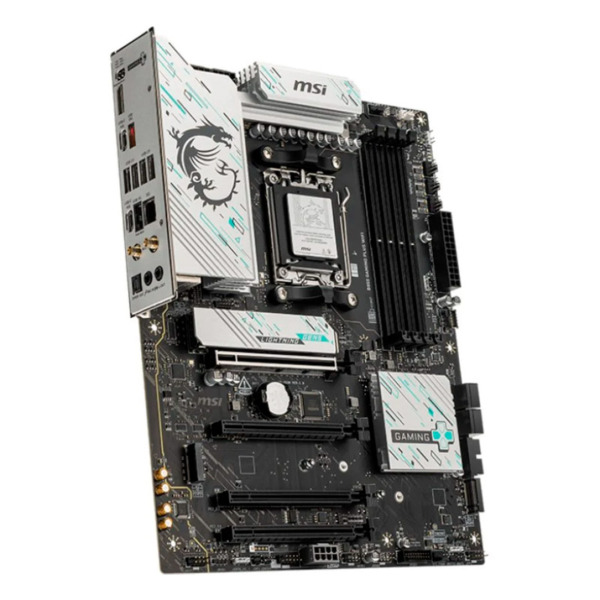

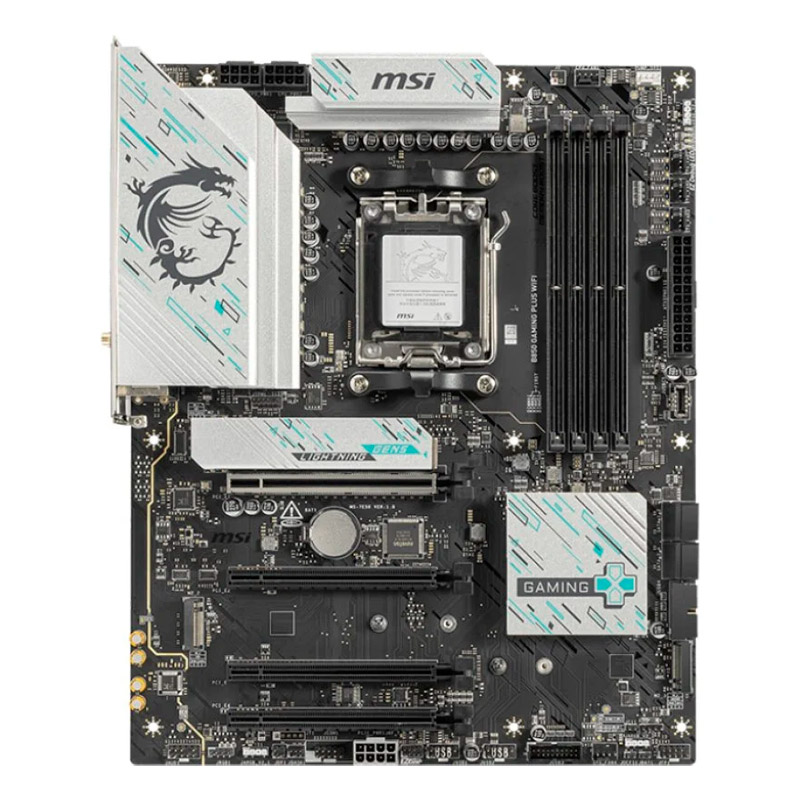

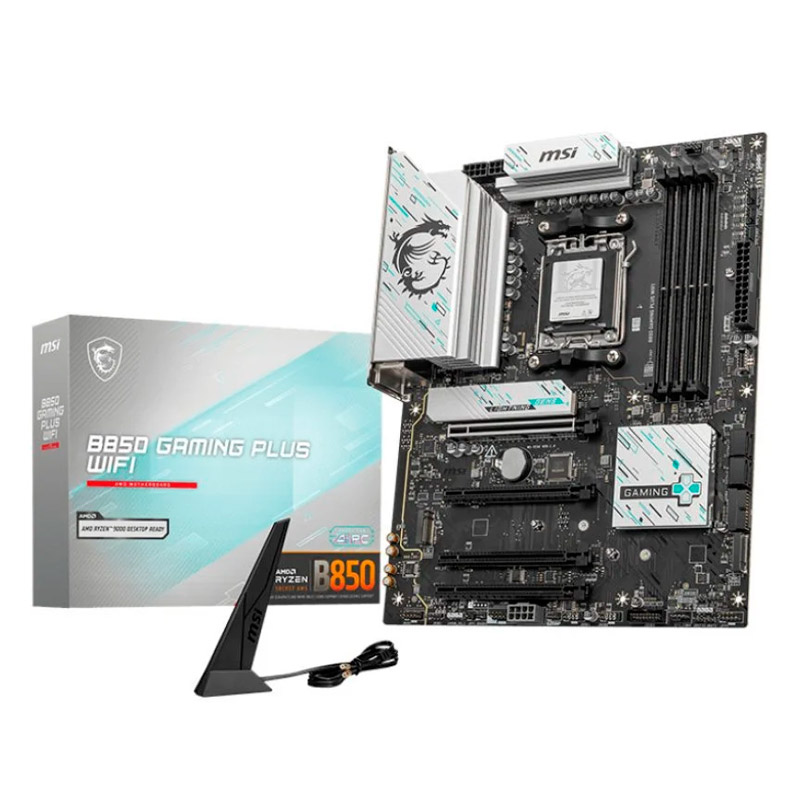

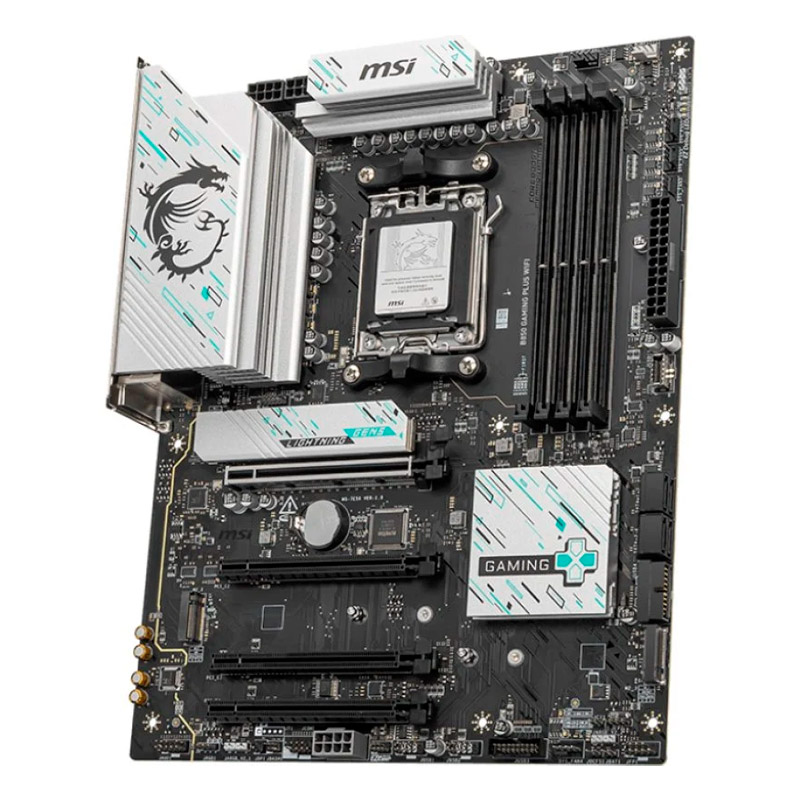

Mother Board MSI B850 GAMING PLUS WIFI

MSI motherboards are designed with advanced hardware and technology, adequately supporting the demanding use of gaming computing and AI.
In addition, we also introduced AI in the MSI Center and BIOS, making everything simpler than before.

I/O shielding

Pre-installed I/O shielding offers a simplified and hassle-free installation experience by eliminating the need to manually
place the I/O shield during motherboard setup. Thanks to its integrated design, it ensures correct alignment and a secure fit,
providing protection and comfort while improving the overall durability of the structure.

MSI EZ Antenna makes the process effortless as it simply attaches to the motherboard without the need to rotate it.

EZ M.2 INSTALLATION

MSI’s exclusive EZ M.2 CLIP II makes M.2 installation seamless. Insert the SSD card into the slot and press it down to secure it with the paperclip.
To hold the SSD, slide the clip out, and then the SSD is removed. The process is smooth and you don’t need to use tools like before.
With just one finger you can enjoy a perfect DIY experience.

EZ M.2 CLIP II REMOVER

Introducing the MSI EZ M.2 CLIP II Remover, a handy tool designed to easily change or reposition the EZ M.2 CLIP II on the motherboard.
This tool allows users to effortlessly detach the EZ M.2 CLIP II from the motherboard and place it back into any desired M.2 slot.
It is included in the accessory kit that comes with MSI motherboards.

HIGH-PERFORMANCE DDR5 MEMORY SUPPORT

A breakthrough in DDR performance thanks to the latest DDR5 memory. Combined with a dedicated SMT soldering process and MSI Memory Boost technology,
the B850 GAMING PLUS WIFI is ready to deliver world-class memory performance.

HIGH-BANDWIDTH, LOW-LATENCY NETWORK

MSI’s premium networking solution offers incredible data transfer speed for demanding users.

MSI Gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices.
Assemble a system with the MSI PC case for the most comfortable experience.

Isolated analog structure for audio connectors

To provide a clear voice, MSI develops a unique structure: the isolated analogy structure.
The external metal structure of the audio connectors is separated from the internal arrangement, ensuring crystal clear sound quality.

Specs:

• Chipset: AMD B850
• CPU: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Socket: AM5
• Memory:
  • 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  • Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
  • Ryzen™ 9000 Series Processors max. overclocking frequency:
    • 1DPC 1R Max speed up to 8200+ MT/s
    • 1DPC 2R Max speed up to 6400+ MT/s
    • 2DPC 1R Max speed up to 6400+ MT/s
    • 2DPC 2R Max speed up to 4800+ MT/s
  • Supports AMD POR Speed and JEDEC Speed
  • Supports Memory Overclocking and AMD EXPOTM
  • Supports Dual-Channel mode
  • Supports Non-ECC, Un-buffered memory
  • Supports CUDIMM, Clock Driver bypass mode only*
• Onboard Graphics:
  • 1x DisplayPort
  • Supports DisplayPort 1.2, maximum resolution of 4K 60Hz*
  • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot:
  • 4x PCI-E x16 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E1 slot:
    • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
    • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
  • *PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot.
• Audio:
  • Realtek® ALC897
  • 7.1-Channel High Definition Audio
• Storage:
  • 3x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
  • 4x SATA 6G
  • M2_1 slot:
    • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
  • *Please refer to the manual for M.2 SSD heatsink restrictions.
• RAID: Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
• USB:
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 1x USB 5Gbps Type A (Rear)
  • 4x USB 5Gbps Type A (Front)
  • 1x USB 5Gbps Type C (Front)
  • 1x USB 10Gbps Type A (Rear)
  • 2x USB 10Gbps Type C (Rear)
• LAN: Realtek® 8126VB 5G LAN
• Internal IO:
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x Power Connector(PCIE_PWR 8pin)
  • 1x CPU Fan
  • 1x Combo Fan (Pump_Sys Fan)
  • 4x System Fan
  • 1x EZ Conn header (JAF_1)
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x Tuning Controller connector(JDASH)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 4x USB 5Gbps Type A ports
  • 1x USB 5Gbps Type C ports
• WIRELESS LAN & BLUETOOTH:
  • Wi-Fi 7 Solution
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  • Supports Bluetooth® 5.4**, MLO, 4KQAM
  • *6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
  • **The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
• LED FEATURE: 4x EZ Debug LED

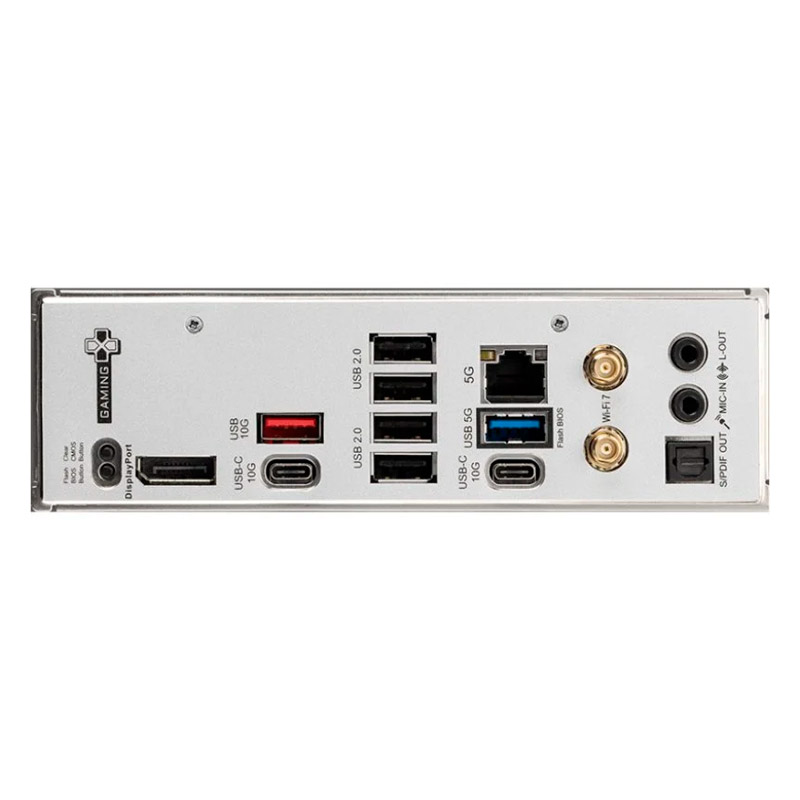

• BACK PANEL PORTS:
  • Clear CMOS Button
  • USB 10Gbps (Type-A)
  • USB 2.0
  • 5G LAN
  • Wi-Fi / Bluetooth
  • Audio connectors
  • Flash BIOS Button
  • DisplayPort
  • USB 10Gbps (Type-C)
  • USB 10Gbps (Type-C)
  • USB 5Gbps (Type-A)
  • S/PDIF-OUT
• OPERATING SYSTEM: Support for Windows® 11 64-bit
• BOX CONTENT:
• PCB Info: ATX, 243.84mmx304.8mm
