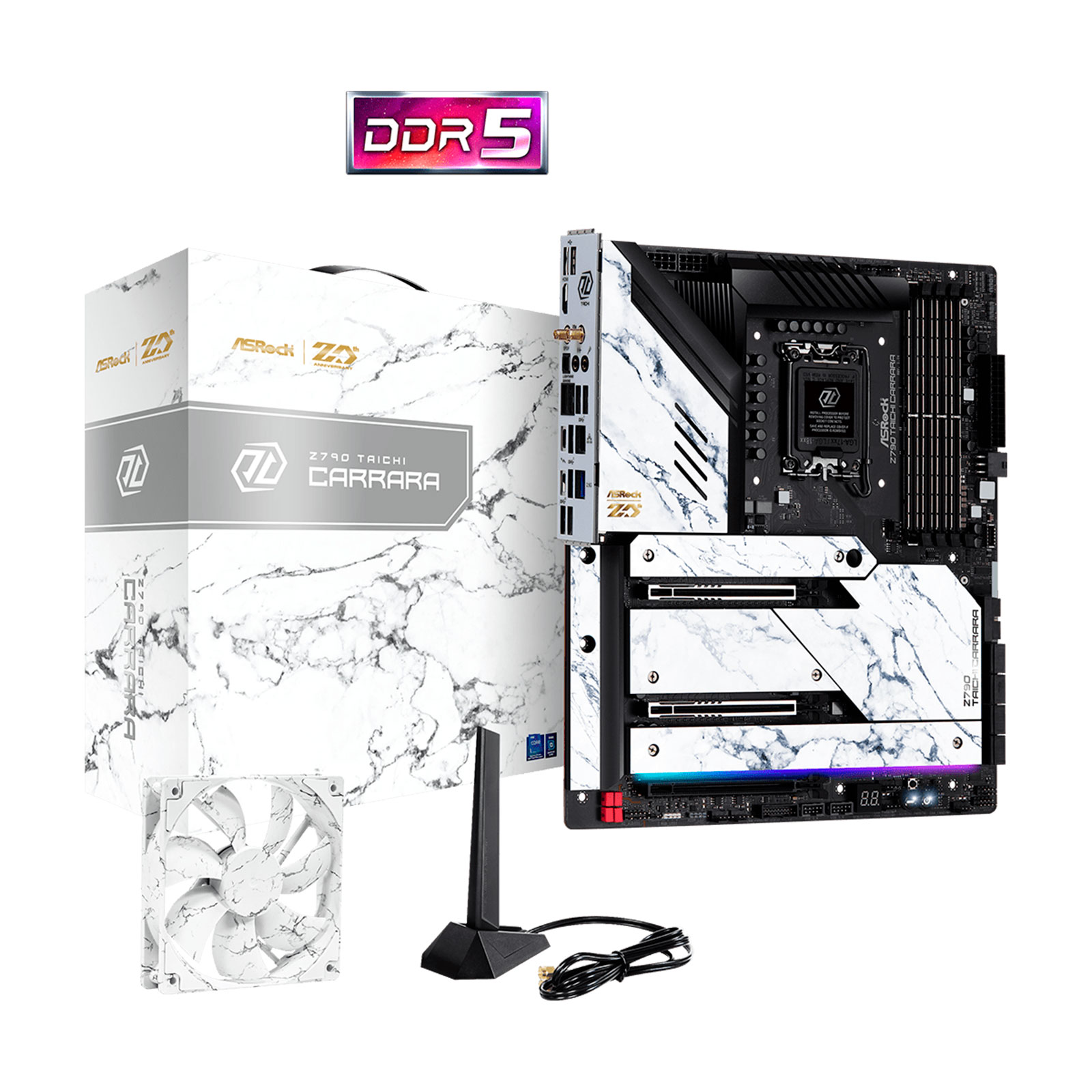

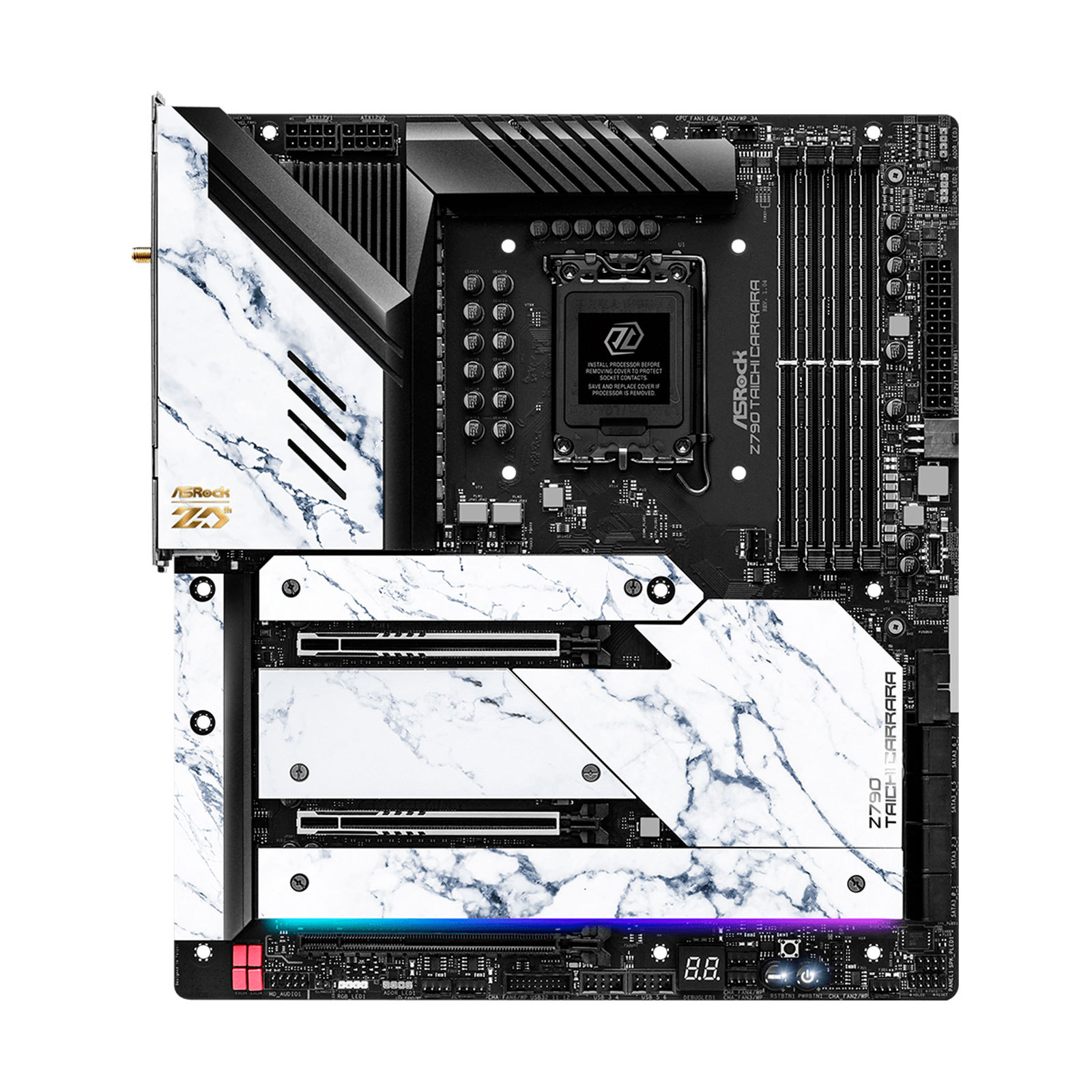

Mother Board Z790 Taichi Carrara

  • Supports 13th Gen & 12th Gen and next gen Intel® Core™ Processors
  • 24+1+2 Phase Power Design, SPS for VCore+GT
  • 4 x DDR5 DIMMs, supports up to 7400+(OC)
  • 2 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 M.2 Key-E for WiFi
  • Graphics Output Options: 2 USB4 Type-C, 1 HDMI
  • 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec), ESS SABRE9218 DAC, WIMA Audio Caps, Nahimic Audio
  • 1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
  • 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-A (Rear), 10 USB 3.2 Gen1 (6 Rear, 4 Front), 6 USB 2.0 (2 Rear, 4 Front)
  • Killer 2.5G LAN, Intel® 1G LAN
  • Killer 802.11ax Wi-Fi 6E + Bluetooth 5.3

$554 exc. VAT

Out of stock

  • Unique Feature
    Superb Productivity
    – PCIe Gen5 (Graphics, M.2)
    – 12CM Carrara Edition Cooling FAN
    – Dual Channel DDR5
    – USB4 Thunderbolt™ 4 Type-C Ports (40 Gb/s)
    Rock-Solid Durability
    – 24+1+2 Power Phase, 105A SPS for VCore+GT with Enlarged Heatsink Armor
    – Flexible Integrated I/O Shield
    – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
    Ultrafast Connectivity
    – Killer 2.5G LAN, Killer 802.11ax Wi-Fi 6E Module
    – Killer DoubleShot™ Pro
    – Front Panel Type-C 60W Fast Charging (20V/3A)
    – ASRock Lightning Gaming Ports
    EZ Update
    – ASRock Auto Driver Installer
  • CPU
    – Supports 13th Gen & 12th Gen and next gen Intel® Core™ Processors (LGA1700)
    – Supports Intel® Hybrid Technology
    – Supports Intel® Turbo Boost Max 3.0 Technology
    – Supports Intel® Thermal Velocity Boost (TVB)
    – Supports Intel® Adaptive Boost Technology (ABT)
    – Supports ASRock Hyper BCLK Engine
  • Chipset
    – Intel® Z790
  • Memory
    – Dual Channel DDR5 Memory Technology
    – 4 x DDR5 DIMM Slots
    – Supports DDR5 non-ECC, un-buffered memory up to 7400+(OC)*
    – Max. capacity of system memory: 192GB
    – Supports Intel® Extreme Memory Profile (XMP) 3.0

    *1DPC 1R Up to 7400+ MHz (OC), 4800 MHz Natively.
    1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
    2DPC 1R Up to 6000+ MHz (OC), 4000 MHz Natively.
    2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
  • BIOS
    – 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    – Intel® Xe Graphics Architecture (Gen 12)
    – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
    – 2 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz**

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

    **Supports two 4K displays or one 8K display
    Only the CPU’s embedded graphics can be displayed through Thunderbolt™ ports. If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.
    Thunderbolt™ graphics output may not be compatible with certain Type-C monitors. Please use graphics card outputs instead.

  • Audio
    – 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
    – WIMA Audio Capacitors (For Front Outputs)
    – ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)
    – Individual PCB Layers for R/L Audio Channel
    – Impedance Sensing on Rear Out port
    – Nahimic Audio
  • LAN
    1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G)
    – Supports Killer LAN Software
    – Supports Killer DoubleShot™ Pro 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)
  • Wireless LAN
    – 802.11ax Wi-Fi 6E Module
    – Supports IEEE 802.11a/b/g/n/ac/ax
    – Supports Dual-Band 2×2 160MHz with extended 6GHz band support*- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
    – Supports Bluetooth 5.3 + High speed class II
    – Supports MU-MIMO
    – Supports Killer LAN Software
    – Supports Killer DoubleShot™ Pro

    *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
    A 6GHz compatible router is required for 6E functionality.
  • Slots
    CPU:
    – 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*
    Chipset:
    – 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
    – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)- Supports AMD CrossFire™
    – 15μ Gold Contact in VGA PCIe Slots (PCIE1 and PCIE2)

    * If M2_1 is occupied, PCIE1 will downgrade to x8 mode.
    If PCIE2 is occupied, M2_1 will be disabled.
    If PCIE3 is occupied, SATA3_0~3 will be disabled.
    Supports NVMe SSD as boot disks
  • Storage
    CPU:
    – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    – 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    – 8 x SATA3 6.0 Gb/s Connectors**

    *Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
    If M2_1 is occupied, PCIE1 will downgrade to x8 mode.
    If PCIE2 is occupied, M2_1 will be disabled.
    M2_1 and M2_2 cannot be populated simultaneously.**If PCIE3 is occupied, SATA3_0~3 will be disabled.

  • RAID
    – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    – Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
  • USB
    – 2 x USB4 Thunderbolt™ 4 Type-C (Rear)
    – 1 x USB 3.2 Gen2x2 Type-C (Front)
    – 2 x USB 3.2 Gen2 Type-A (Rear)
    – 10 x USB 3.2 Gen1 (6 Rear, 4 Front)
    – 6 x USB 2.0 (2 Rear, 4 Front)

    *All USB ports support ESD Protection
  • Connector
    – 1 x SPI TPM Header
    – 1 x Power LED and Speaker Header
    – 1 x RGB LED Header*
    – 3 x Addressable LED Headers**
    – 1 x CPU Fan Connector (4-pin)***
    – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    – 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    – 1 x 12V 6 pin Power Connector for Fast Charging (Hi-Density Power Connector)
    – 1 x Front Panel Audio Connector
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)******
    – 1 x Clear CMOS Button
    – 1 x Dr. Debug with LED
    – 1 x Power Button with LED
    – 1 x Reset Button with LED

    *Supports in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1 supports the fan power up to 1A (12W).

    ****CPU_FAN2/WP_3A supports the fan power up to 3A (36W).

    *****CHA_FAN1~6/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP_3A and CHA_FAN1~6/WP can auto detect if 3-pin or 4-pin fan is in use.

    ******Supports USB PD 3.0 up to 20V@3A (60W) fast charging when you install PSU’s Power Cable to the 12V 6 pin Power Connector. If the 12V 6 pin Power Connector is not plugged, this header supports USB PD 3.0 up to 9V@3A (27W) fast charging.

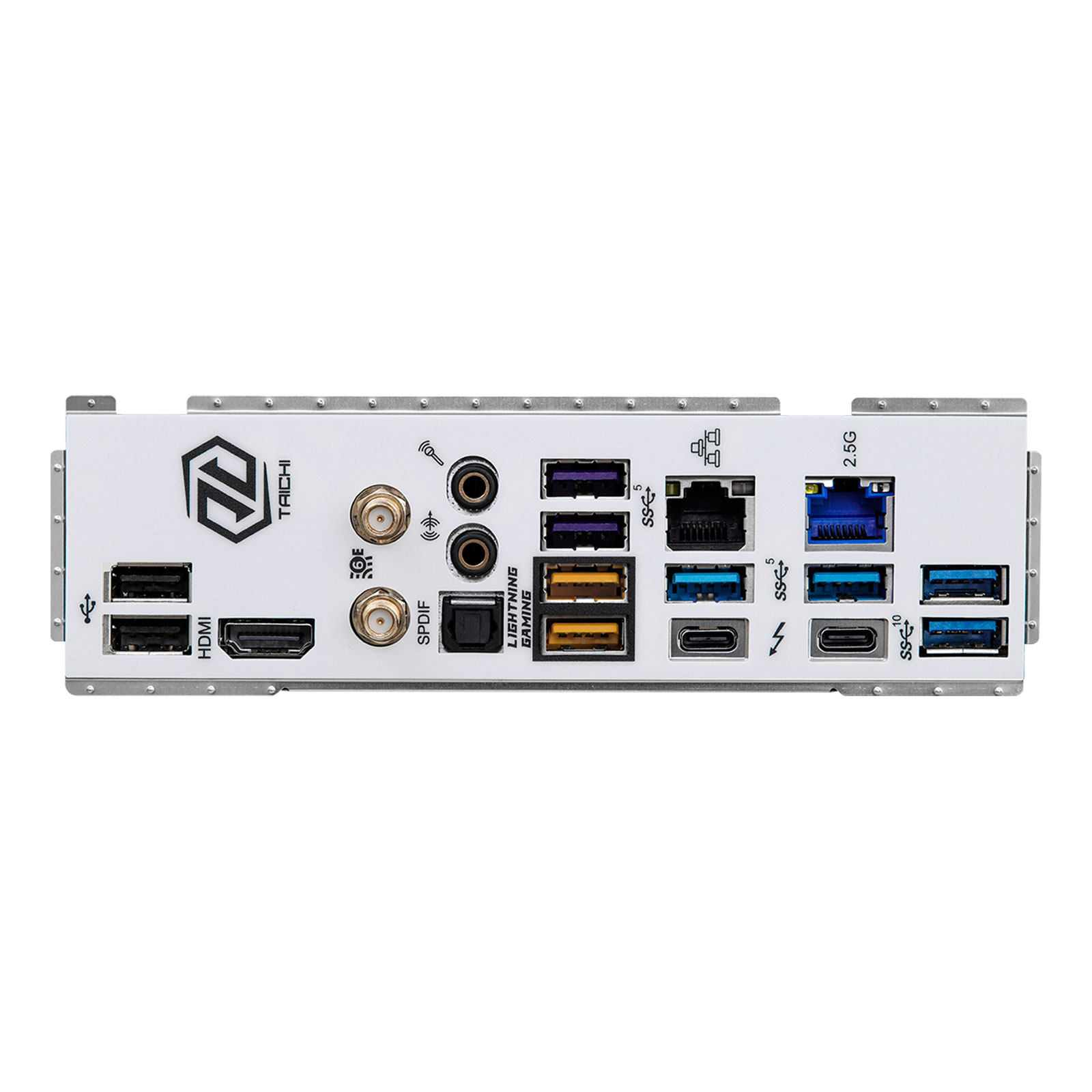

  • Rear Panel I/O
    – 2 x Antenna Ports
    – 1 x HDMI Port
    – 1 x Optical SPDIF Out Port
    – 2 x USB4 Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
    – 2 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
    – 6 x USB 3.2 Gen1 Ports (USB32_12 are Lightning Gaming Ports. USB32_34 support Ultra USB Power.)
    – 2 x USB 2.0 Ports
    – 2 x RJ-45 LAN Ports
    – 1 x Line Out Jack (Gold Audio Jack)
    – 1 x Microphone Input Jack (Gold Audio Jack)

    *Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging
  • Software and UEFI
    Software
    – ASRock Motherboard Utility (A-Tuning)
    – Killer Control Center
    – ASRock Polychrome SYNC*
    UEFI
    – ASRock EZ Mode
    – ASRock Full HD UEFI
    – ASRock My Favorites in UEFI
    – ASRock Auto Driver Installer
    – ASRock Instant Flash
    – ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    – 1 x User Manual
    – 4 x SATA Data Cables
    – 1 x Wireless Dongle USB Bracket
    – 1 x 12CM Carrara Edition Cooling FAN
    – 1 x ASRock WiFi 2.4/5/6 GHz Antenna
    – 4 x Screws for M.2 Sockets
  • Form Factor
    – EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
    – 8 Layer PCB
  • OS

    – Microsoft® Windows® 10 64-bit / 11 64-bit

    *Windows® 10 only supports version 21H2 or later
  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)
    – CEC Tier II ready
