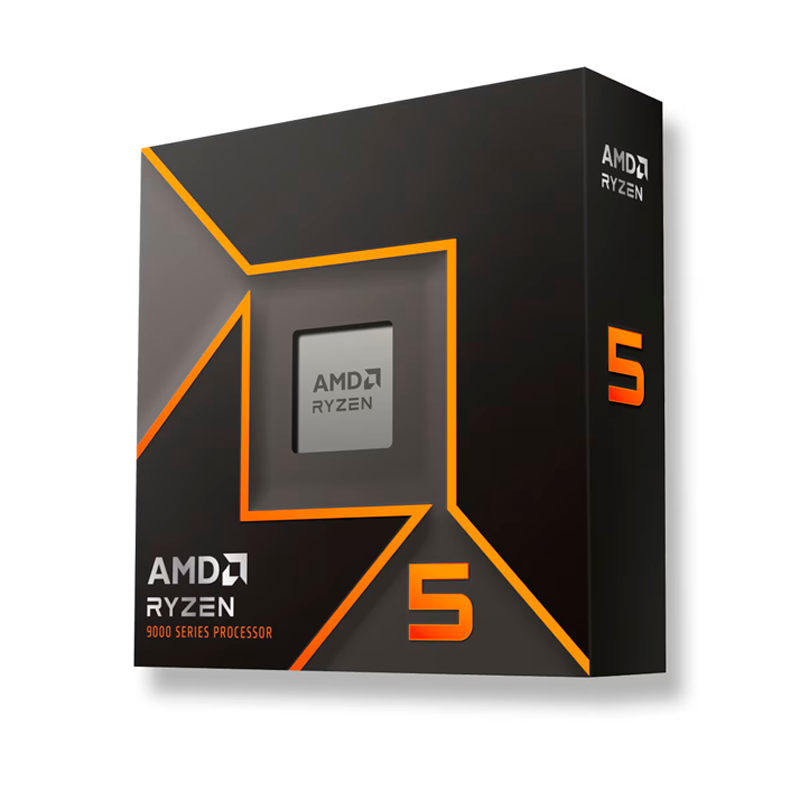

Processor AMD Ryzen 5 9600X
- Name AMD Ryzen™ 5 9600X
- Family – Ryzen
- SeriesRyzen 9000 Series
- Architecture – Zen 5
- No. of CPU Cores – 6
- Multiple Threads (SMT) – Yes
- No. of Threads – 12
- Max Turbo Clock – Up to 5.4 GHz
- Base Clock – 3.9 GHz
$257 exc. VAT
NameAMD Ryzen™ 5 9600X
FamilyRyzen
SeriesRyzen 9000 Series
Form FactorDesktops , Boxed Processor
Market SegmentEnthusiast Desktop
AMD PRO TechnologiesNo
Consumer UseYes
Regional AvailabilityGlobal
Former CodenameGranite Ridge AM5
ArchitectureZen 5
# of CPU Cores6
Multithreading (SMT)Yes
# of Threads12
Max. Boost Clock Up to 5.4 GHz
Base Clock 3.9 GHz
L1 Cache480 KB
L2 Cache6 MB
L3 Cache32 MB
Default TDP65W
Processor Technology for CPU CoresTSMC 4nm FinFET
Processor Technology for I/O DieTSMC 6nm FinFET
Package Die Count2
Unlocked for Overclocking Yes
AMD EXPO™ Memory Overclocking TechnologyYes
Precision Boost OverdriveYes
Curve Optimizer Voltage OffsetsYes
AMD Ryzen™ Master SupportYes
CPU SocketAM5
Supporting ChipsetsA620 , X670E , X670 , B650E , B650 , X870E , X870
CPU Boost TechnologyPrecision Boost 2
Instruction Setx86-64
Supported ExtensionsAES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB)Not Included
Recommended CoolerPremium air cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)95°C
*OS SupportWindows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
-
Connectivity
Native USB 3.2 Gen 2 (10Gbps) Ports4Native USB 2.0 (480Mbps) Ports1PCI Express® VersionPCIe® 5.0Native PCIe® Lanes (Total/Usable)28 , 24Additional Usable PCIe Lanes from MotherboardX870E8x Gen4X8704x Gen4X670E12x Gen4X67012x Gen4B650E8x Gen4B6508x Gen4NVMe SupportBoot , RAID0 , RAID1 , RAID5 , RAID10System Memory TypeDDR5Memory Channels2Max. Memory192 GBSystem Memory SubtypeUDIMMMax Memory Speed2x1RDDR5-56002x2RDDR5-56004x1RDDR5-36004x2RDDR5-3600ECC SupportYes (Requires mobo support)
Graphics ModelAMD Radeon™ Graphics
Graphics Core Count2
Graphics Frequency2200 MHz
USB Type-C® DisplayPort™ Alternate ModeYes
