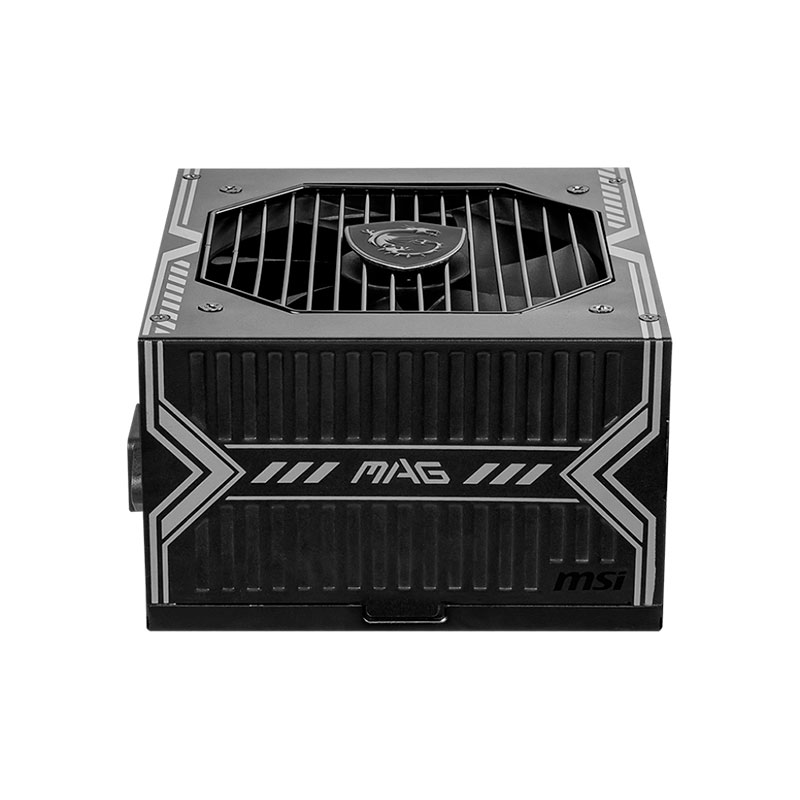

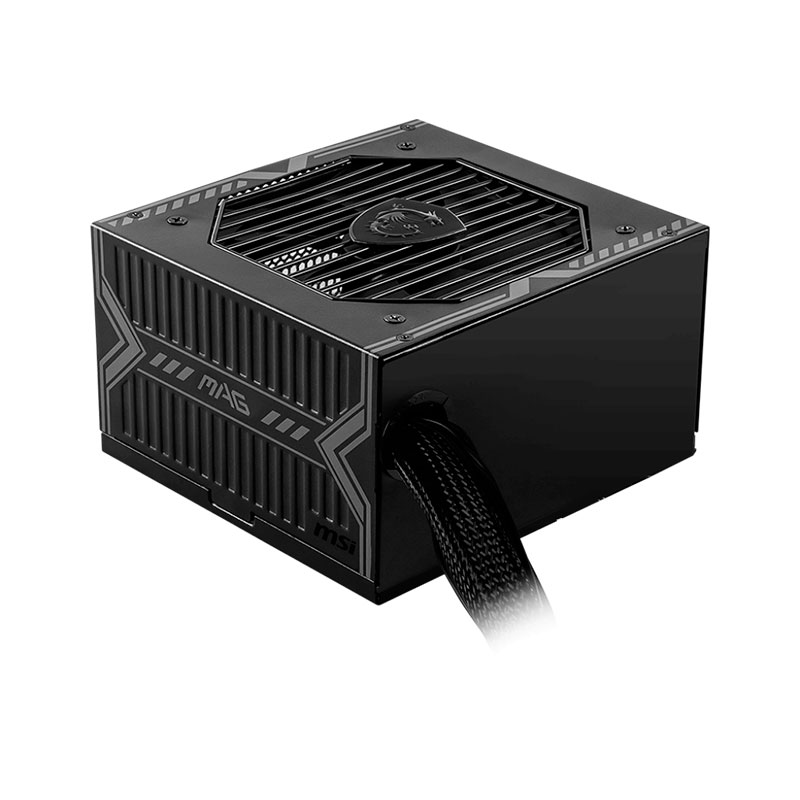

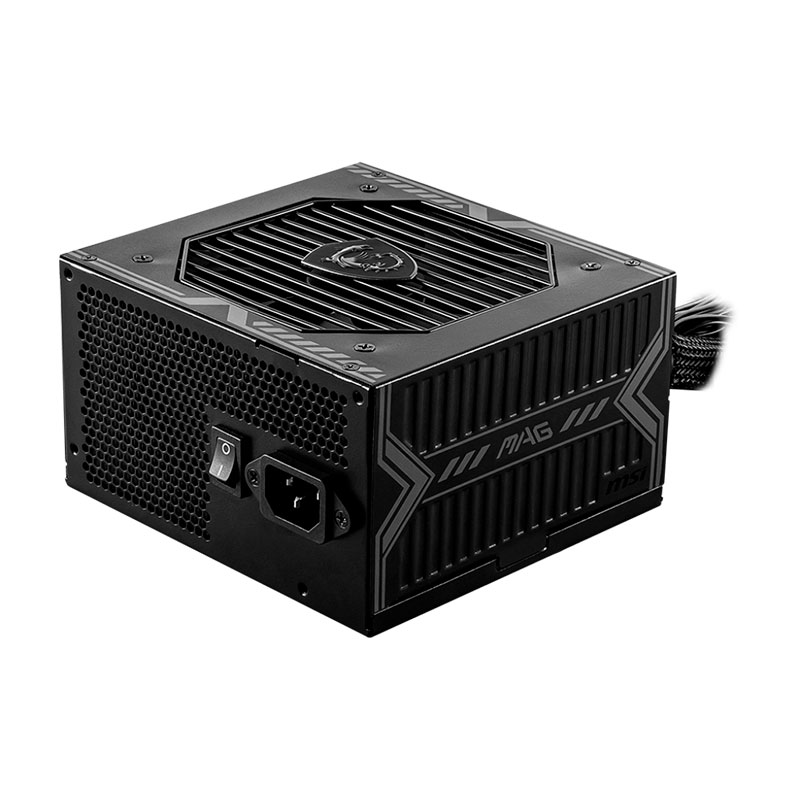

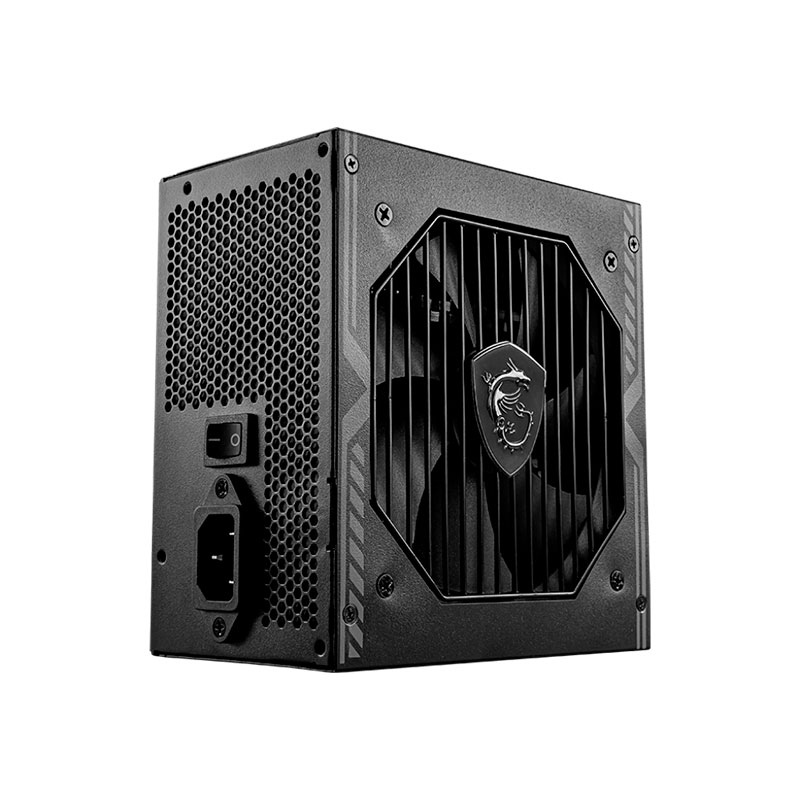

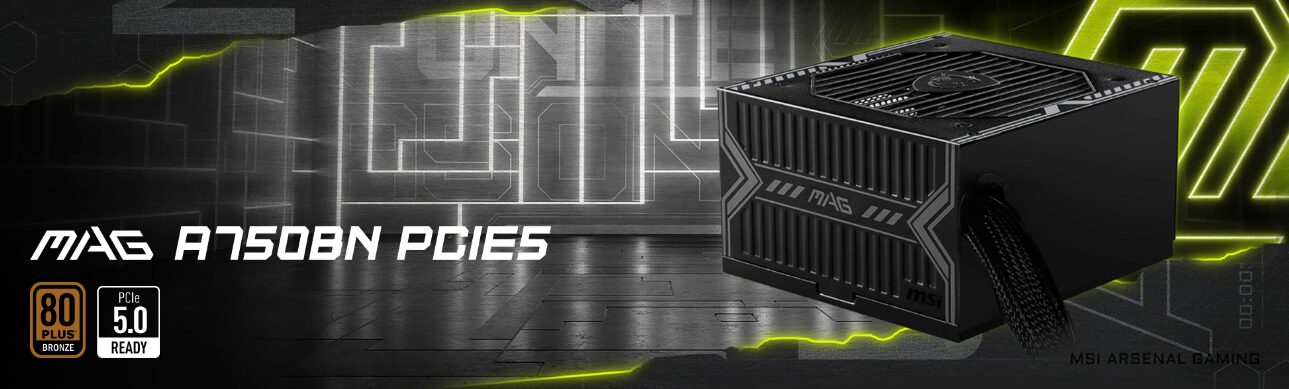

PSU MSI MAG A750BN PCIE5 750W BRONZE

The MAG A750BN PCIE5’s distinctive design patterns symbolize unity and strength.
It unites all the components by reliably and stably supplying power to the entire system.
With the MAG A750BN PCIE5’s , any system has the power it needs to survive all challenges.

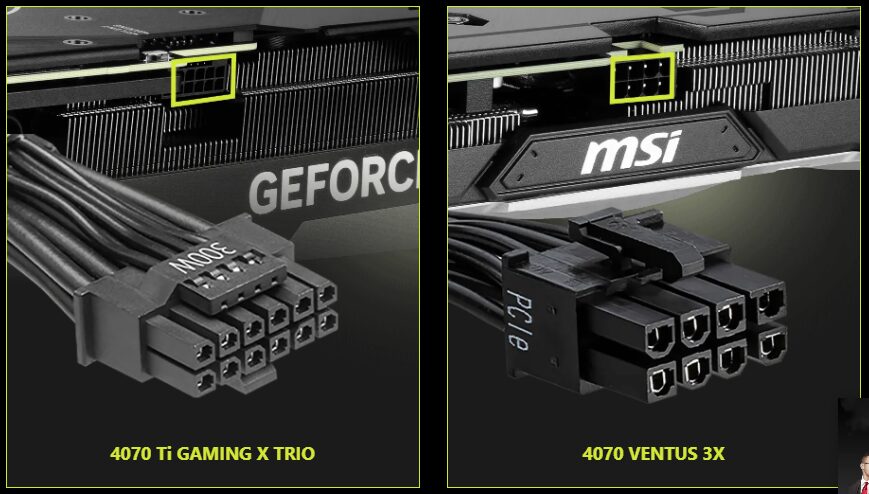

PCIE5.0 READY

It has an output port that is compliant with PCIe 5.0, enabling to support the RTX 4070* series graphics cards.

*RTX 4070Ti SUPRIM X 12 G is not compatible.

80 PLUS BRONZE CERTIFICATION

The efficiency of your power supply directly influences your system’s performance
and power consumption. The 80 PLUS certification promises lower energy consumption and qualified efficiency level.

PROTECTION DEISGN

Protection is designed to protect the unit mechanisms and provides comprehensive protection.

TEMPERATURE ADAPTATION

Engineered for reliability, your system operates safely at peak performance even
in high-temperature conditions. This rugged power supply ensures sustained operation regardless of your environment.

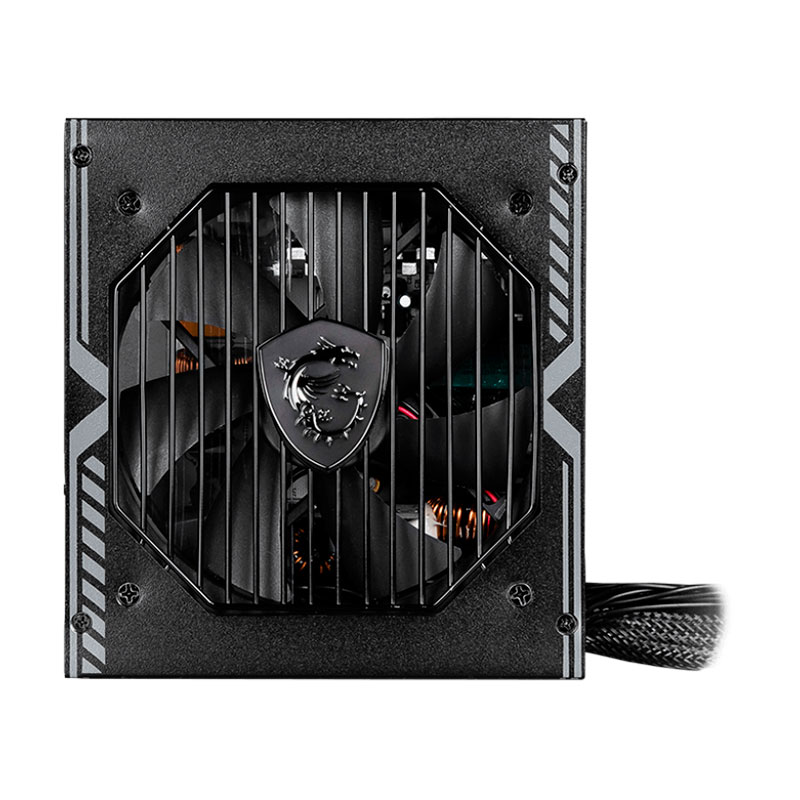

120MM LOW NOISE FAN

The 120mm fan reduces the noise generated while maintaining excellent heat dissipation.

• EFFICIENCY RATING – 80 PLUS Bronze (up to 85%)
• MODULAR – No
• FAN SIZE – 120 mm
• FAN BEARING – Sleeve Bearing
• DIMENSIONS (DXWXH) – 140mm x 150mm x 86mm / 5.51 x 5.9 x 3.38 inches
• PFC TYPE – Active PFC
• INPUT VOLTAGE RANGE – 100-240~
• POWER WATT – 750W
• INPUT FREQUENCY RANGE – 50~60Hz
• PROTECTION – OCP, OVP, OPP, OTP, SCP

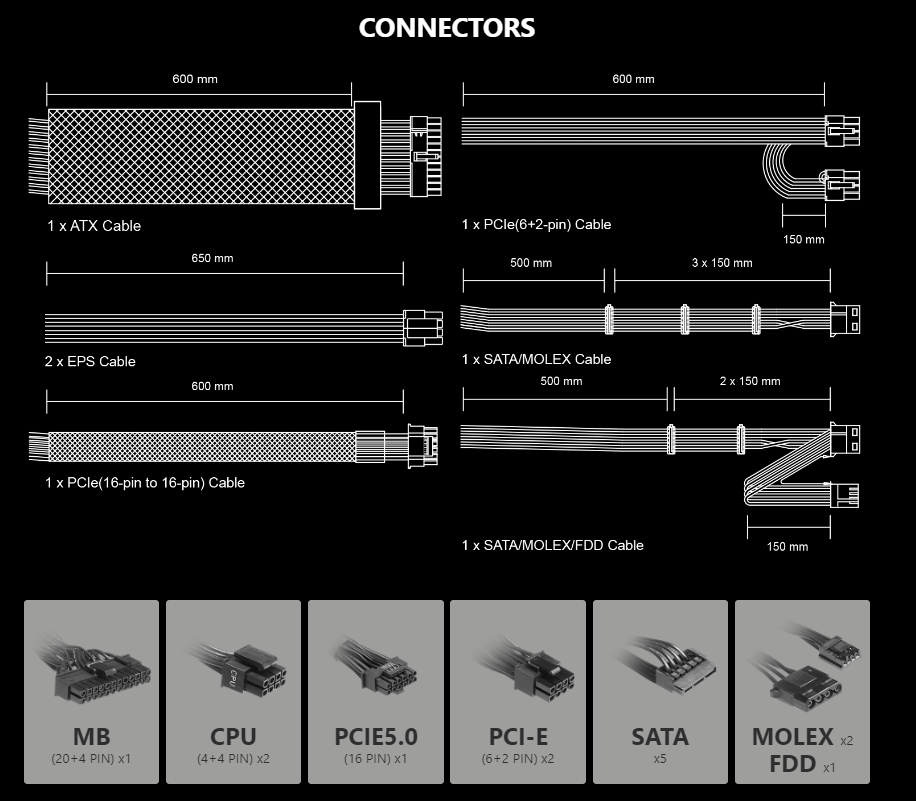

• ATX (24 PIN) – 1
• EPS (4+4 PIN) – 2
• PCI-E 5.0 (16 PIN) – 1(300W)
• PCI-E (6+2 PIN) – 2
• SATA (15 PIN) – 5
• MOLEX (4 PIN) – 2
• FDD (4 PIN) – 1
