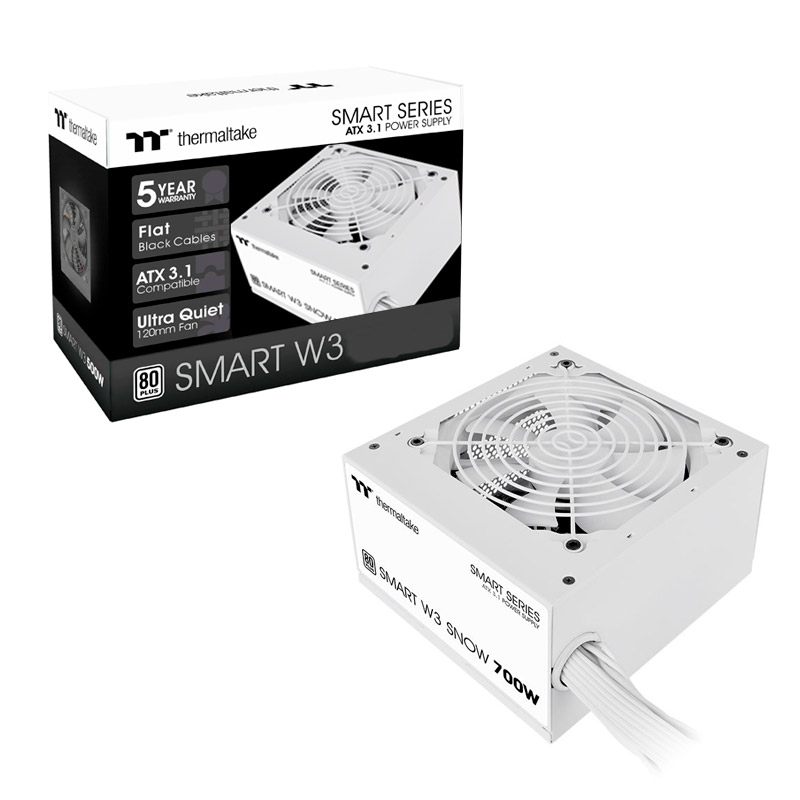

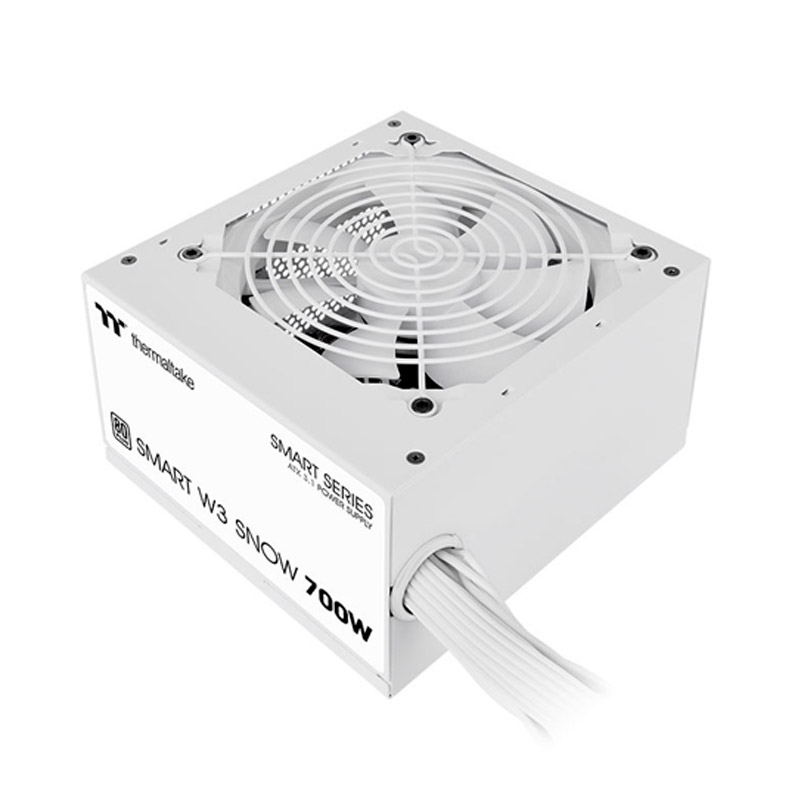

Thermaltake Smart W3 Series Snow 80Plus 700W Power Supply
- Intel ATX 3.1 Compatibility & 80 PLUS Certification: Supports Intel ATX 3.1 standards with 200% power excursion and 60% low load efficiency. 80 PLUS certified for up to 80% efficiency, reducing energy waste.
- High-Quality Capacitor & Reliable Output: 105°C/221°F capacitor ensures durability and stability. Provides 700W continuous power at 40°C/104°F.
- Ultra-Quiet 120mm Cooling Fan: Offers excellent airflow with minimal noise.
- Low-Profile Flat Cables & Compact Design: Simplifies cable management and fits easily into most cases with compact dimensions.
- Industry Grade Protections & Energy Efficiency: Features OCP, OVP, UVP, OPP, SCP, and OTP protections. Supports Intel C6/C7 states and ErP for better energy efficiency.
$78 exc. VAT
Empowering with Efficiency and Stability
The Smart W3 Snow is 80 PLUS efficiency certified and is designed to meet ATX 3.1 standards.
It is perfect for users on a budget who are looking for an efficient and reliable basic power supply.
ATX 3.1 compatible
Smart W3 Snow is fully compatible with ATX 3.1 specifications, which support up to 200% power excursion,
achieves 60% efficiency under low load, and meets the required power supply synchronization standards.

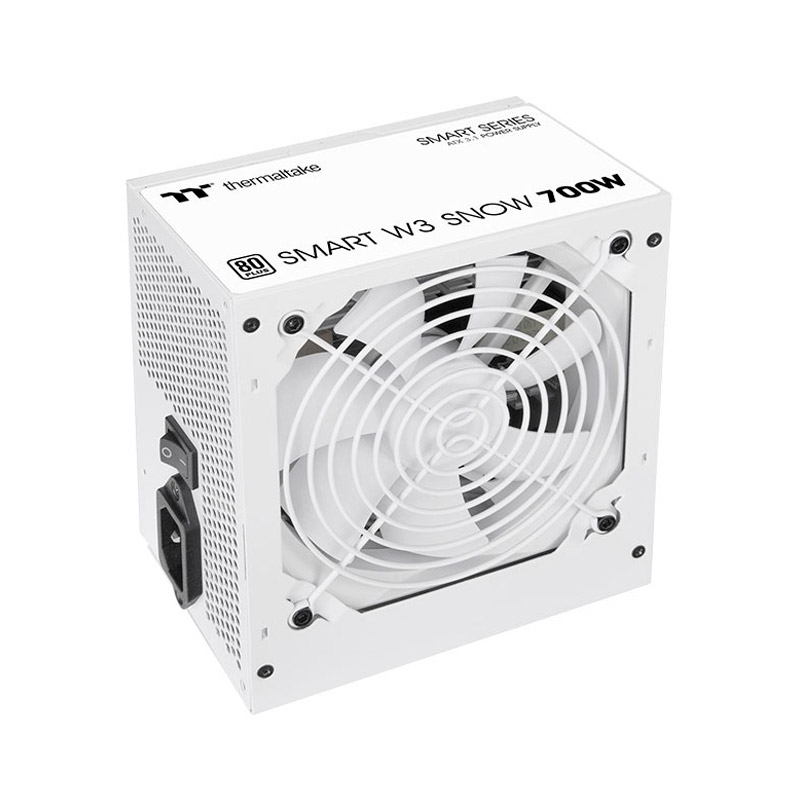

Stay silent
The ultra-quiet 120mm cooling fan provides excellent airflow with exceptionally low noise.

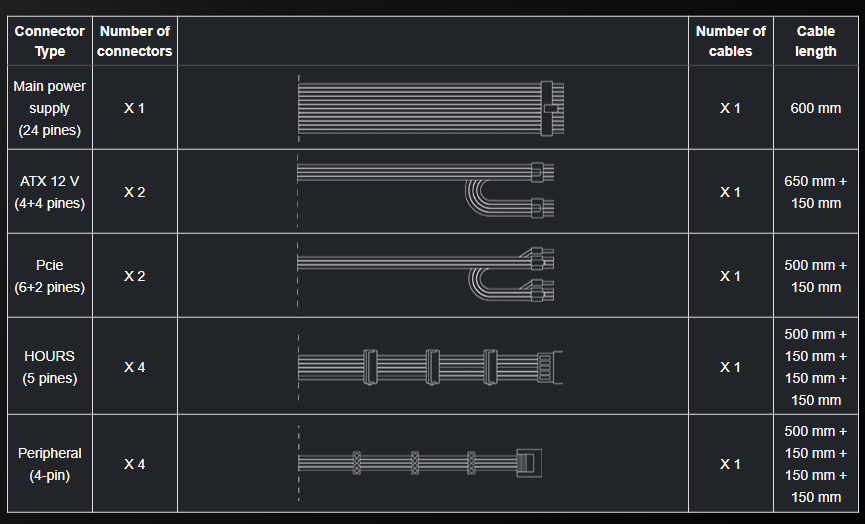

Non-modular soft cable design
The Smart W3 series comes with soft black cables, designed to make cable installation an easy task while also fully powering the system at optimal voltages.
Built-in industrial-grade protection
To protect the hardware, Smart W3 Snow is built with industrial-grade protections: OCP (overcurrent protection),
OVP (overvoltage protection), UVP (undervoltage protection), OPP (overload protection), SCP (short circuit protection), OTP (over-temperature protection).
80 PLUS certified and compatible with Intel C6/C7 states
The Smart W3 series saves energy thanks to its high energy efficiency of up to 80% and is 80 PLUS® certified.
It has been optimized to work with all generations of Intel processors for maximum energy savings.
| Watts | 700 watts |
|---|---|
| Model | SP3-700AH2NLW |
| Maximum output capacity | 700 watts |
| Color | White |
| Dimensions (W/H/D) | 150 mm (width) x 86 mm (height) x 140 mm (depth) |
| PFC (Power Factor Correction) | Active PFC |
| Good power signal | 100-150 ms |
| Waiting time | > 17ms at 80% load |
| Input Current | 12A – 6A |
| Input frequency range | 50 Hz/60 Hz |
| Input Voltage | 100-240 V～ |
| Operating Temperature | 5°C to +40°C |
| Operating humidity | 20% to 85%, non-condensing |
| Storage temperature | -40°C to +55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 12 cm FDB fan |
| Efficiency | Meet 80 PLUS® with 115V AC input. |
| Mean time between failures | 100,000 hours minimum |
| Security Approval | CB/FCC/cTUVus/ICES/UKCA/CE/LVD/RCM |
| 6+2 pin PCI-E | 2 |
| Protection | OCP/OVP/UVP/OPP/OTP/SCP |
