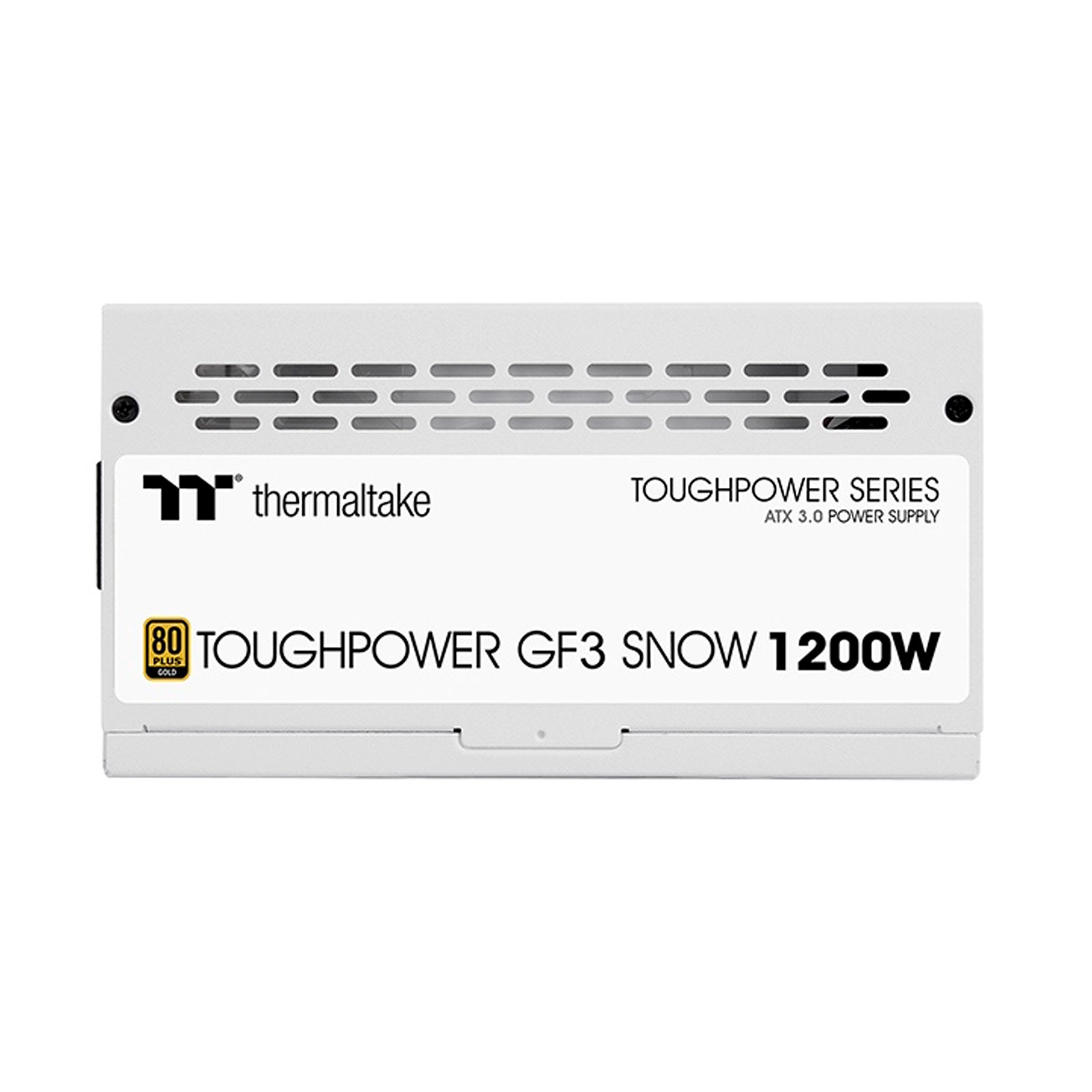

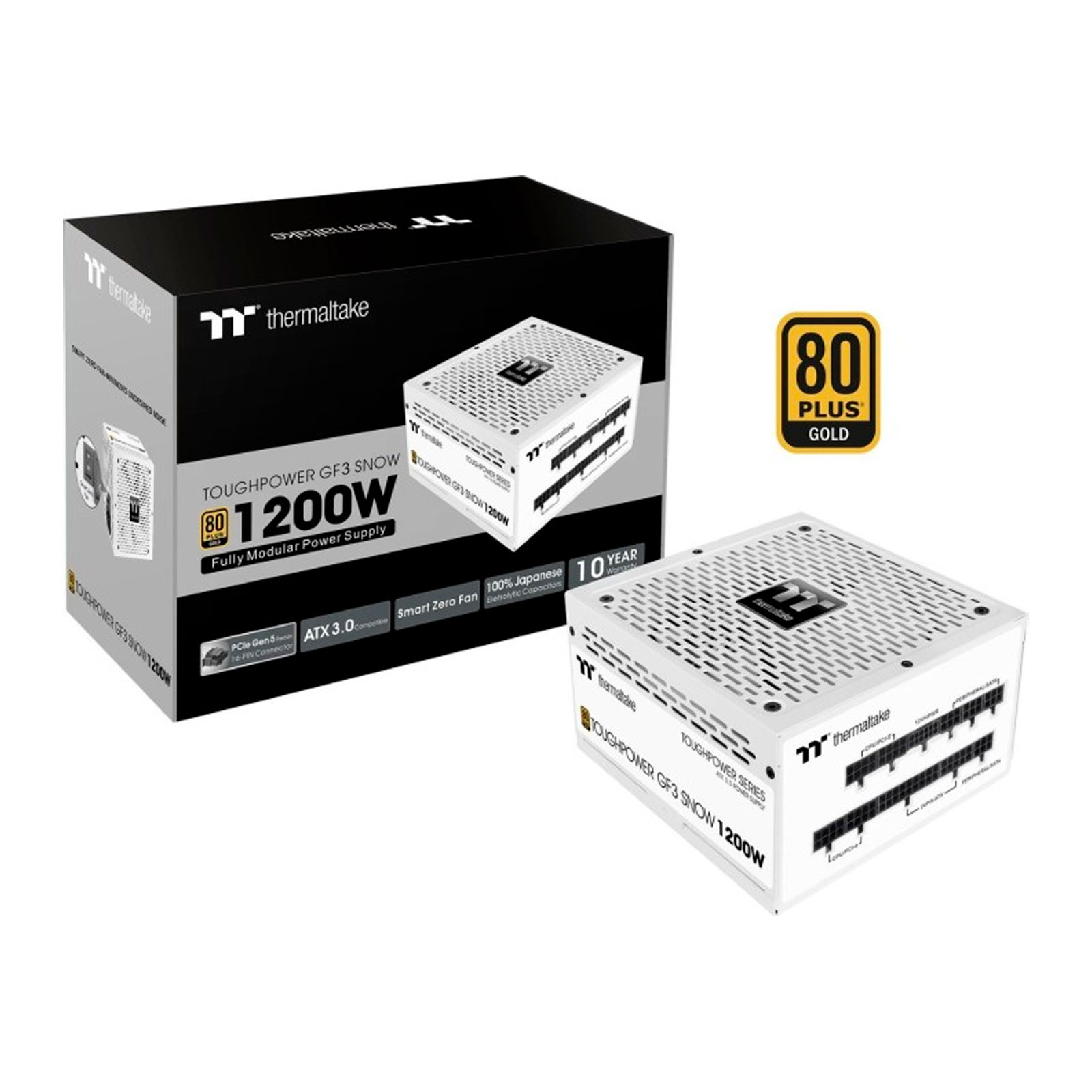

Thermaltake Toughpower GF3 Snow 1200W GOLD

Power Up the Next Generation Hardware

Designed with a native PCIe 12+4pin modular connector, the Toughpower GF3 Snow series
is built for next-gen PCIe 5.0 graphics cards and is compatible with Intel ATX 3.0 specifications.
The GF3 Snow series delivers 80 PLUS Gold efficiency, it also offers stability, durability, and reliability.

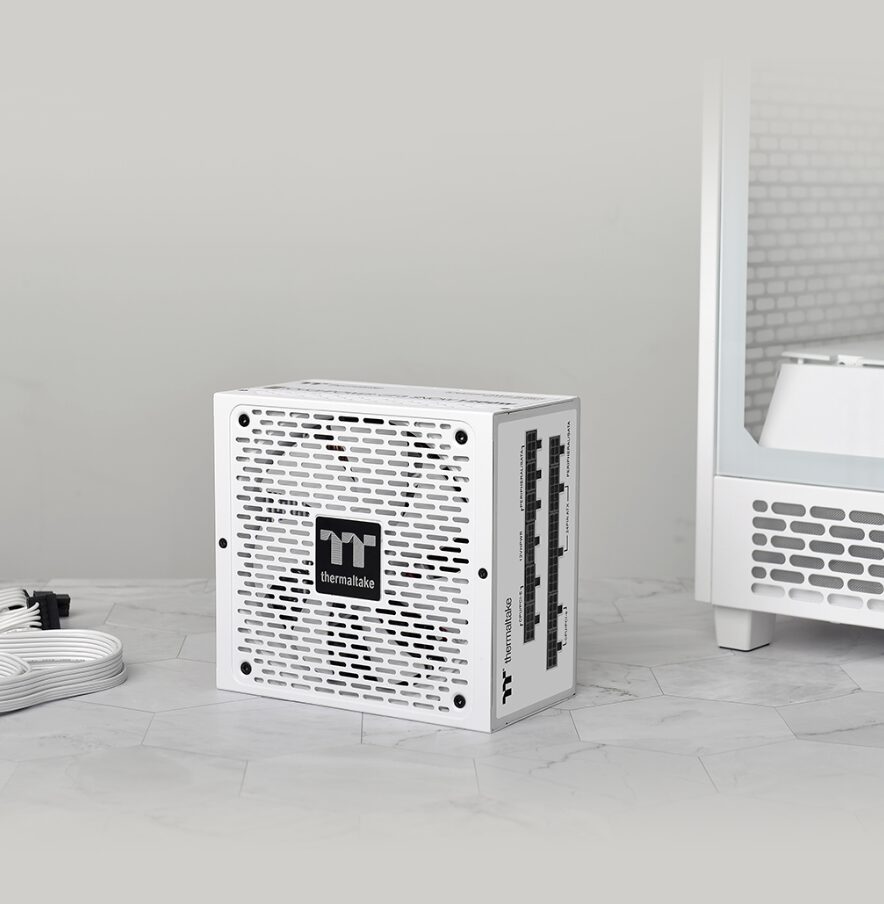

For users who crave for a pure white build, this power supply can definitely meet their demands.

Fully Compatible with Intel ATX 3.0 Standards

Toughpower GF3 Snow series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion,
reaches 60% low load efficiency and complies with required power supply timing standards.

PCIe Gen 5.0 Ready

Toughpower GF3 Snow series comes with a 12+4pin connector to offer powerful
and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the 12VHPWR’s connector is the recommended wattage.
(Ref. Intel design guideline) The native 12+4pin (12VHPWR) PCIe connector of the GF3 Snow 1200W
can deliver up to 600W for PCIe 5.0 graphics cards.

Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards increase, so has their demand for power.

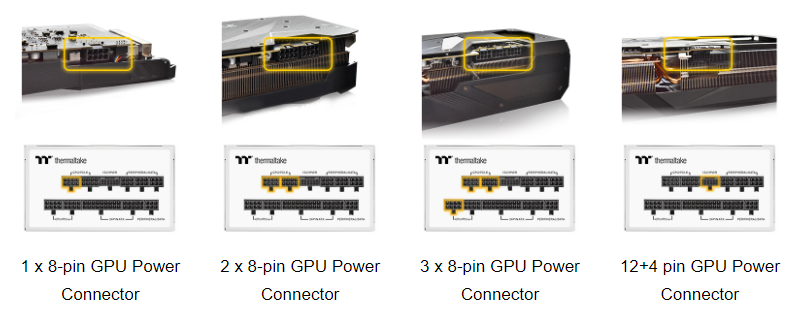

The GF3 Snow series is designed to support NVIDIA and AMD graphics cards, it supports 8-pin PCIe cables
for AMD graphics cards & entry RTX 40 series graphics cards, it also comes with a 1 x 12+4pin connector for RTX 40 series cards
that need a PCIe Gen 5.0 connector, ready to supply the graphics cards according to their different ways of connections.

Be Smart, Stay Quiet

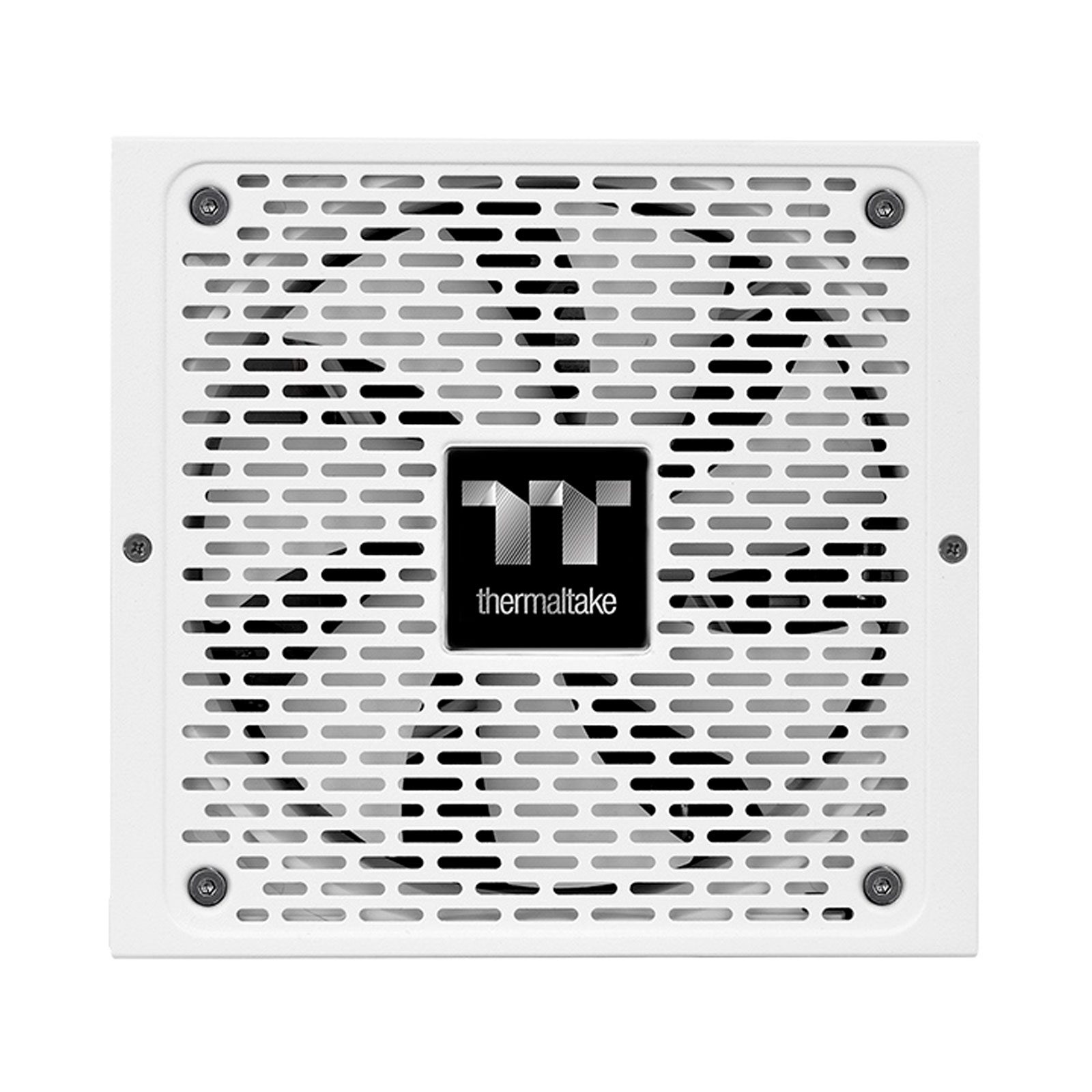

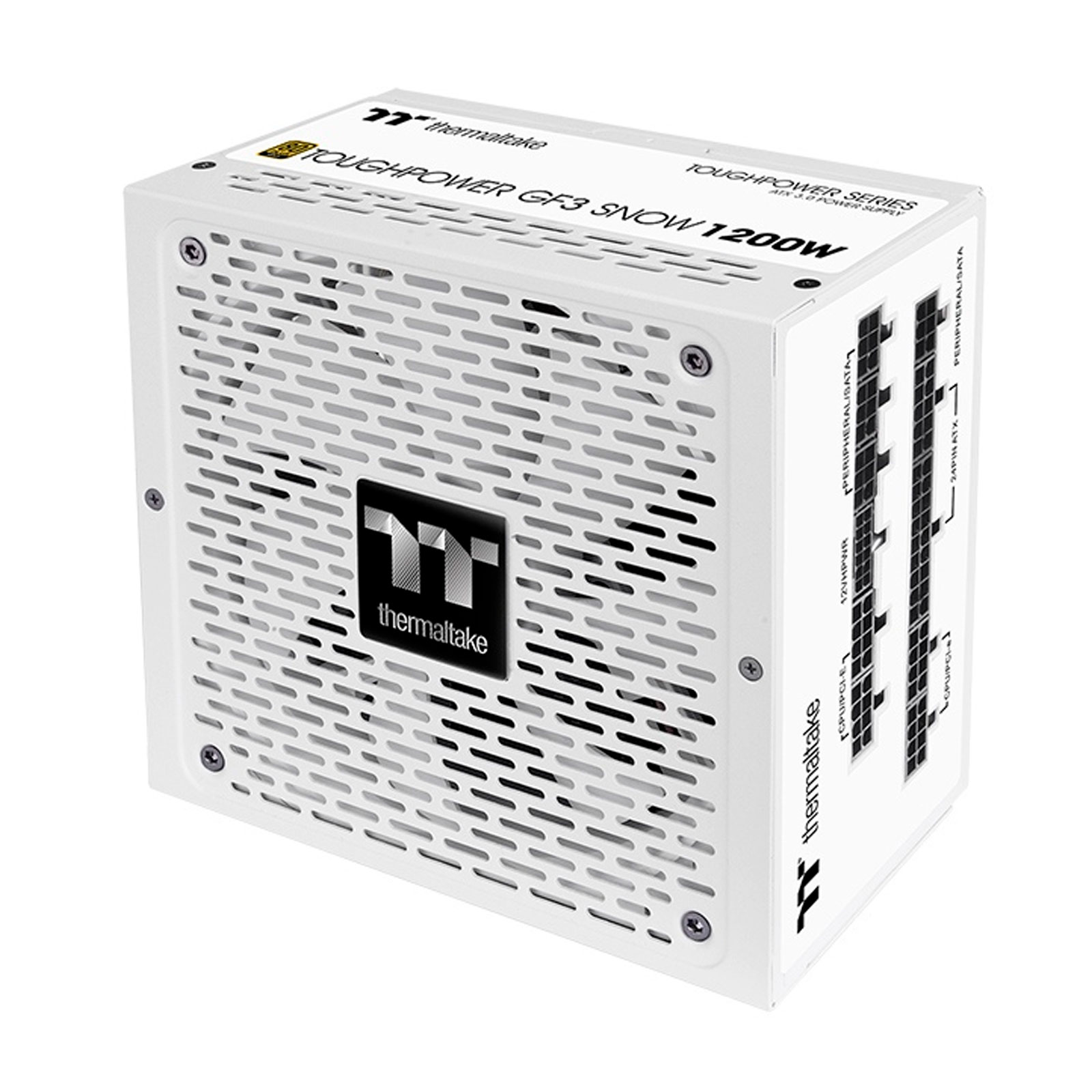

Features a 140mm fluid bearing fan to deliver excellent airflow. Furthermore,

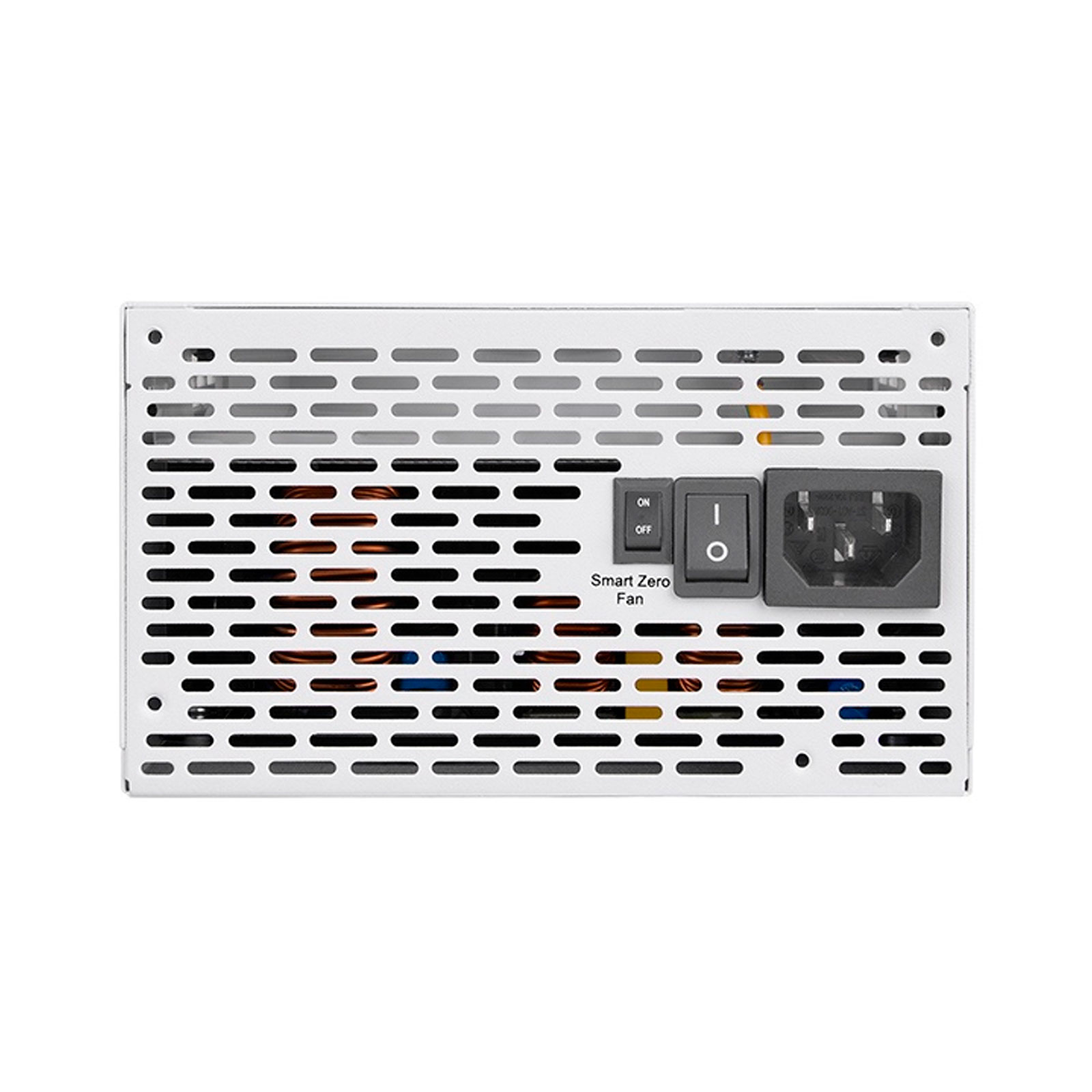

the Smart Zero Fan will the fan will not spin until the load exceeds 20% of the power supply, minimizing undesired noise.

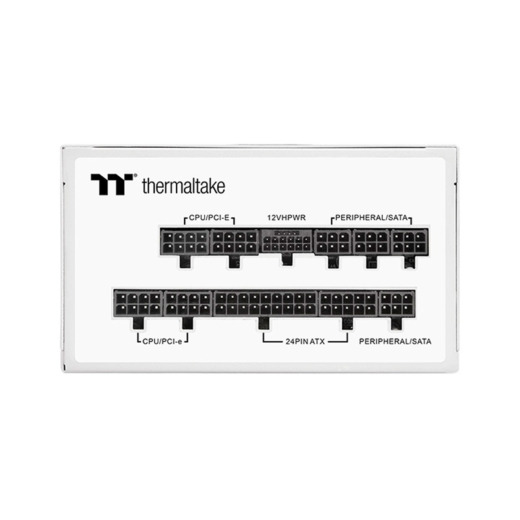

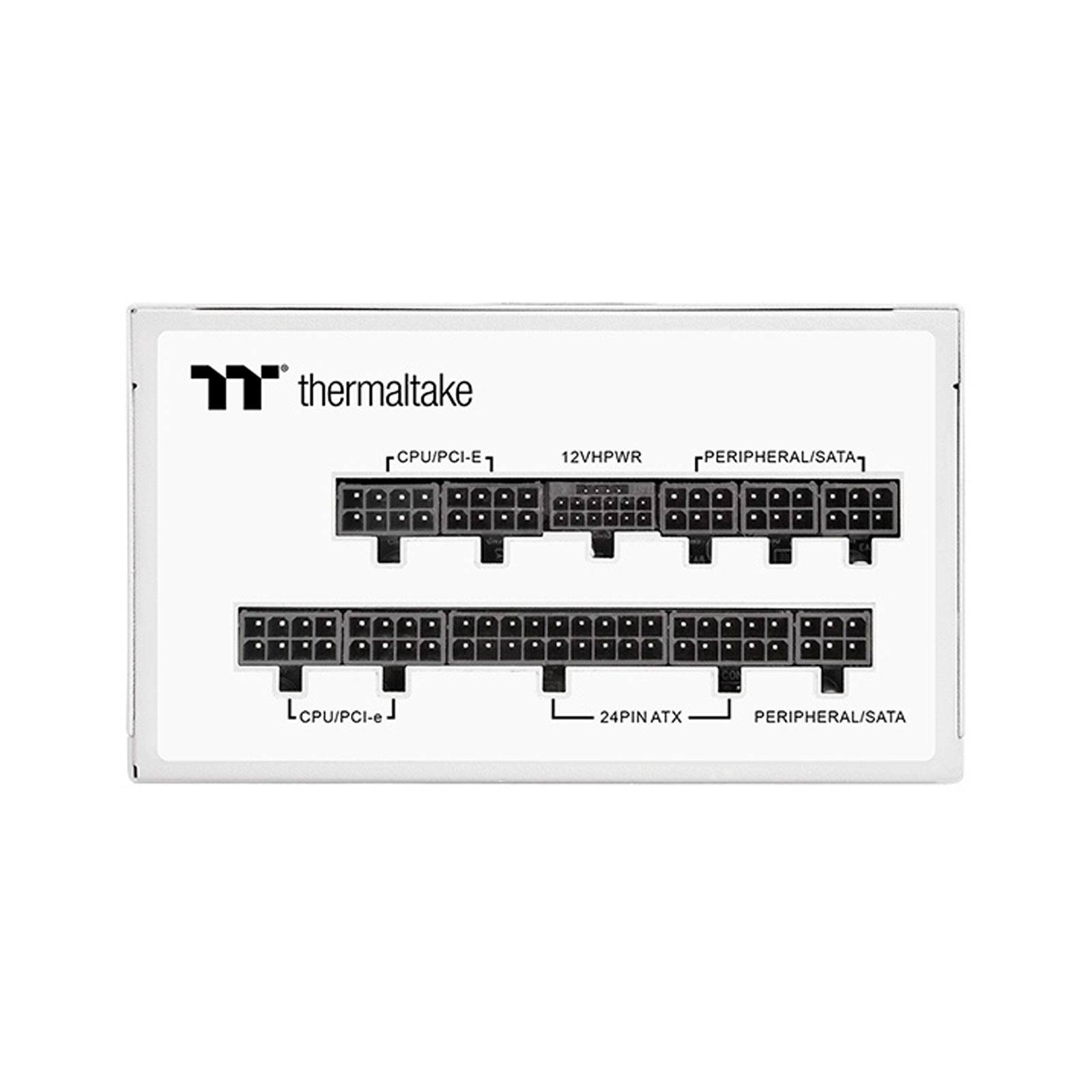

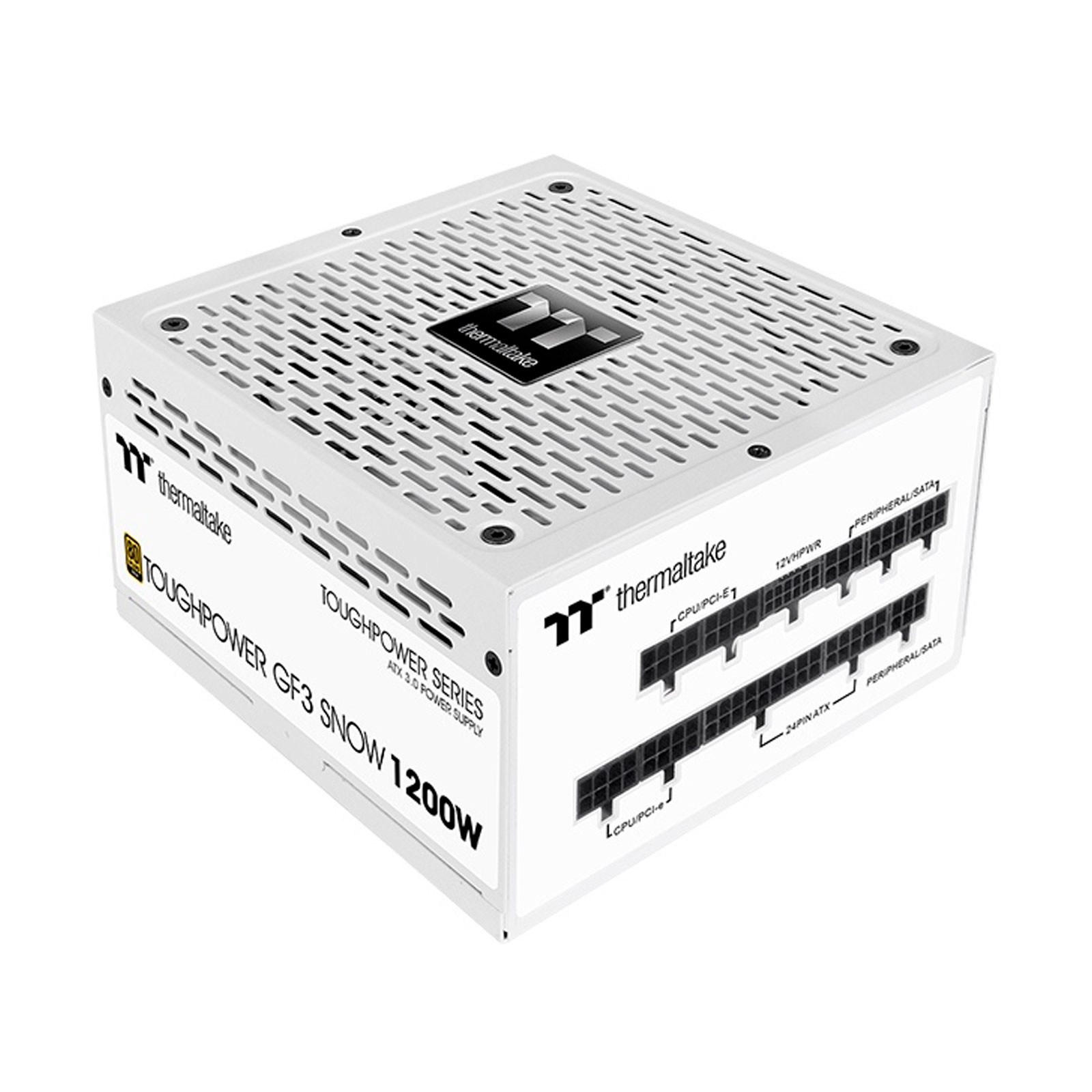

Fully Modular Low-Profile Flat Cables

Offers cable selection for users while powering the system at an advantageous voltage.
Low-profile black cables make cable management easier, reduces clutter and increases airflow inside the chassis.

Built-in Industrial Grade Protection

To protect the hardware, GF3 Snow Series is built with industry grade protections:
OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection),
OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

80 PLUS Gold Certified and Lake C6/C7 States Ready

Toughpower GF3 Snow Gold series saves energy through its high energy efficiency up to 90%
and is certified to 80 PLUS® Gold. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy savings.

P/N – PS-TPD-1200FNFAGE-N
WATTS – 1200W
MODELO – TPD-1200AH3FLG
MAX. OUTPUT CAPACITY – 1200W
COLOR – White
DIMENSION ( W / H / D ) – 150mm(W)x86mm(H)x160mm(D)
PFC (POWER FACTOR CORRECTION) – Active PFC
POWER GOOD SIGNAL – 100-150 msec
HOLD UP TIME – > 17msec
INPUT CURRENT – 20A-8A
INPUT FREQUENCY RANGE – 50Hz/60Hz
INPUT VOLTAGE – 100-240V～
OPERATING TEMPERATURE – 0°C to + 40°C
OPERATING HUMIDITY -20% to 85%,non-condensing
STORAGE TEMPERATURE – -40°C to + 55°C
STORAGE HUMIDITY – 10% to 95%, non-condensing
SISTEMA DE REFRIGERACIÓN – 14cm FDB Fan
EFFICIENCY – Meet 80 PLUS® Gold at 115Vac input.
MTBF – 100,000 hrs minimum
SAFETY APPROVAL – CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC/EAC

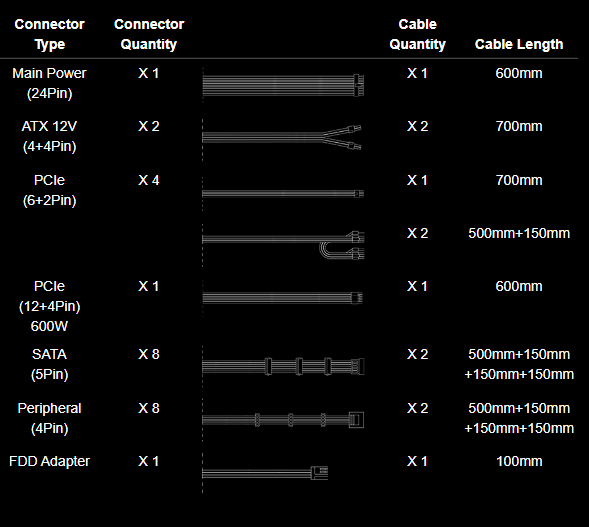

PCI-E 6+2PIN – 4
PCIE 12+4PIN – 1(600W)
PROTECTION – OCP/OVP/UVP/OPP/OTP/SCP
