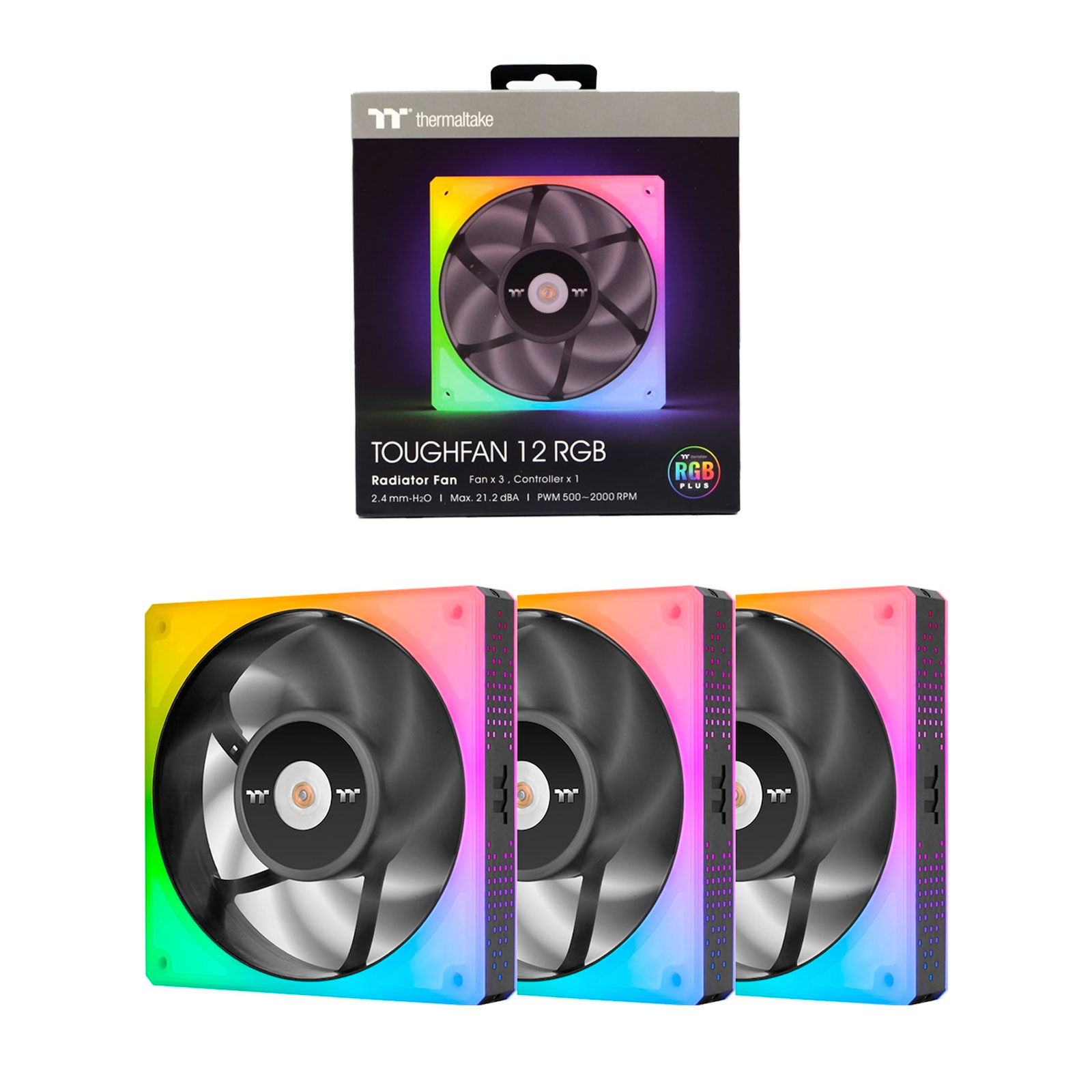

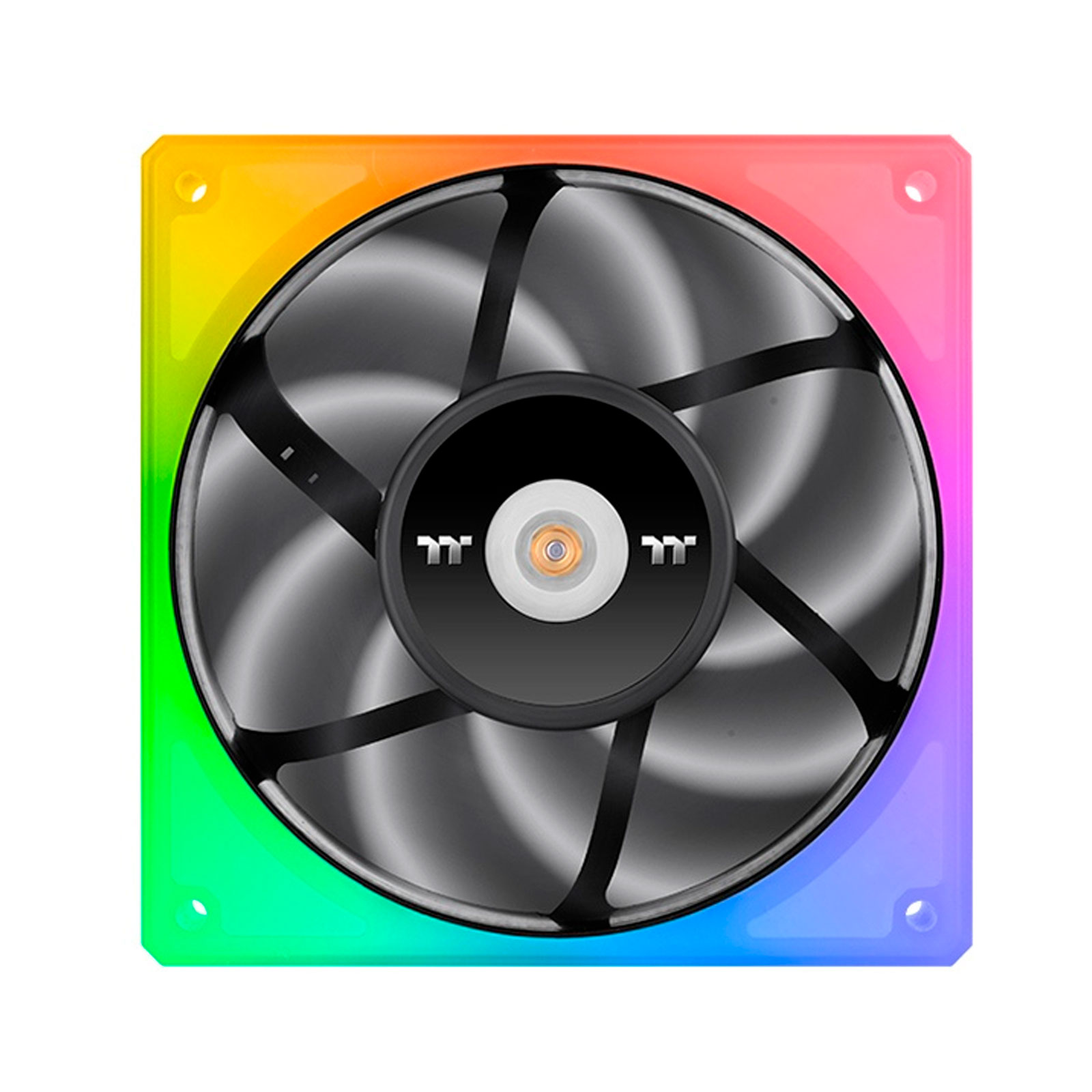

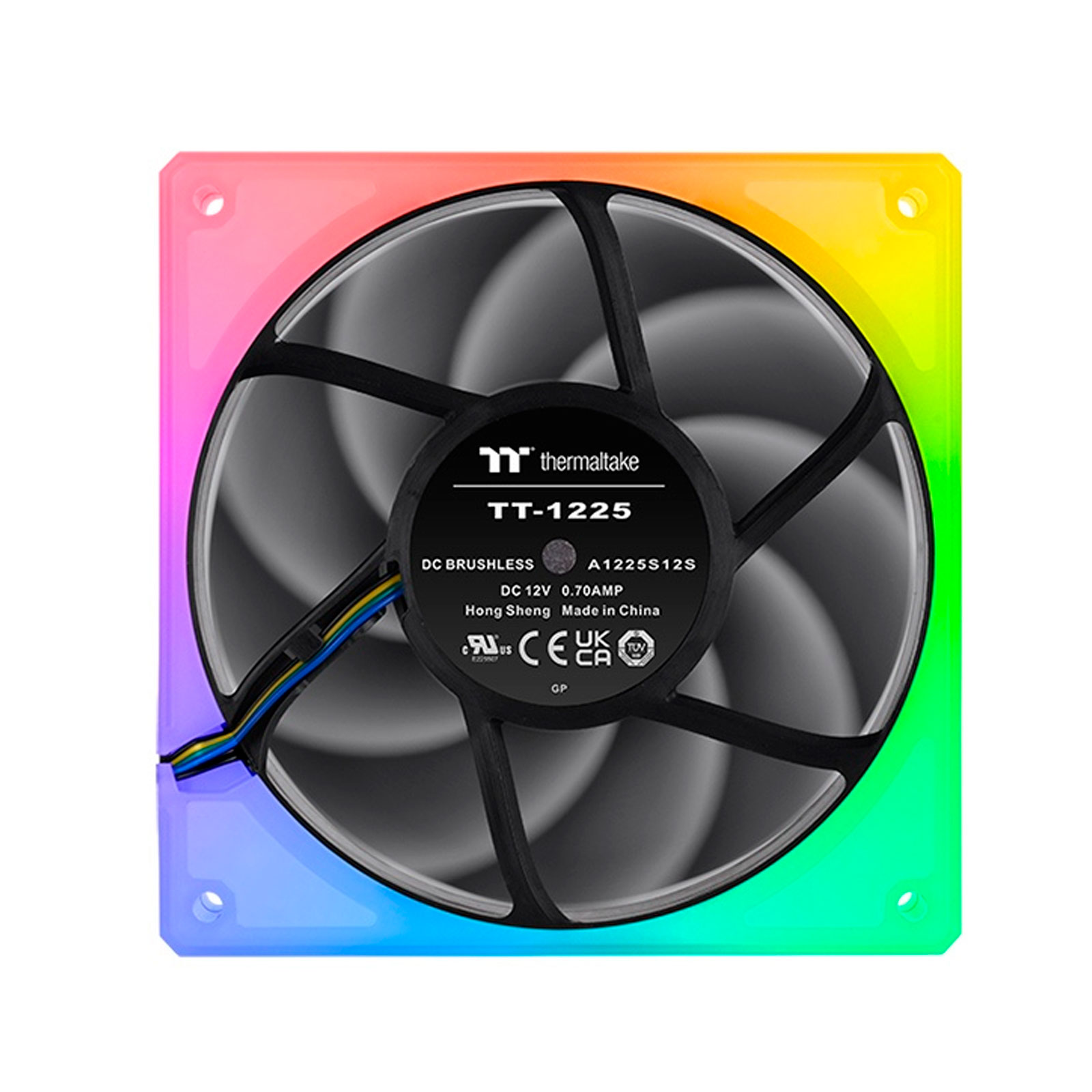

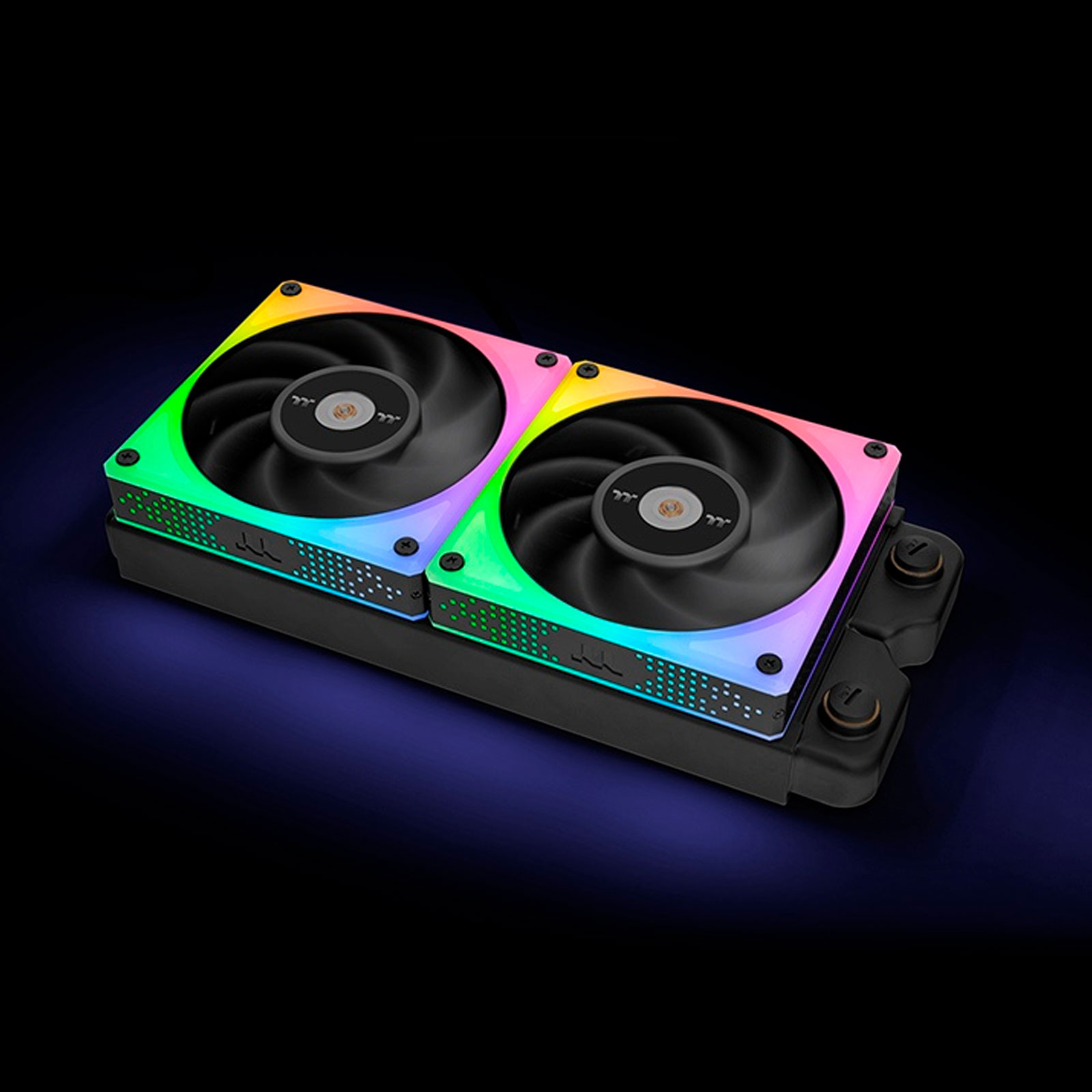

TOUGHFAN 12 RGB High Static Pressure Radiator Fan TT Premium Edition (3-Fan Pack)

We Brought RGB Lighting into the Game

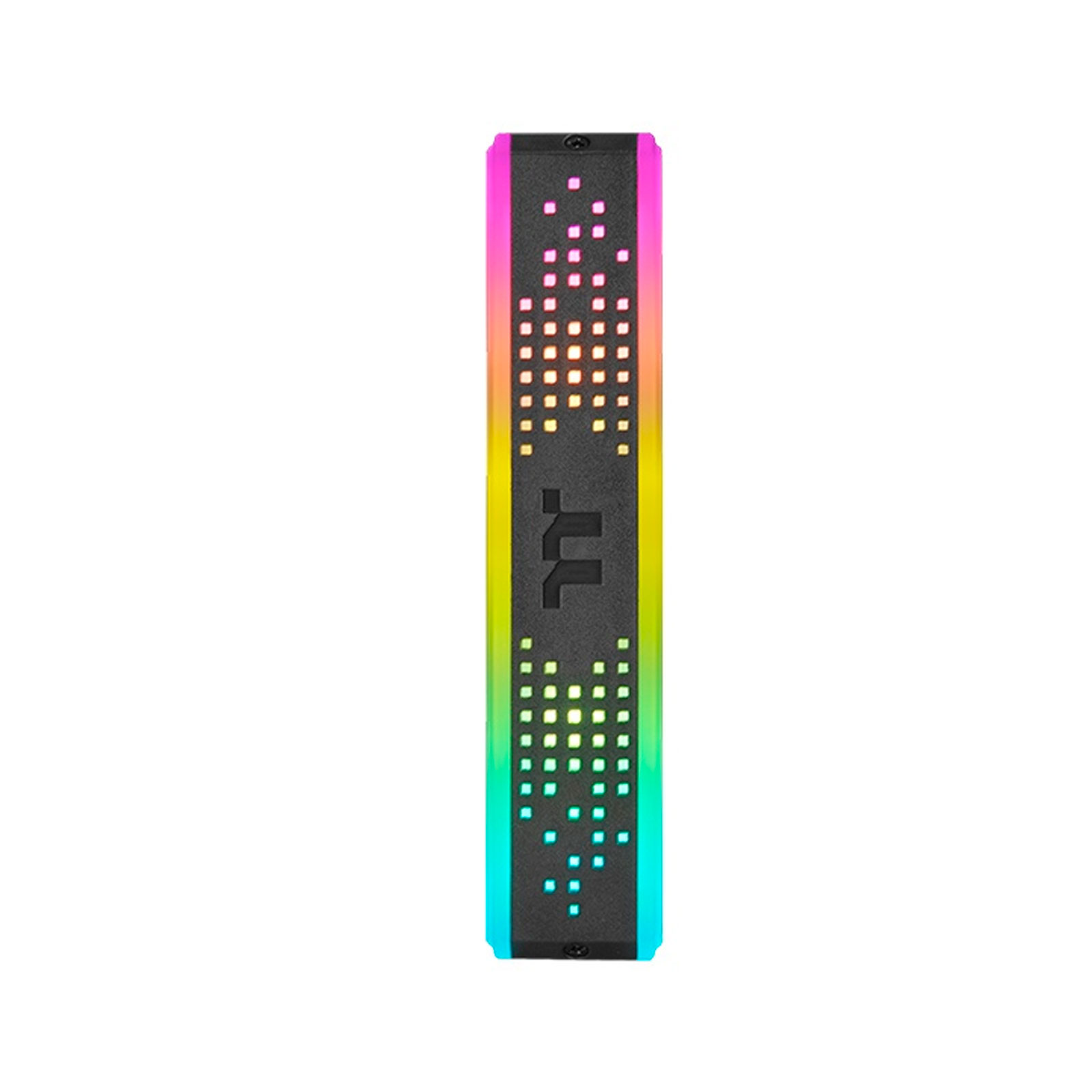

TOUGHFAN RGB is specially designed with a unique luminous fan frame with 24 addressable 16.8 million color LEDs
evenly distributed within its frame. TOUGHFAN RGB adds more personality to the TOUGHFAN
series and brings more lighting personalization options into your build.

Better User Experience and Better Lighting Effects

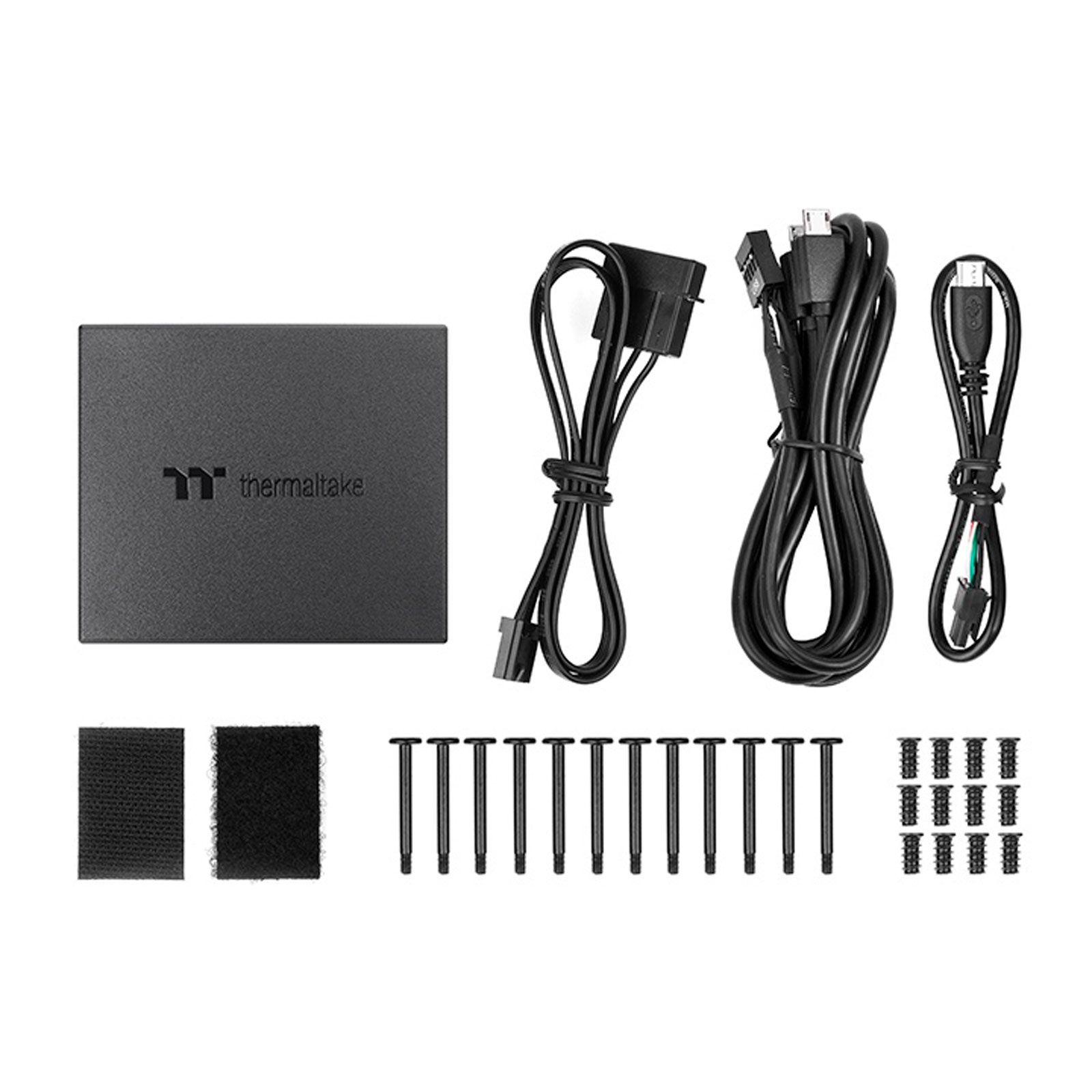

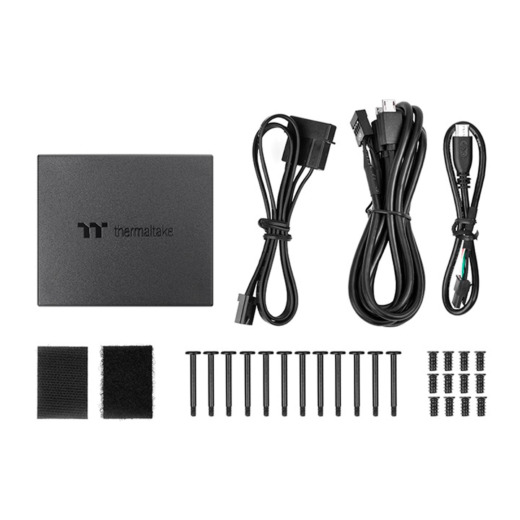

TOUGHFAN RGB adopts an all-new 4th generation software controller that can increase connection stability
while syncing up TT RGB Plus supported products, allowing 16.8M RGB color lighting effects to match with any theme you wish.

Caution: Due to voltage limitation, it is recommended not to connect more than 3 TOUGHFAN RGB/ SWAFAN/Riing Quad/Riing Trio fans
to a single controller. You can only add a maximum of 6 TOUGHFAN RGB/ SWAFAN/Riing Quad/Riing Trio fans with two controllers by a single 4pin Molex cable.

Powerful and Silent

TOUGHFAN 12 RGB high static pressure fan can perform at a maximum operating speed of up to 2000 RPM,
producing a consistent airflow of 53.75 CFM with 2.4 mm-H2O static pressure and maintaining a low audio noise level of 21.2 dB-A.

Stronger, More Stable, And Longer Lifespan

The TOUGHFAN RGB’s center is constructed with the same full steel motor hub
as any other TOUGHFAN series product, providing enhanced stability and durability.

Quality Comes From The Choice of Materials

To minimize the fans operation noise, the fan blades are constructed using Liquid crystal polymer (LCP),
a high tensile strength and low thermal expansion coefficient material.

Transparent Anti-Vibration Mounting System

To best express the RGB lighting of TOUGHFAN RGB, we especially developed a transparent anti-vibration
rubber pad that can dampen the fan’s vibration, allowing the fan to spin at higher levels without compromising
noise levels to show off RGB lighting at all angles. The rubber pads are designed to cover a large
surface of all corners, maintaining low noise levels when in operation.

P/N – CL-F135-PL12SW-A
FAN DIMENSION – 120 x 120 x 25 mm
INTERFACE – USB 2.0 connectors (9 Pin)
SYSTEM COMPATIBILITY – Windows 10 / 11
FAN STARTED VOLTAGE – 9.0 V
FAN RATED VOLTAGE – 12 V , 5V
RATED CURRENT – 12V- 0.14A , 5V- 0.88A (Fan*1)
POWER INPUT – 12V – 1.68 W , 5V- 4.4 W (Fan*1)
FAN SPEED – 500 ~ 2000 R.P.M
MAX. AIR PRESSURE – 2.4 mm-H2O (Fan*1)
MAX AIR FLOW – 53.75 CFM
NOISE LEVEL – 21.2 dB-A
BEARING TYPE – Hydraulic Bearing Gen.2
LIFE EXPECTATION – 50,000 hrs,25℃
