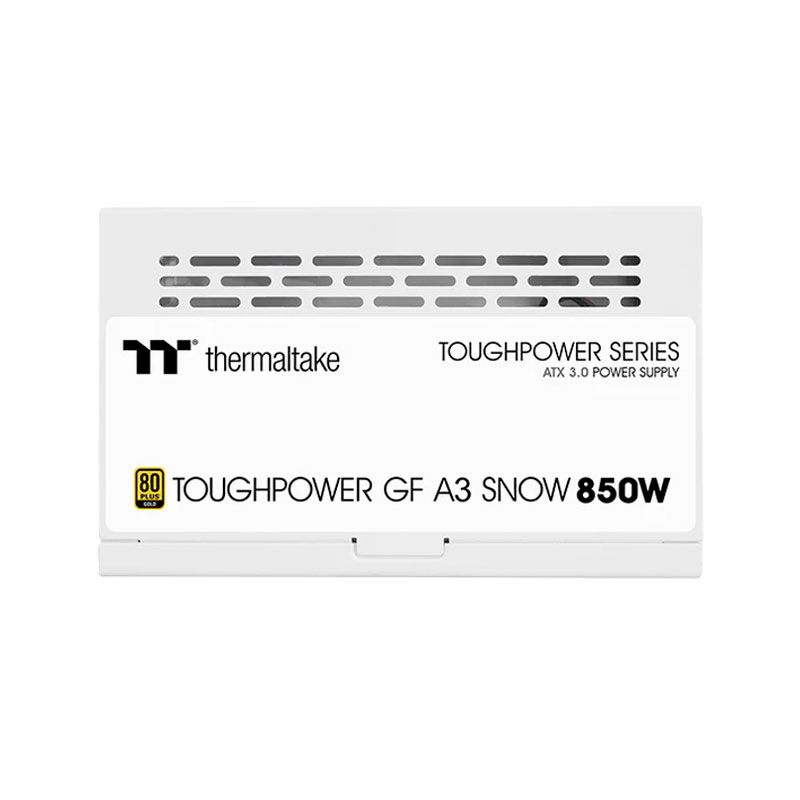

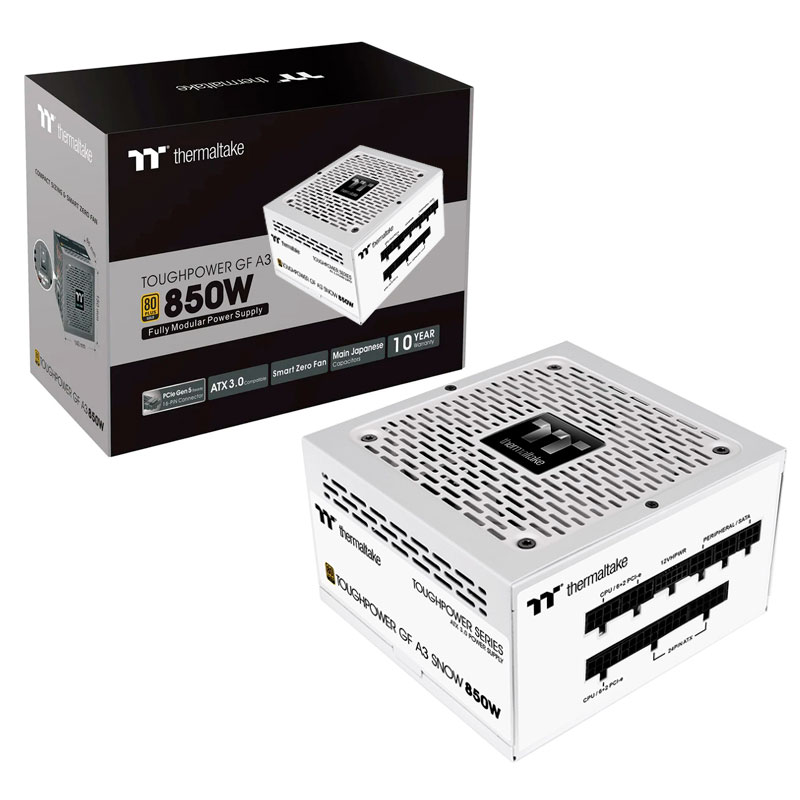

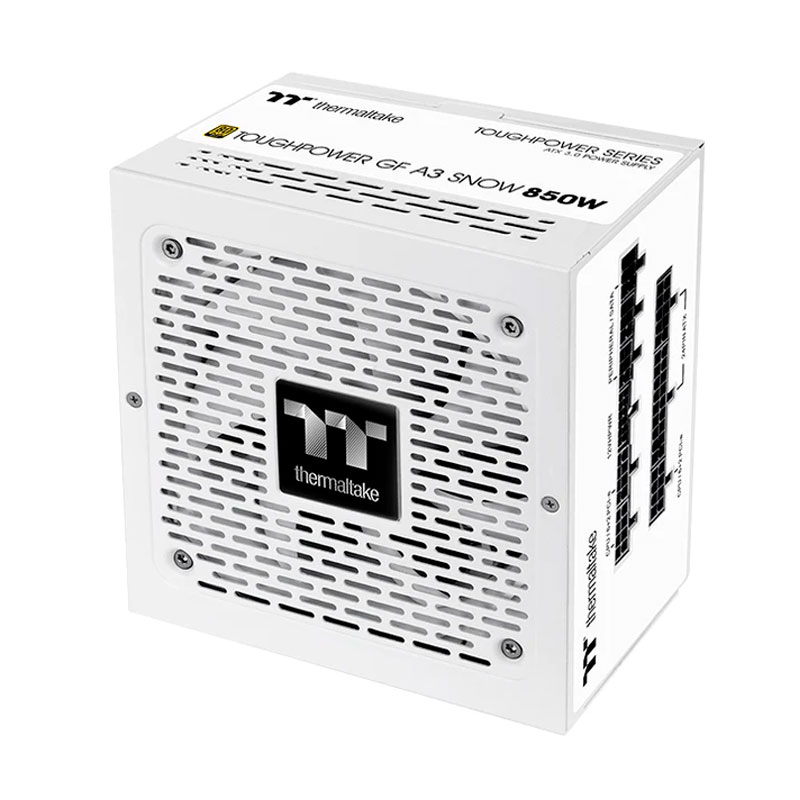

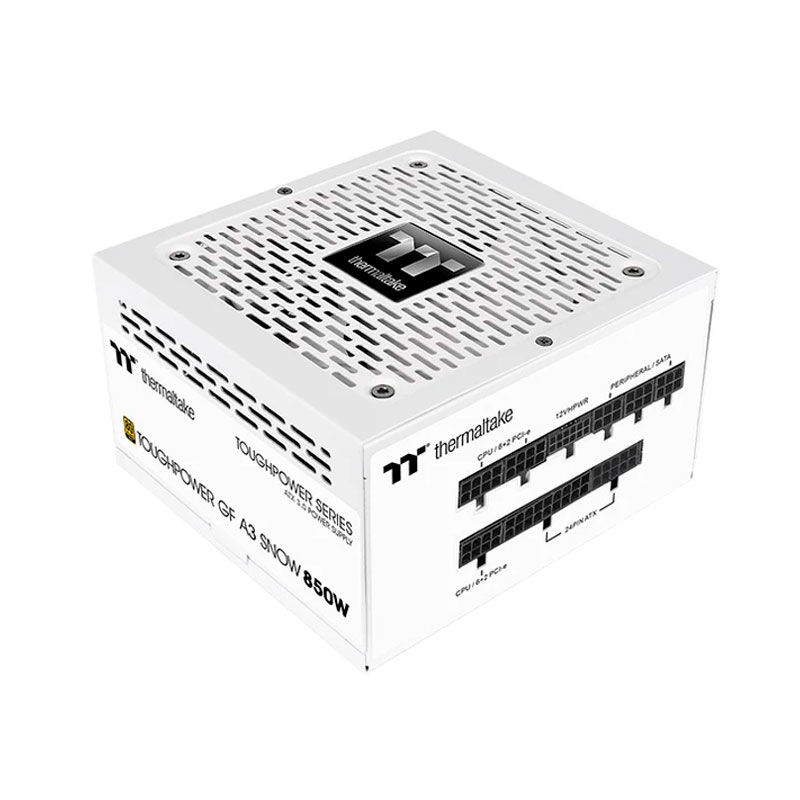

Thermaltake GF A3 Snow 850W Gold 80 Plus PCIe 5 Fully Modular

ATX 3.0 & PCIe Gen 5.0 Ready

Power Up the Next Generation Hardware

To fully support next-gen hardware, Toughpower GF A3 Snow Series (850W/1050W) is designed to meet ATX 3.0 standards,
including a PCIe Gen 5.0 12VHPWR connector. The GF A3 Gold series delivers 80 PLUS Gold efficiency, it also offers stability,
durability, and reliability. For users who crave for a pure white build, this power supply can definitely meet their demands.

Fully Compatible with Intel ATX 3.0 Standards

Toughpower GF A3 Snow Gold series is fully compatible with Intel ATX 3.0
Specifications which supports up to 200% power excursion, reaches 60% low load efficiency
and complies with required power supply timing standards.

PCIe Gen 5.0 Ready

Toughpower GF A3 Snow series comes with a 12+4pin connector to offer powerful
and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the 12VHPWR’s connector is the recommended wattage.
(Ref. Intel design guideline) The native 12+4pin (12VHPWR) PCIe connector of the
GF A3 Snow 850W can deliver up to 450W for PCIe 5.0 graphics cards.

Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the 12VHPWR cable.

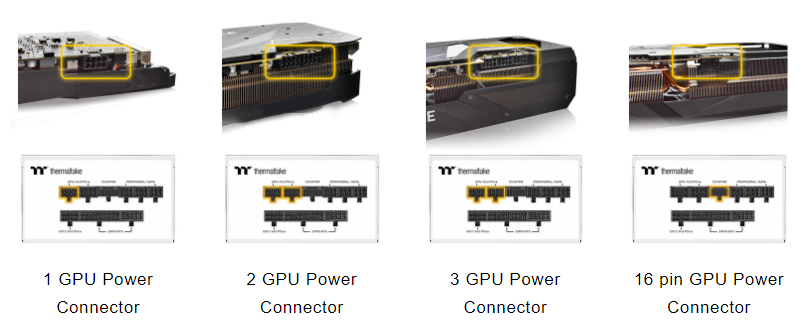

Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards increase, so has their demand for power.
The GF A3 Snow series is designed to support NVIDIA and AMD graphics cards,
it supports 8-pin PCIe cables for AMD graphics cards & entry RTX 40 series graphics cards,
it also comes with a 1 x 12+4pin connector for RTX 40 series cards that need a PCIe Gen 5.0 connector.
The GF A3 Snow series ready to supply the graphics cards according to their different ways of connections.

Be Smart, Stay Quiet

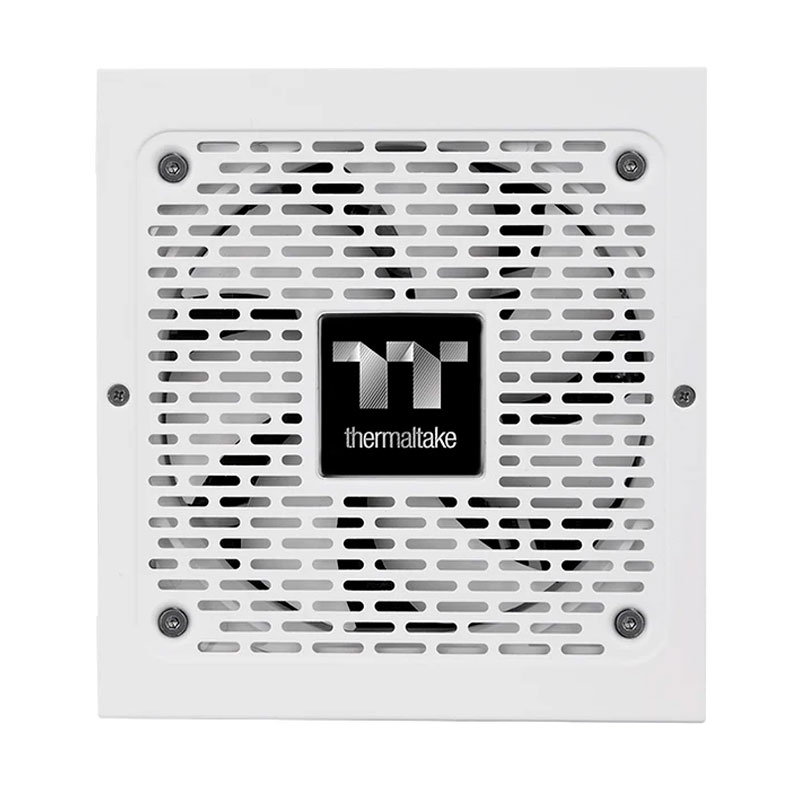

Features a 120mm fluid bearing fan to deliver excellent airflow. Furthermore,
the Smart Zero Fan will the fan will not spin until the load exceeds 30% of the power supply, minimizing undesired noise.

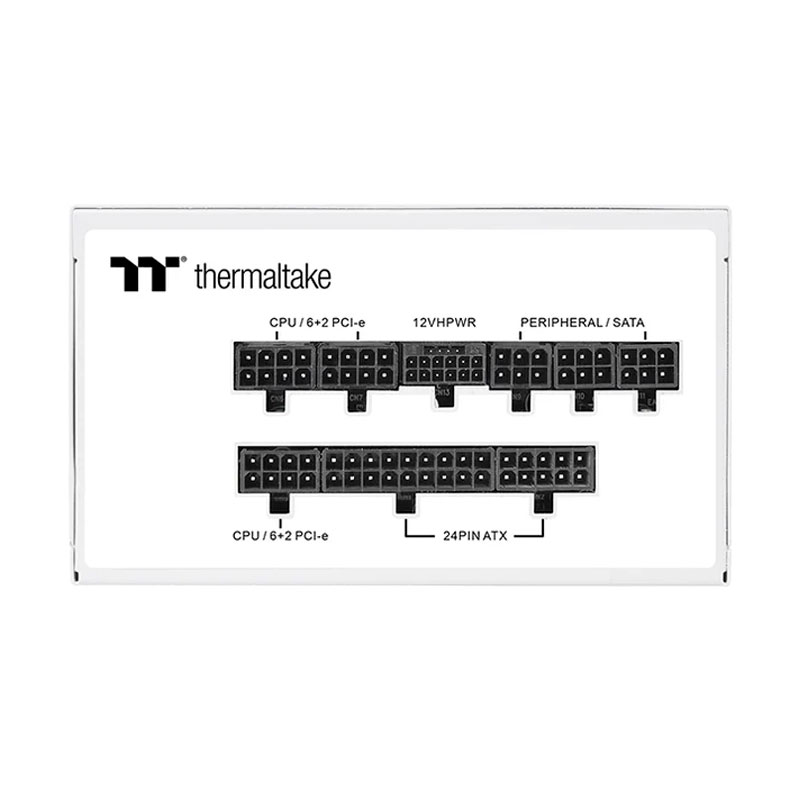

Fully Modular Low-Profile Cables

Offers cable selection for users while powering the system at an advantageous voltage.
Low-profile white cables make cable management easier, reduces clutter and increases airflow inside the chassis.

Built-in industrial grade protection

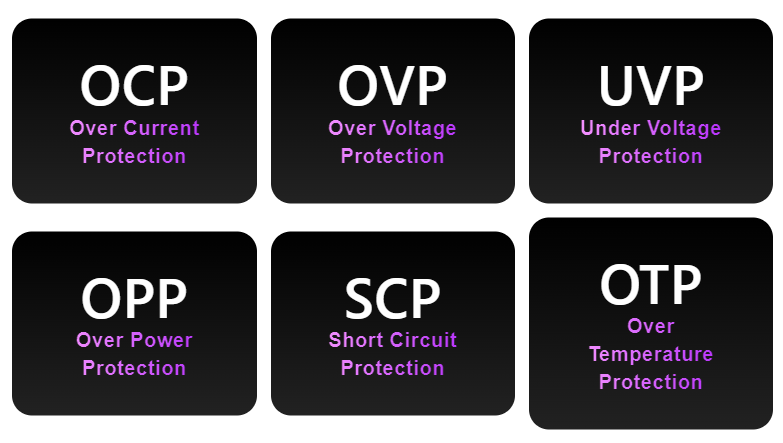

To protect the hardware, the GF A3 Snow is built with industry grade protections:
OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection),
OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

80 PLUS Gold Certified and Lake C6/C7 States Ready

Toughpower GF A3 Snow Gold series saves energy through its high energy efficiency up to 90%
and is certified to 80 PLUS® Gold. It has been optimized to work with all generations
of Intel’s processors to achieve maximum energy savings.

P/N – PS-TPD-0850FNFAGU-N
MODEL – TTP-0850AH2FLG
TYPE – Digital
WATTS – 850W
MAX OUTPUT CAPACITY – 850W
COLOR – White
DIMENSIONS – 150mm(W)x86mm(H)x140mm(D)
PFC (POWER FACTOR CORRECTION) – Active PFC
POWER GOOD SIGNAL – 100-150 msec
HOLD UP TIME – > 17msec
INPUT CURRENT – 15A-8A
INPUT FREQUENCY RANGE – 50Hz/60Hz
INPUT VOLTAGE – 100 – 240Vac
OPERATING TEMPERTURE – 5°C to + 45°C
OPERATING HUMIDITY – 20% to 85%
STORAGE TEMPERTURE – -40°C to + 55°C
STORAGE HUMIDITY – 10% to 95%
COOLING SYSTEM – 12cm FDB Fan
EFFICIENCY – Meet 80 PLUS® Gold at 115Vac input.
MTBF – 100
SAFETY APPROVAL
CE/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC/EAC

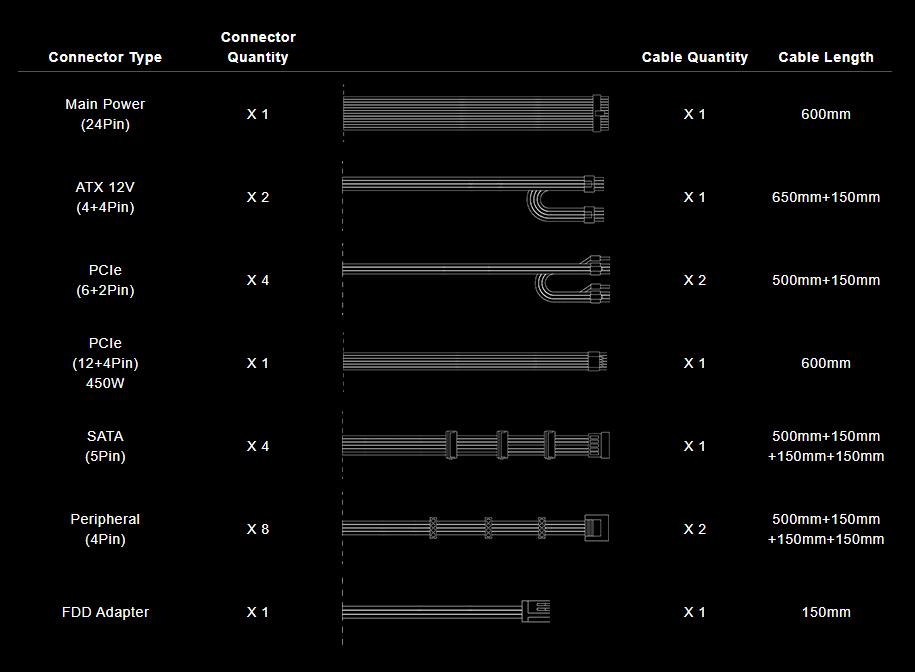

PCI-E 6+2PIN – 4
PCI-E 12+4PIN – 1(450W)
