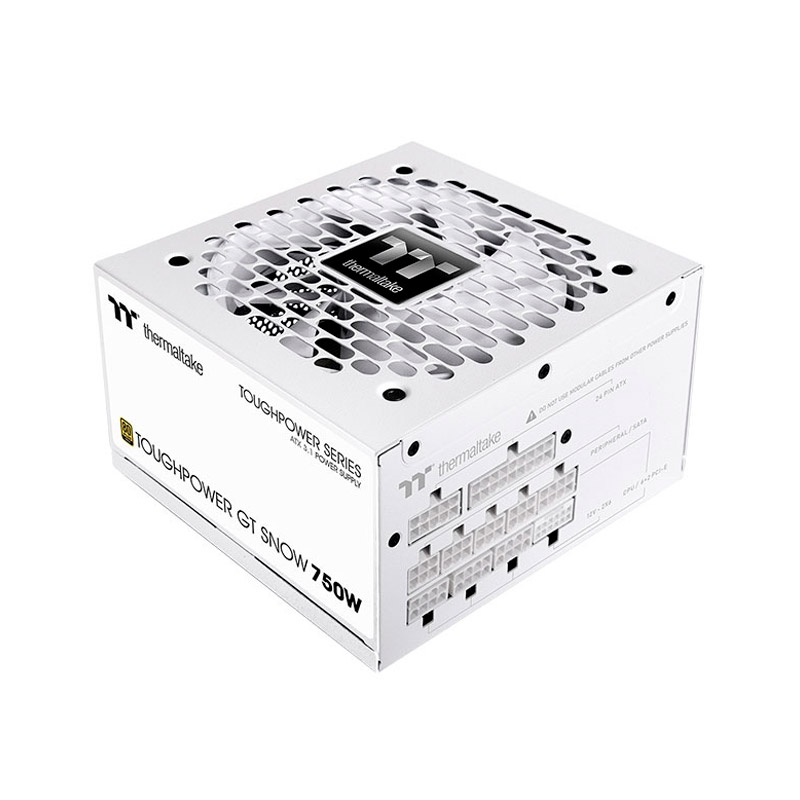

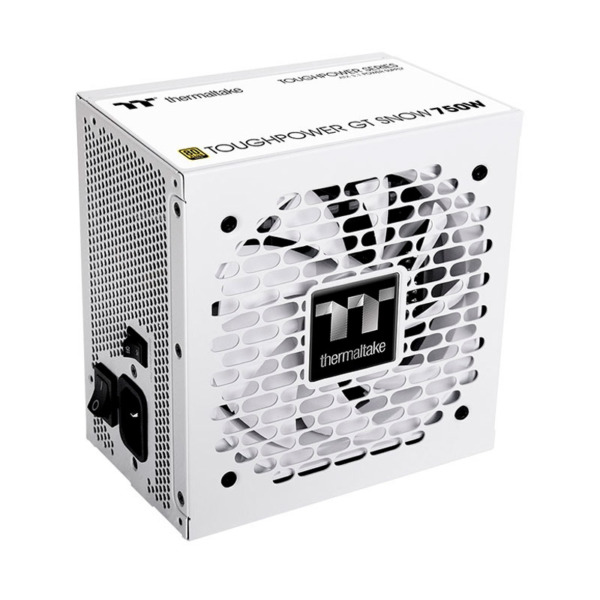

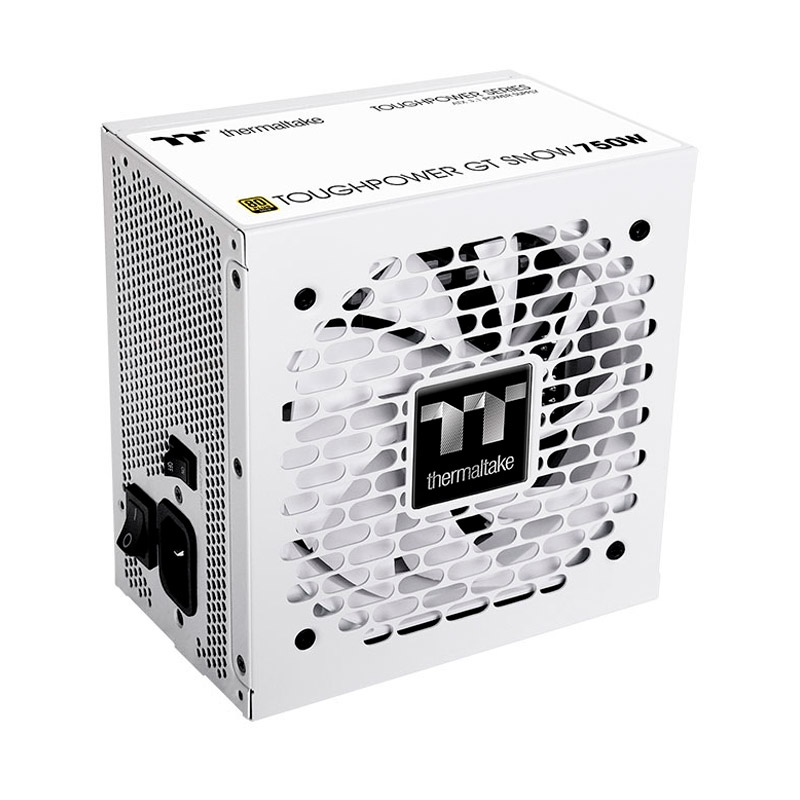

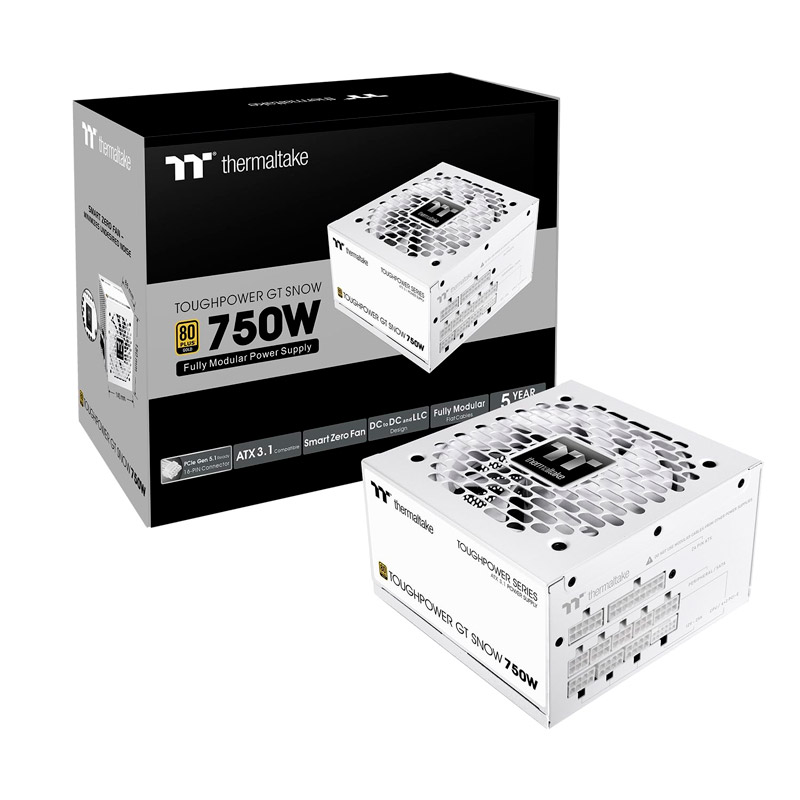

Thermaltake Toughpower GT 750W Snow ATX 3.1 Power Supply
- 80 PLUS Gold Efficiency & ATX 3.1 Compliant: Up to 90% efficiency with ATX 3.1 compliance for reliable power and reduced energy use.
- Fully Modular Design: Low-profile white cables simplify cable management and improve airflow.
- Native PCIe 5.1 Connector: Equipped with 12V-2×6 (12+4 pin) for next-gen GPU compatibility.
- Smart Zero Fan with Quiet Operation: 120mm hydraulic bearing fan with Smart Zero Fan function ensures silent performance at low loads.
- Comprehensive Safety Protections: Includes OCP, OVP, UVP, OPP, OTP, and SCP for system safety.
$118 exc. VAT
Toughpower GT Snow Series
The fully modular Toughpower Snow GT series is designed to deliver 80 PLUS Gold efficiency and is compatible with ATX 3.1 standards.
Its native PCIe 12V-2×6 (12+4 pin) modular interface efficiently powers PCIe 12+4 pin graphics cards.
ATX 3.1 Ready
Toughpower GT Snow series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion,
reaches 60% efficiency at low load and complies with required power supply timing standards.
PCIe Gen 5.1 Ready
Toughpower GT Snow series comes with a PCIe 12V-2×6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline).
The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower GT Snow 750W can deliver up to 600W for PCIe 12+4pin graphics cards.
Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan
Featuring an 120mm Hydraulic Bearing Fan to keep friction at really low level.
Designed with our Smart Zero Fan to adjust the fan speed and minimizes undesired noise.

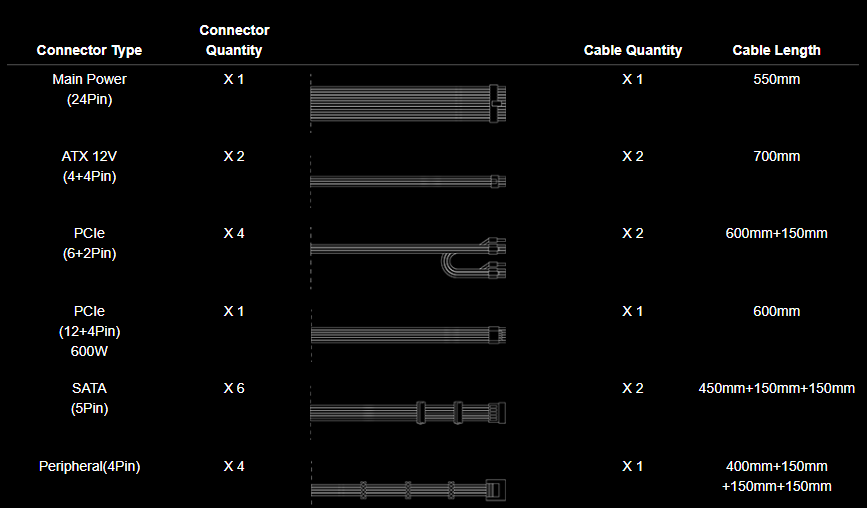

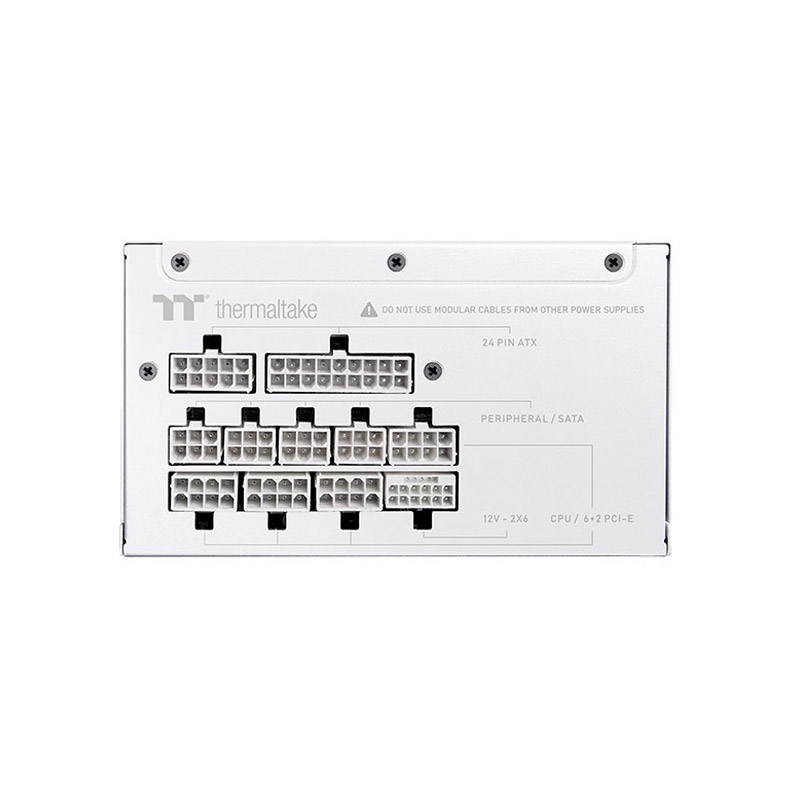

Fully Modular Low-Profile Cables
Offers cable selection for users while powering the system at an advantageous voltage.
Low-profile white cables make cable management easier, reduces clutter and increases airflow inside the chassis.
Built-in Industrial Grade Protection
To protect the hardware, Toughpower GT Snow series is built with industry grade protections: OCP(Over Current Protection),
OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
80 PLUS Gold Certified
Toughpower GT Snow series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold.
| watts | 750W |
|---|---|
| Modelo | TPD-750AH2FXG-3 |
| Max. Output Capacity | 750W |
| Color | Snow |
| Dimension ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 10A Max. |
| Input Frequency Range | 50Hz-60Hz |
| Input Voltage | 100-240V～ |
| Operating Temperature | 0°C to + 40°C |
| Operating Humidity | 5% to 85%,non-condensing |
| Storage Temperature | -40°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| SISTEMA DE REFRIGERACIÓN | 12cm Hydraulic bearing fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK |
| PCI-E 6+2pin | 4 |
| PCIe 12+4pin | 1(600W) |
| Protection | OVP/UVP/OCP/OPP/OTP/SCP |
